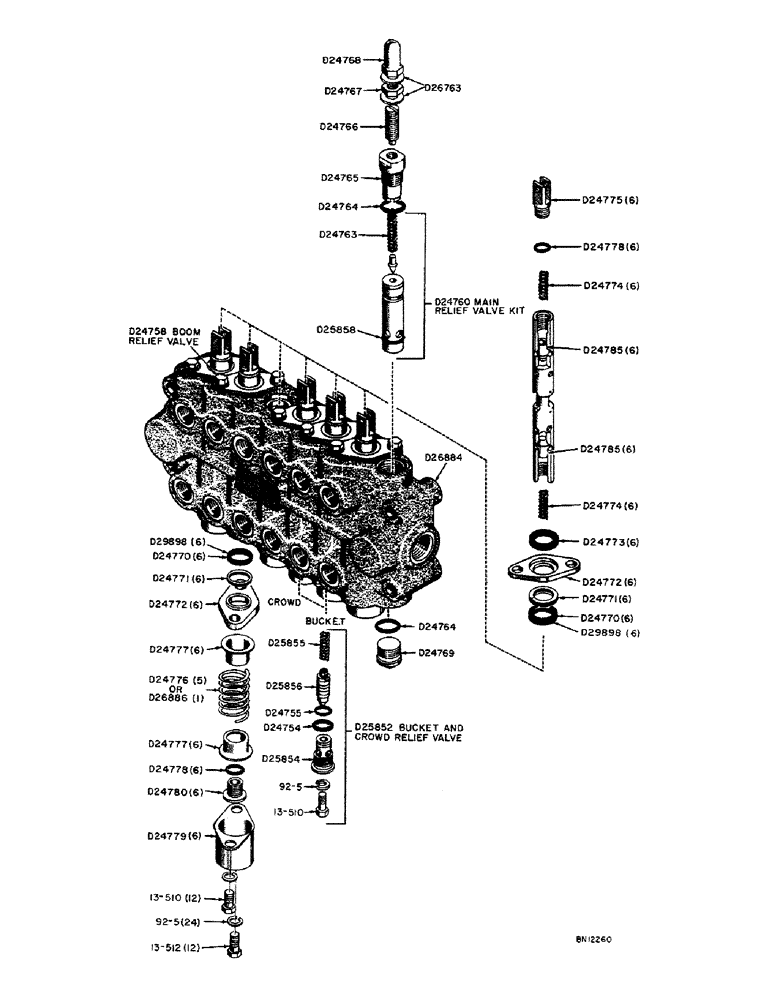

Запчасти Case 21 (56) - D26884 HYDRAULIC CONTROL VALVE
№
Артикул
Название
Примечание
Количество
D26884
VALVE - control, hydraulic (Hydreco V33DDDDDD19), D26884
1шт.
D24754
GASKET
SEAL - "O" ring, outer, D25852 secondary relief valve bucket and crowd cylinders
1шт.
D24755
X
SEAL - "O" ring, inner, D25852 secondary relief valve bucket and crowd cylinders
1шт.
D25852
VALVE - relief, complete, D25852 secondary bucket and crowd cylinders
2шт.
D25854
SEAT - relief valve, D25852 secondary bucket and crowd cylinders
1шт.
5/16" - 18 NC x 5/8" hex. head cap screw (13-510), D25852 secondary relief valve bucket and crowd cylinders
1шт.
5/16" lockwasher (92-5), D25852 secondary relief valve bucket and crowd cylinders
1шт.
D25855
SPRING - relief valve, D25852 secondary bucket and crowd cylinders
1шт.
D25856
CARTRIDGE - relief valve (Preset at factory - 2500 P. S. I.) color code - green, D25852 secondary bucket and crowd cylinders
1шт.
D24754
GASKET
SEAL - "O" ring, outer, D24758 relief valve assembly boom cylinder
1шт.
D24755
X
SEAL - "O" ring, inner, D24758 relief valve assembly boom cylinder
1шт.
D24758
VALVE - relief valve (Preset at factory - 1800 P. S. I.) color code - blue, D24758 assembly, boom cylinder
1шт.
D25854
SEAT - relief valve, D24758 assembly, boom cylinder
1шт.
5/16" - 18 NC x 5/8" hex. head cap screw (13-510), D24578 relief valve assembly boom cylinder
1шт.
5/16" lockwasher (92-5), D24758 relief valve assembly boom cylinder
1шт.
D25855
SPRING - relief valve, D24758 assembly, boom cylinder
1шт.
D24760
KIT - main relief valve, parts
1шт.
D24763
SPRING
- main relief valve, parts
1шт.
D24764
SNAP RING
SEAL - "o" ring, main relief valve and plug, parts
2шт.
D24765
CAP - main relief valve, parts
1шт.
D24765
CAP - main relief valve
1шт.
D24765
CAP - main relief valve
1шт.
D24766
SCREW - adjusting, main relief valve, parts
1шт.
D24767
X
NUT - jam, adjusting screw, parts
1шт.
D24768
NUT - acorn, adjusting screw cap, parts for main relief valve
1шт.
D24769
PLUG - relief valve, bottom, parts
1шт.
D25858
O-RING
SEAL - "O" ring, relief valve seat, parts
1шт.
D26763
WASHER
GASKET - jam nut, parts for main relief valve
2шт.
D24770
RING
- vee block (Use D29898), parts for spools
12шт.
D24771
RING
- backup (If used), parts for spools
12шт.
D24772
RETAINING - plate, parts for spools
12шт.
5/16" - 18 NC x 5/8" hex. head cap screw (13-510), parts for spools
12шт.
5/16" - 18 NC x 3/4" hex. head cap screw (13-512), parts for spools
12шт.
5/16" lockwasher (92-5), parts for spools
24шт.
D24773
SEAL
- wiper, parts for spools
6шт.
D24774
SPRING
- poppet, parts for spools
12шт.
D24775
EYE - spool, parts
6шт.
D24776
VALVE SPRING
SPRING - spool return (All spools except swing cylinder spool - see D26886), parts
5шт.
D24777
COLLAR
RETAINER - spring, parts for spools
12шт.
D24778
X
SEAL - "O" ring, spool and cap, parts
12шт.
D24779
COVER
CAP - spool spring, parts
6шт.
D24780
PLUG
CAP - spool, bottom, parts
6шт.
D24785
VALVE
POPPET - spool, parts
12шт.
D26886
SPRING - spool return, swing spool (See D24776), parts
1шт.
D29898
RING
- quad, parts for spools
12шт.
Выбрано товаров: 45
