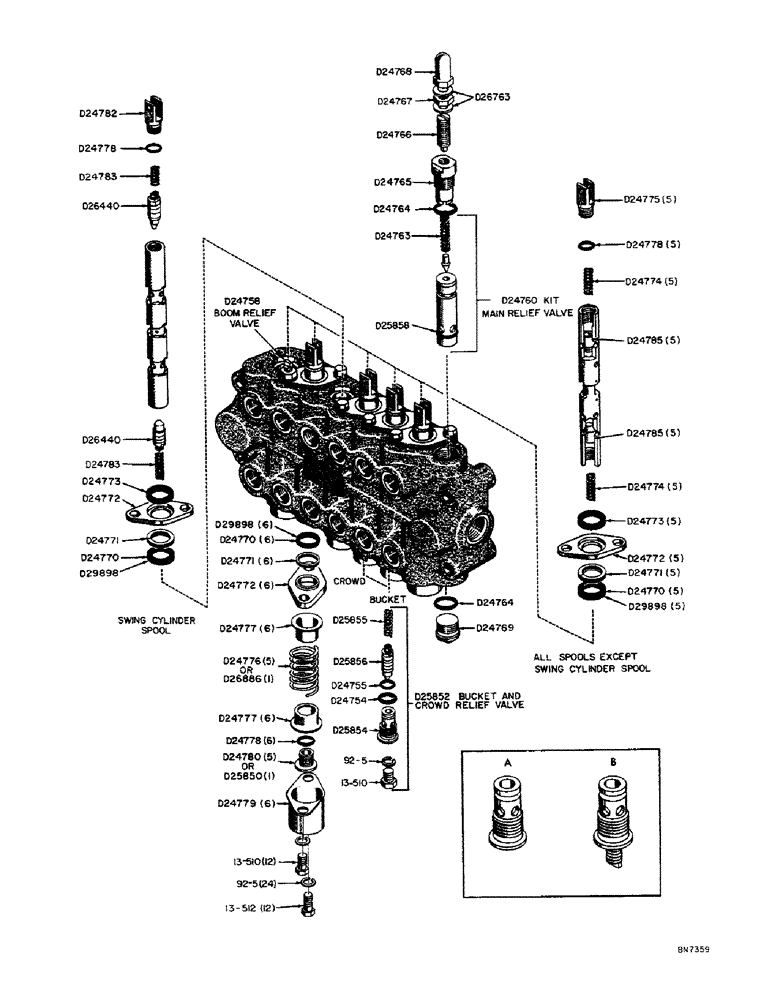

Запчасти Case 21 (50) - D23059 HYDRAULIC CONTROL VALVE
№
Артикул
Название
Примечание
Количество
D23059
VALVE - control, hydraulic (Hydreco V33DDDDDD10)
1шт.
When replacing complete D23059 valve, use D26884 valve and D26761 cross-over relief valve. See instruction sheet vurl. Form 9-70151.
1шт.
D24754
GASKET
"O" RING - seal, outer, secondary relief valve-bucket and crowd cylinders D25852 (type "A" seat- late production)
1шт.
D24755
X
"O" RING - seal, inner, secondary relief valve-bucket and crowd cylinders D25852 (type "A" seat-late production)
1шт.
D25852
VALVE - relief (Complete), secondary-bucket and crowd cylinders D25852 (type "A" seat-late production)
2шт.
D25854
SEAT - relief valve, secondary relief valve-bucket and crowd cylinders D25852 (type "A" seat-late production)
1шт.
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
Secondary relief valve-bucket and crowd cylinders D25852 (type "A" seat-late production) Hex, 5/16"-18 x 5/8", G5, Full Thd
1шт.
92-5
LOCK WASHER,5/16"
secondary relief valve-bucket and crowd cylinders D25852 (type "A" seat-late production) 5/16"
1шт.
D25855
SPRING - relief valve, secondary-bucket and crowd cylinders D25852 (type "A" seat-late production)
1шт.
D25856
CARTRIDGE - relief valve (Present at factory - 2500 P. S. I.) color code - green, secondary-bucket and crowd cylinders D25852 (type "A" seat-late production)
1шт.
D24752
VALVE - relief (Complete) Use D25852, D24752 (type "B" seat-early production) not shown
2шт.
D24753
SEAT - relief valve (Use D25854 and 13-510), D24752 (type "B" seat-early production) not shown
1шт.
9635082
NUT,5/16" - 18, Gr 5
5/16" - 18 NC hex. nut, D24752 (type "B" seat-early production) not shown
1шт.
92-5
LOCK WASHER,5/16"
D24752 (type "B" seat-early production) not shown 5/16"
1шт.
D24754
GASKET
"O" RING - seal, outer, D24752 (type "B" seat-early production) not shown
1шт.
D24755
X
"O" RING - seal, inner, D24752 (type "B" seat-early production) not shown
1шт.
D24756
CARTRIDGE - relief valve (Present at factory - 2500 P. S. I.) color code - green (Use D25856), D24752 (type "B" seat-early production) not shown
1шт.
D24757
SPRING - relief valve (Use D25855), D24752 (type "B" seat-early production) not shown
1шт.
D24753
SEAT - relief valve (Type "B") Use D25854 and 13-510, D24758 assembly-boom cylinder
1шт.
9635082
NUT,5/16" - 18, Gr 5
5/16" - 18 NC hex. nut, D24758 relief valve assembly-boom cylinder
1шт.
92-5
LOCK WASHER,5/16"
D24758 relief valve assembly-boom cylinder 5/16"
1шт.
D24754
GASKET
"O" RING - seal, outer, D24758 relief valve assembly-beem cylinder
1шт.
D24755
X
"O" RING - seal, inner, D24758 relief valve assembly-boom cylinder
1шт.
D24757
SPRING - relief valve (Use D25855), D24758 assembly-boom cylinder
1шт.
D24758
VALVE - relief (Complete), D24758 assembly-boom cylinder
1шт.
D24759
CARTRIDGE - relief valve (Preset at factory - 1800 P. S. I.) color code - blue, D24758 assembly-boom cylinder
1шт.
D25854
SEAT - relief valve (Type "A"), D24758 assembly-boom cylinder
1шт.
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
D24758 relief valve assembly-boom cylinder Hex, 5/16"-18 x 5/8", G5, Full Thd
1шт.
92-5
LOCK WASHER,5/16"
D24758 relief valve assembly-boom cylinder 5/16"
1шт.
D25855
SPRING - relief valve, D24758 assembly-boom cylinder
1шт.
D24760
KIT - main relief valve, parts for
1шт.
D24763
SPRING
- main relief valve, parts for
1шт.
D24764
SNAP RING
"O" RING - seal, main relief valve and plug, parts for
2шт.
D24765
CAP - main relief valve, parts for
1шт.
D24766
SCREW - adjusting, main relief valve, parts for
1шт.
D24767
X
NUT - jam, adjusting screw, parts for main relief valve
1шт.
D24768
CAP - dust, adjusting screw, parts for main relief valve
1шт.
D24769
PLUG - relief valve, bottom, parts for main
1шт.
D25858
O-RING
"O" RING - seal, relief valve seat, parts for main
1шт.
D26763
WASHER
GASKET - jam nut, parts for main relief valve
2шт.
D24770
RING
- vee block (Use D29898), parts for stabilizer, boom, dipper arm, and bucket cylinder spools
10шт.
D24771
RING
- backup (If used), parts for stabilizer, boom, dipper arm, and bucket cylinder spools
10шт.
D24772
PLATE - retaining, upper and lower, parts for stabilizer, boom, dipper arm, and bucket cylinder spools
10шт.
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
Parts for stabilizer, boom, dipper arm, and bucket cylinder spools Hex, 5/16"-18 x 5/8", G5, Full Thd
10шт.
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Parts for stabilizer, boom, dipper arm, and bucket cylinder spools Hex, 5/16"-18 x 3/4", G5, Full Thd
10шт.
92-5
LOCK WASHER,5/16"
parts for stabilizer, boom, dipper arm, and bucket cylinder spools 5/16"
20шт.
D24773
SEAL
- wiper, parts for stabilizer, boom, dipper arm, and bucket cylinder spools
5шт.
D24774
SPRING
- poppet, parts for stabilizer, boom, dipper arm, and bucket cylinder spools
10шт.
D24775
EYE - spool, parts for stabilizer, boom, dipper arm, and bucket cylinder
5шт.
D24776
VALVE SPRING
SPRING - spool return, parts for stabilizer, boom, dipper arm, and bucket cylinder spools
5шт.
D24777
COLLAR
RETAINER - spring, parts for stabilizer, boom, dipper arm, and bucket cylinder spools
10шт.
D24777
COLLAR
RETAINER - spring
10шт.
RETAINER - spring
1шт.
D24777
COLLAR
RETAINER - spring
10шт.
RETAINER - spring
1шт.
D24777
COLLAR
RETAINER - spring
10шт.
D24778
X
"O" RING - seal, spool and cap, parts for stabilizer, boom, dipper arm, and bucket cylinder
10шт.
D24779
COVER
- spool spring, parts for stabilizer, boom, dipper arm, and bucket cylinder
5шт.
D24780
PLUG
CAP - spool, bottom, parts for stabilizer, boom, dipper arm, and bucket cylinder
5шт.
D24785
VALVE
POPPET - spool, parts for stabilizer, boom, dipper arm, and bucket cylinder
10шт.
D29898
RING
- quad, parts for stabilizer, boom, dipper arm, and bucket cylinder
10шт.
D24770
RING
- vee block (Use D29898), parts for swing cylinder spool
2шт.
D24771
RING
- backup (If used), parts for swing cylinder spool
2шт.
D24772
PLATE - retaining, upper and lower, parts for swing cylinder spool
2шт.
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
Head cap screw, parts for swing cylinder spool Hex, 5/16"-18 x 5/8", G5, Full Thd
2шт.
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Parts for swing cylinder spool Hex, 5/16"-18 x 3/4", G5, Full Thd
2шт.
92-5
LOCK WASHER,5/16"
(92-5), parts for swing cylinder spool 5/16"
4шт.
D24773
SEAL
- wiper, parts for swing cylinder spool
1шт.
D24776
VALVE SPRING
SPRING - spool return (Use D26886), parts for swing cylinder spool
1шт.
D24777
COLLAR
RETAINER - spring, parts for swing cylinder spool
2шт.
D24778
X
"O" RING - seal, spool and cap, parts for swing cylinder spool
2шт.
D24779
COVER
- spool spring, parts for swing cylinder spool
1шт.
D24781
CAP - spool, bottom (Removed with screw driver socket) Use D25850, parts for swing cylinder
1шт.
D24782
EYE - spool, parts for swing cylinder
1шт.
D24783
SPRING - relief cartridge, parts for swing cylinder spool
2шт.
D24784
X
CARTRIDGE - relief valve (Preset at factory - 1100 P. S. I.) Color code - yellow (Use D26440), parts for swing cylinder spool
2шт.
D25850
CAP - spool, bottom (Removed with Allen wrench), parts for swing cylinder spool
1шт.
D26440
CARTRIDGE
- relief valve (Preset at factory - 1300 P. S. I.) color code - brown, parts for swing cylinder spool
2шт.
D26886
SPRING - spool return, parts for swing cylinder
1шт.
D29898
RING
- quad, parts for swing cylinder spool
2шт.
Выбрано товаров: 80
