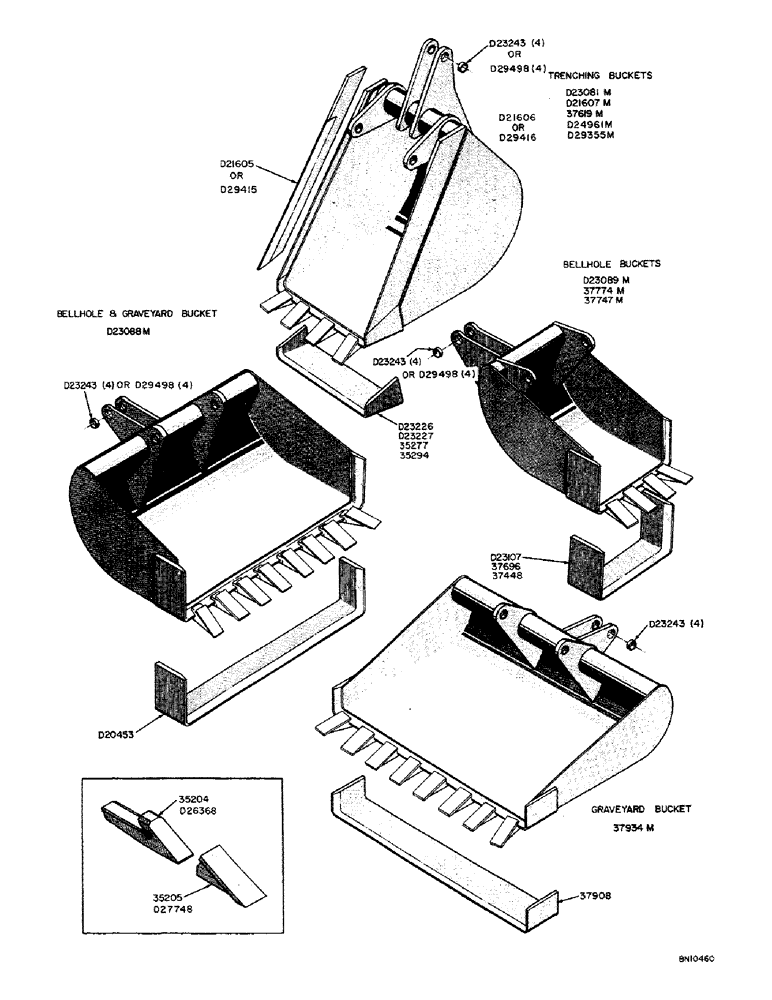

Запчасти Case 21 (16) - BACKHOE BUCKETS (OPTIONAL EQUIPMENT) TRENCHING BUCKETS (MACHINERY ITEMS)

D29355M

BUCKET - backhoe, trenching (12") includes teeth and bushings

1шт.

D23227

EDGE

BLADE - cutting, center section

1шт.

D23243

BUSHING

- 1-1/2" O.D. (See D29498)

4шт.

D26368

SUPPORT

SHANK - tooth

3шт.

D27748

TOOTH

POINT - tooth

3шт.

D29415

BLADE - cutting, R.H. section

1шт.

D29416

BLADE - cutting, L.H. section

1шт.

D29498

BUSHING

- 1-5/8" O.D. (See D23243)

4шт.

D23081M

BUCKET - backhoe, trenching (18") includes teeth and bushings

1шт.

35204

SHANK - tooth (Use D26368)

4шт.

35205

X

SHANK - tooth (Use D27748)

4шт.

D21605

EDGE, CUTTING

BLADE - cutting, R.H. section

1шт.

D21606

EDGE, CUTTING

BLADE - cutting, L.H. section

1шт.

D23226

BLADE - cutting, center section

1шт.

D23243

BUSHING

- 1-1/2" O.D. (See D29498)

4шт.

D26368

SUPPORT

SHANK - tooth

4шт.

D27748

TOOTH

POINT - tooth

4шт.

D29498

BUSHING

- 1-5/8" O.D. (See D23243)

4шт.

D21607M

BUCKET - backhoe, trenching (24") includes teeth and bushings

1шт.

D26268

SPRING

SHANK - tooth (Use D26368)

5шт.

35205

X

POINT - tooth (Use D27748)

5шт.

35277

KNIFE

BLADE - cutting, center section

1шт.

D21605

EDGE, CUTTING

BLADE - cutting, R.H. section

1шт.

D21606

EDGE, CUTTING

BLADE - cutting, L.H. section

1шт.

D23243

BUSHING

- 1-1/2" O.D. (See D29498)

4шт.

D26368

SUPPORT

SHANK - tooth

5шт.

D27748

TOOTH

POINT - tooth

5шт.

D29498

BUSHING

- 1-5/8" O.D. (See D23243)

4шт.

37619M

BUCKET - backhoe, trenching (30") includes teeth and bushing (Use D24961M)

1шт.

35204

SHANK - tooth (Use D26368)

6шт.

35205

X

POINT - tooth (Use D27748)

6шт.

35294

BLADE - cutting, center section

1шт.

D21605

EDGE, CUTTING

BLADE - cutting, R.H. section

1шт.

D21606

EDGE, CUTTING

BLADE - cutting, L.H. section

1шт.

D23243

BUSHING

- bucket (If used)

4шт.

D26368

SUPPORT

SHANK - tooth

6шт.

D27748

TOOTH

POINT - tooth

6шт.

D24961M

BUCKET - backhoe, trenching (30") includes teeth and bushings

1шт.

35294

BLADE - cutting, center section

1шт.

D21605

EDGE, CUTTING

BLADE - cutting, R.H. section

1шт.

D21606

EDGE, CUTTING

BLADE - cutting, L.H. section

1шт.

D23243

BUSHING

- 1-1/2" O.D. (See D29498)

4шт.

D26368

SUPPORT

SHANK - tooth

6шт.

D27748

TOOTH

POINT - tooth

6шт.

D29498

BUSHING

- 1-5/8" O.D. (See D23243)

4шт.

D23089

BUCKET - backhoe, bellhole (12") includes teeth and bushings

1шт.

D26268

SPRING

SHANK - tooth (Use D26368)

3шт.

35205

X

POINT - tooth (Use D27748)

3шт.

D23107

BLADE - cutting

1шт.

D23243

BUSHING

- 1-1/2" O.D. (See D29498)

4шт.

D26368

SUPPORT

SHANK - tooth

3шт.

D27748

TOOTH

POINT - tooth

3шт.

D29498

BUSHING

- 1-5/8" O.D. (See D23243)

4шт.

37774M

BUCKET - backhoe, bellhole (16") includes teeth and bushings

1шт.

35204

SHANK - tooth (Use D26368)

4шт.

35205

X

POINT - tooth (Use D27748)

4шт.

37696

BLADE - cutting

1шт.

D23243

BUSHING

- 1-1/2" O.D. (See D29498) If used

4шт.

D26368

SUPPORT

SHANK - tooth

4шт.

D27748

TOOTH

POINT - tooth

4шт.

D29498

BUSHING

- 1-5/8" O.D. (See D23243)

4шт.

37747M

BUCKET - backhoe, bellhole (30") includes teeth and bushings

1шт.

D26268

SPRING

SHANK - tooth (Use D26368)

6шт.

35205

X

POINT - tooth (Use D27748)

6шт.

37448

BLADE - cutting

1шт.

D23243

BUSHING

- 1-1/2" O.D. (See D23243) If used

4шт.

D26368

SUPPORT

SHANK - tooth

6шт.

D27748

TOOTH

POINT - tooth

6шт.

D29498

BUSHING

- 1-5/8" O.D. (See D23243)

4шт.

D23088M

BUCKET - backhoe, combination bellhole and graveyard (36") includes teeth and bushings

1шт.

35204

SHANK - tooth (Use D26368), combination bellhole and graveyard bucket (machinery item

8шт.

35205

X

POINT - tooth(Use D27748), combination bellhole and graveyard bucket (machinery item)

8шт.

D20453

BLADE - cutting, combination bellhole and grave yard bucket (machinery item)

1шт.

D23243

BUSHING

- 1-1/2" O.D. (See D29498), combination bellhole and graveyard bucket (machinery item)

4шт.

D26368

SUPPORT

SHANK - tooth, combination bellhole and graveyard bucket (machinery item)

8шт.

D27748

TOOTH

POINT - tooth, combination bellhole and graveyard bucket (machinery item)

8шт.

D29498

BUSHING

- 1-5/8" O.D. (See D23243), combination bellhole and graveyard bucket (machinery item)

4шт.

37934M

BUCKET - backhoe, graveyard (38") includes teeth and bushings (machinery item)

1шт.

D26268

SPRING

SHANK - tooth (Use D26368), graveyard bucket (machinery item)

8шт.

35205

X

POINT - tooth (Use D27748), graveyard bucket (machinery item)

8шт.

37908

BLADE - cutting, graveyard bucket (machinery item)

1шт.

D23243

BUSHING

- bucket (If used) graveyard (machinery item)

4шт.

D26368

SUPPORT

SHANK - tooth (graveyard bucket (machinery item)

8шт.

D27748

TOOTH

POINT - tooth (graveyard bucket (machinery item)

8шт.
