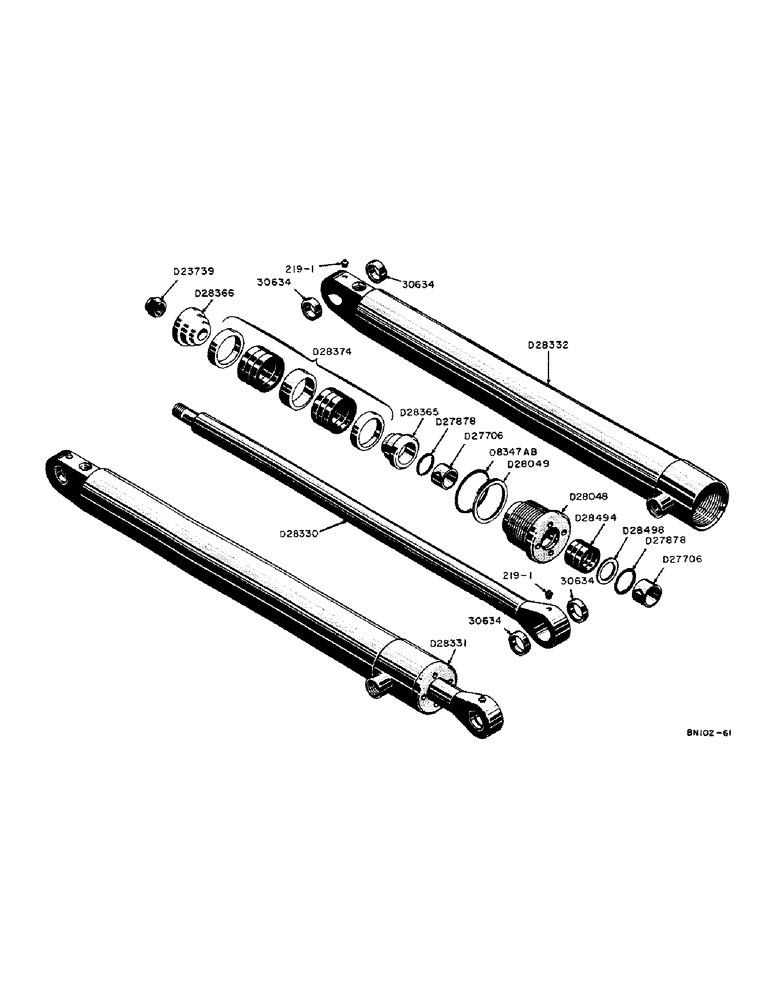

Запчасти Case 21 (48) - D28331 HYDRAULIC BUCKET CYLINDER

O8347AB

X

SEAL - "O" ring, gland seal

1шт.

Part of service kit hydraulic cylinder P/N D30129

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod eye and cylinder end

4шт.

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.

Part of service kit hydraulic cylinder P/N D30129

1шт.

D27706

WIPER SEAL

WIPER - piston rod

2шт.

Part of service kit hydraulic cylinder P/N D30129

1шт.

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper

2шт.

Part of service kit hydraulic cylinder P/N D30129

1шт.

D28048

GLAND

- packing

1шт.

D28049

RING

- backup, gland seal

1шт.

Part of service kit hydraulic cylinder P/N D30129

1шт.

D28330

ROD - piston (Includes 2 - 30634 bushing) 1-1/2" dia.

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8" NPT straight grease fitting

1шт.

D28331

CYLINDER ASSY.

CYLINDER - bucket, hydraulic (Complete) 3" dia. x 26-5/8" stroke

1шт.

D28332

TUBE - cylinder (Includes 2 - 30634 bushings)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8" NPT straight grease fitting

1шт.

D28365

PISTON

- split, gland end half

1шт.

D28366

PISTON

- split, closed end half

1шт.

D28374

PACKAGE,SERVICE

KIT - piston packing (Includes chevrons and spacers)

1шт.

Part of service kit hydraulic cylinder P/N D30129

1шт.

D28494

SEAL

- piston rod (In gland)

1шт.

Part of service kit hydraulic cylinder P/N D30129

1шт.

D28498

RING

- backup, rod seal

1шт.

Part of service kit hydraulic cylinder P/N D30129

1шт.

D30129

X

KIT - service, hydraulic cylinder, Includes P/N's 08347AB, D23739, D27706, D27878, D28049, D28374, D28494, D28498

1шт.
