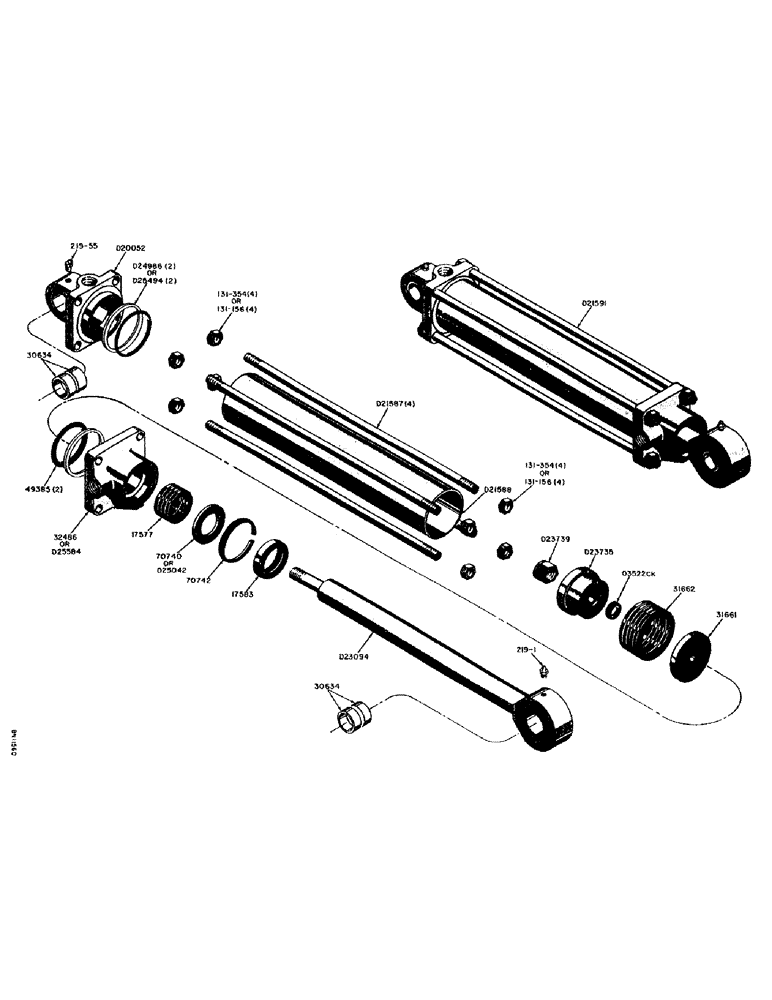

Запчасти Case 21 (46) - D21591 HYDRAULIC CROWD CYLINDER

O3522CK

X

SEAL - "O" ring, D23735 piston

1шт.

Part of service kit order hydraulic cylinder P/N D30138

1шт.

17577

PACKING

- piston rod

1шт.

Part of service kit order hydraulic cylinder P/N D30138

1шт.

17583

WIPER SEAL

- wiper, piston rod

1шт.

Part of service kit order hydraulic cylinder P/N D30138

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end and piston rod yoke

4шт.

31661

WASHER

- packing, piston

1шт.

31662

PACKING

- piston

1шт.

Part of service kit order hydraulic cylinder P/N D30138

1шт.

31663

X

PISTON - cylinder (Without "O" ring) Use O3522CK, D23735, and D23739 (Not shown)

1шт.

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

3/4" - 16 NF castle nut

1шт.

132-51

COTTER PIN,1/8" x 1 3/8"

3/16" x 5/8" cotter pin

1шт.

32486

RATCHET

CAP - end cylinder (Has no. 32486 on casting) See D25584 and D25042

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24986 leather backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring, cylinder tube

2шт.

70740

WASHER

- packing, piston rod (32486 end cap) See D25042

1шт.

Part of service kit order hydraulic cylinder P/N D30138

1шт.

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

Part of service kit order hydraulic cylinder P/N D30138

1шт.

D20052

END - cylinder (Includes 2 - 30634 bushings)

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24986 leather backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

D21587

ROD - tie

4шт.

230-4618

LOCK NUT,1/2"-20, GA

1/2" - 20 NF hex. locknut (Tie rods with NF threads)

8шт.

131-354

LOCK NUT,1/2"-13, GA

1/2" - 13 NC hex. locknut (Tie rods with NC threads)

8шт.

D21588

TUBE - cylinder

1шт.

D21591

CYLINDER - bucket, hydraulic (Complete) 3" dia. x 26-5/8" stroke

1шт.

D23094

ROD - piston (Includes 2 - 30634 bushings) 1-1/2" dia.

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8" NPT straight grease fitting

1шт.

D23735

PISTON

- cylinder (Order 1 - O3522CK "o" ring and 1 - D23739 nut when replacing 31663 piston that does not have "O" ring)

1шт.

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.

D24986

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove) See D25494

2шт.

Part of service kit order hydraulic cylinder P/N D30138

1шт.

D25042

WASHER

- packing, piston rod (D25584 end cap) See 70740

1шт.

D25494

RING

- plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove) See D24986

2шт.

D25584

CAP

- end, cylinder (Has no. D25584 on casting) See 32486

1шт.

Part of service kit order hydraulic cylinder P/N D30138

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D24986 leather backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

D30138

KIT

- service order hydraulic cylinder, Includes P/N's 03522CK, 17577, 17583, 31662, 70740, 70742, D24986 and D25584

1шт.
