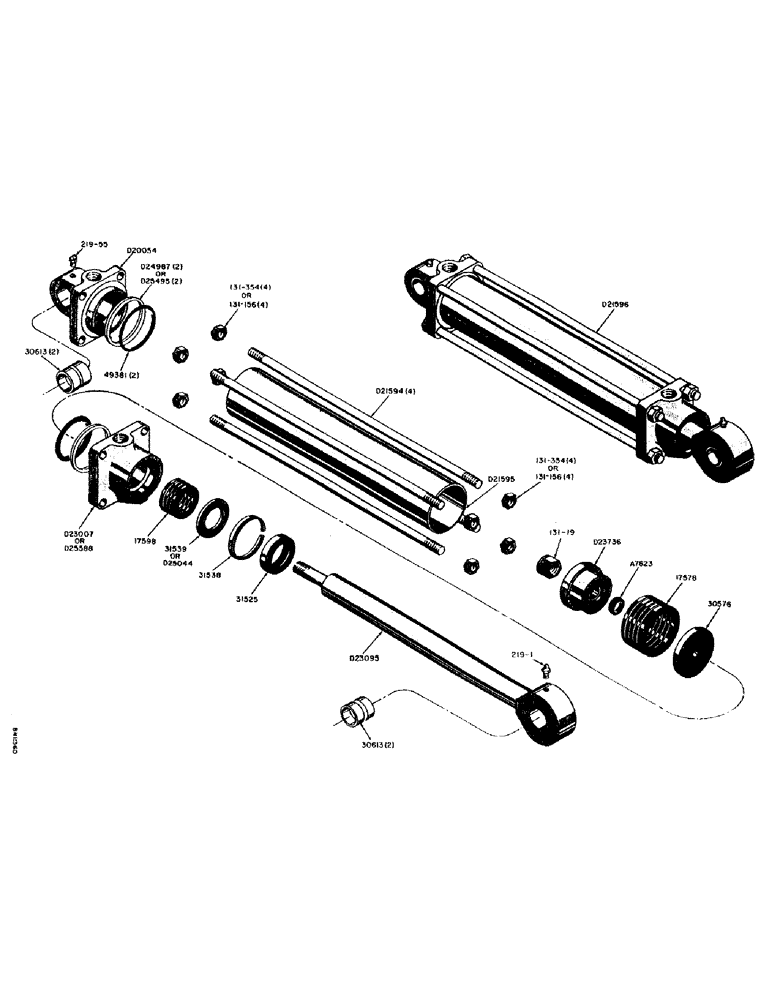

Запчасти Case 21 (44) - D21596 HYDRAULIC CROWD CYLINDER

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring, D23736 piston

1шт.

17578

PACKING

- piston

1шт.

17598

PACKING

- piston rod

1шт.

30571

PISTON - cylinder (Without "O" ring) Use D23736, 131-19, and A7623 (Not shown)

1шт.

131-19

LOCK NUT,1"-14, GB

1" - 14 NF hex. locking jam nut

1шт.

NLS

NO LONGER SERVICED

WASHER - packing piston

1шт.

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end and piston rod yoke

4шт.

31525

WIPER SEAL

- wiper, piston rod

1шт.

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, , seal, piston rod 2.75", Int, #275

1шт.

31539

WASHER

- packing, piston rod (D23007 end cap) See D25044

1шт.

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring cylinder tube

2шт.

D20054

END - cylinder (Includes 2 - 30613 bushings)

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D25495 leather backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

D21594

ROD - tie

4шт.

230-4618

LOCK NUT,1/2"-20, GA

1/2" - 20 NF hex. locknut (Tie rods with NF threads)

8шт.

131-354

LOCK NUT,1/2"-13, GA

1/2" - 13 NC hex. locknut (Tie rods with NC threads)

8шт.

D21595

TUBE - cylinder

1шт.

D21596

CYLINDER - crowd, hydraulic (Complete) 3-1/2" dia. x 38-3/8" stroke

1шт.

D23007

X

CAP - end, cylinder (Has no. D23007 on casting) Use D25588 and D25044

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D25495 leather backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

D23095

ROD - piston (Includes 2 - 30613 bushings) 2" dia.

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8" NPT straight grease fitting

1шт.

131-19

LOCK NUT,1"-14, GB

1" - 14 NF piston locknut

1шт.

D23736

PISTON - cylinder (Order 1 - A7623 "O" ring and 1 - 131-19 nut when replacing 30571 piston that does not have an "O" ring)

1шт.

D24987

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove) See D25495

2шт.

D25044

WASHER

- packing, piston rod (D25588 end cap) See 31539

1шт.

D25495

RING

- plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove) See D24987

2шт.

D25588

CAP - end, cylinder (Has no. D25588 on casting) See D23007

1шт.

When replacing cylinder end or cap that has .185" wide "O" ring groove, also order D25495 leather backup ring, as replacement end or cap has .210" wide "O" ring groove.

1шт.

D30143

KIT

SEAL

1шт.
