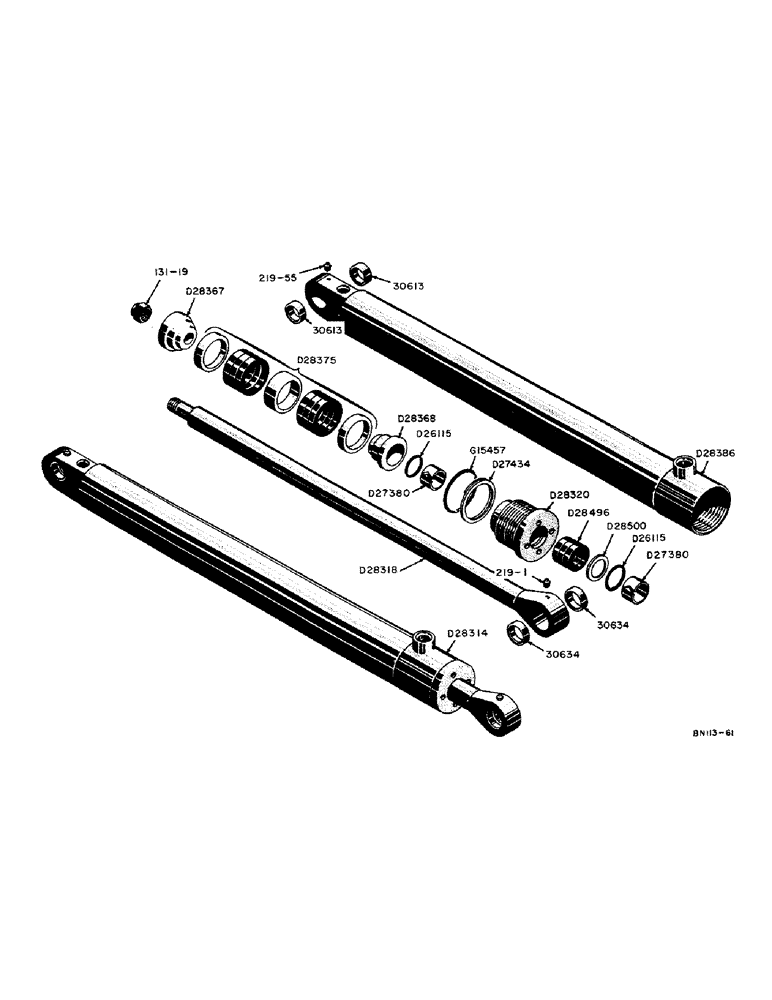

Запчасти Case 21 (43) - D28314 HYDRAULIC CROWD CYLINDER

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland seal

1шт.

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod eye

2шт.

131-19

LOCK NUT,1"-14, GB

1" - 14 NF piston locknut

1шт.

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring, wiper seal

2шт.

D27380

SCRAPER RING

WIPER - piston rod

2шт.

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

D28314

CYLINDER ASSY.

CYLINDER - crowd, hydraulic (Complete) 3-1/2" dia. x 38-3/8" stroke

1шт.

D28318

ROD ASSY.

ROD - piston (Includes 2 - 30634 bushings) 2" dia.

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8" NPT straight grease fitting

1шт.

D28320

GLAND

- packing

1шт.

D28367

PISTON

- split, gland end half

1шт.

D28368

PISTON

- split, closed end half

1шт.

D28375

PACKING

KIT - piston packing (Includes chevrons and spacers)

1шт.

D28386

TUBE - cylinder (Includes 2 - 30613 bushings)

1шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

D28496

SEAL - piston rod (In gland)

1шт.

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod seal

1шт.
