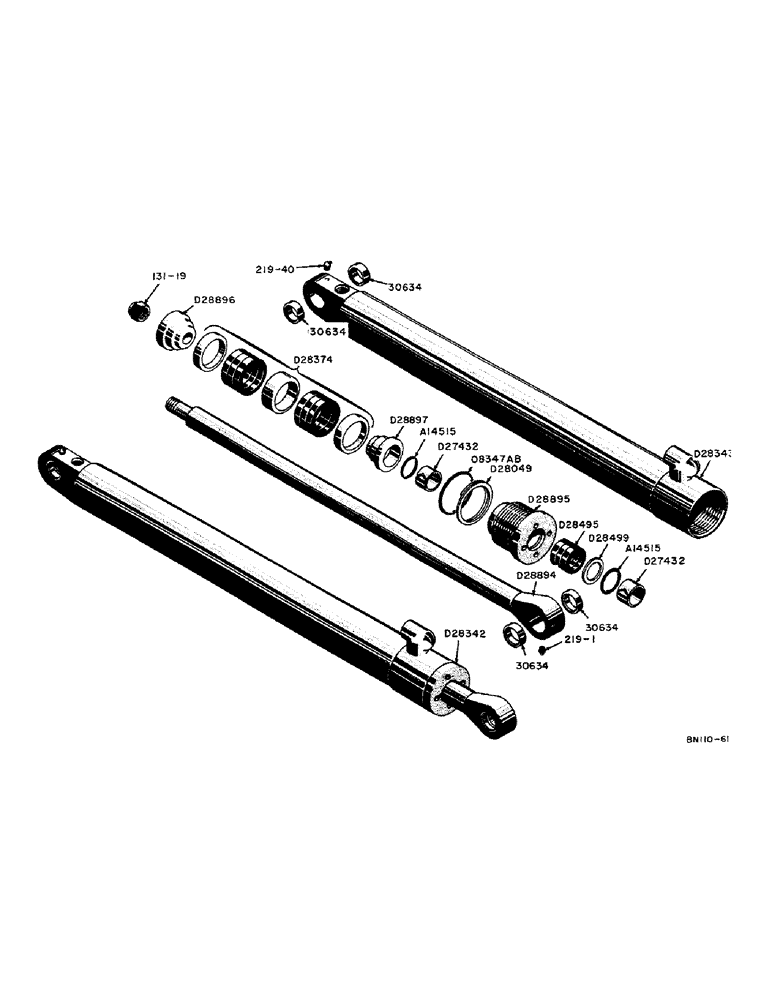

Запчасти Case 21 (42) - D28342 HYDRAULIC BOOM CYLINDER

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

O8347AB

X

SEAL - "O" ring, gland

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod eye and cylinder end

4шт.

131-19

LOCK NUT,1"-14, GB

1" - 14 NF piston locknut

1шт.

D27432

SHIM

- piston rod

2шт.

D28049

RING

- backup, gland seal

1шт.

D28342

CYLINDER - boom, hydraulic (Complete) 3" dia. x 31-3/4" stroke

1шт.

D28343

TUBE - cylinder (Includes 2 - 30634 bushings)

1шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8" NPT grease fitting, 67-1/2 degrees

1шт.

D28374

PACKAGE,SERVICE

KIT - piston packing (Includes chevrons and spacers)

1шт.

D28495

PACKING

SEAL - piston rod (In gland)

1шт.

D28499

RING

- backup rod seal

1шт.

D28894

ROD - piston (Includes 2 - 30634 bushings) 1-3/4" dia.

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8" NPT straight grease fitting

1шт.

D28895

GLAND

- packing

1шт.

D28896

PISTON

- split, closed end half

1шт.

D28897

PISTON

- split, gland end half

1шт.
