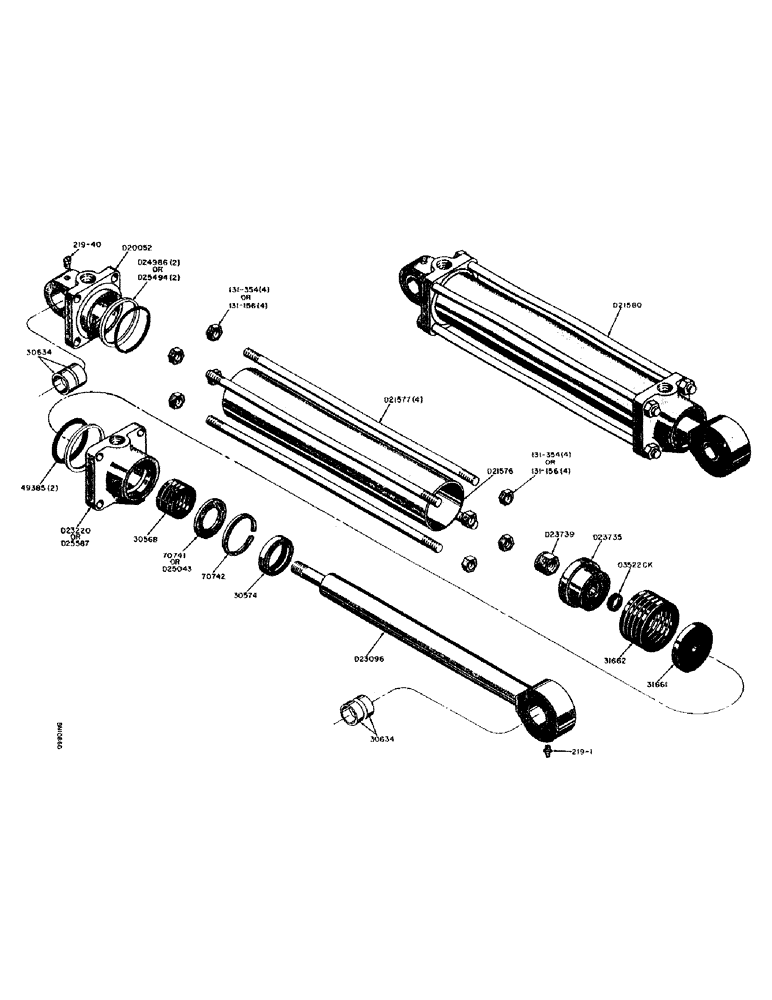

Запчасти Case 21 (40) - D21580 HYDRAULIC BOOM CYLINDER

O3522CK

X

SEAL - "O" ring, D23735 piston

1шт.

30568

PACKING

- piston rod

1шт.

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end and piston rod poke

4шт.

31661

WASHER

- packing, piston

1шт.

31662

PACKING

- piston

1шт.

31663

X

PISTON - cylinder (Without "O" ring) Use D23735, D23739, and O3522CK (Not shown)

1шт.

3/4" - 16 NF hex. locking jam nut (131-152)

1шт.

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring, cylinder tube

2шт.

70741

X

WASHER - packing, piston rod (D23220 end cap) See D25043

1шт.

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

D20052

END - cylinder (Includes 2 - 30634 bushings)

1шт.

See Figure Note.

1шт.

1/8" NPT grease fitting, 67-1/2 degrees (219-40)

1шт.

D21576

TUBE - cylinder

1шт.

D21577

ROD - tie

4шт.

1/2" - 20 NF hex. locknut (Tie rods with NF threads) (131-156)

8шт.

1/2" - 13 NC hex. locknut (Tie rods with NC threads) (131-354)

8шт.

D21580

CYLINDER - boom, hydraulic (Complete) 3" dia. x 31-3/4" stroke

1шт.

D23096

ROD - piston (Includes 2 - 30634 bushings) 1-3/4" dia.

1шт.

1/8" NPT straight grease fitting (219-1)

1шт.

D23220

X

CAP - end, cylinder (Has no. D23220 on casting) Use D25587 and D25043

1шт.

See Figure Note.

1шт.

D23735

PISTON

- cylinder (Order 1 - O3522CK "O" ring and 1 - D23739 nut when replacing 31663 piston that does not utilize "O" ring)

1шт.

D23739

LOCK NUT

NUT - lock, D23735 piston (3/4" - 16 NF)

1шт.

D24986

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove) See D25494

2шт.

D25043

WASHER

- packing, piston rod (D25587 end cap) See 70741

1шт.

D25494

RING

- plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove) See D24986

1шт.

D25587

CAP - end, cylinder (Has no. D25587 on casting) See D23220

1шт.

See Figure Note.

1шт.
