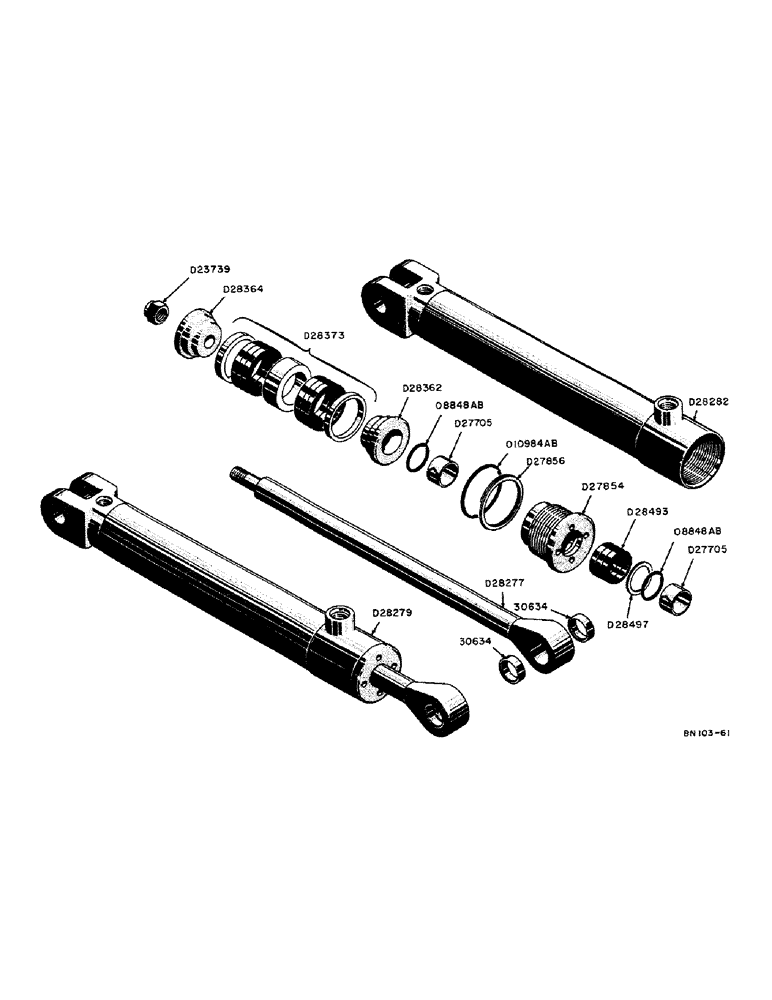

Запчасти Case 21 (37) - D28279 HYDRAULIC STABILIZER CYLINDERS

O8848AB

X

SEAL - "O" ring, wiper

2шт.

Part of service kit hydraulic cylinder P/N D30126

1шт.

O10984AB

X

SEAL - "O" ring, gland seal

1шт.

Part of service kit hydraulic cylinder P/N D30126

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod eye

2шт.

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.

Part of service kit hydraulic cylinder P/N D30126

1шт.

D27705

WIPER

- piston rod

2шт.

Part of service hydraulic cylinder P/N D30126

1шт.

D27854

GLAND

- packing

1шт.

D27856

RING

- backup, gland seal

1шт.

Part of service hydraulic cylinder P/N D30126

1шт.

D28277

ROD - piston (Includes 2 - 30634 bushings) 1-1/4" dia.

1шт.

D28279

CYLINDER - stabilizer, hydraulic (Complete) 2-1/2" dia. x 11" stroke

2шт.

D28282

TUBE - cylinder

1шт.

NLS

NO LONGER SERVICED

PISTON - split, gland end half

1шт.

D28364

PISTON

- split, cylinder end half

1шт.

D28373

PACKING

KIT - piston packing (Includes chevrons and spacers)

1шт.

Part of service kit hydraulic cylinder P/N 30126

1шт.

D28493

X

SEAL - piston, rod (In gland)

1шт.

Part of service kit hydraulic cylinder P/N 30126

1шт.

D28497

RING

- backup, piston rod seal

1шт.

Part of service kit hydraulic cylinder P/N 30126

1шт.

D30126

X

KIT - service, hydraulic cylinder, Includes P/N's 08848AB, 010984AB, D23739, D27705, D27856, D28373, D28493, D28497

1шт.
