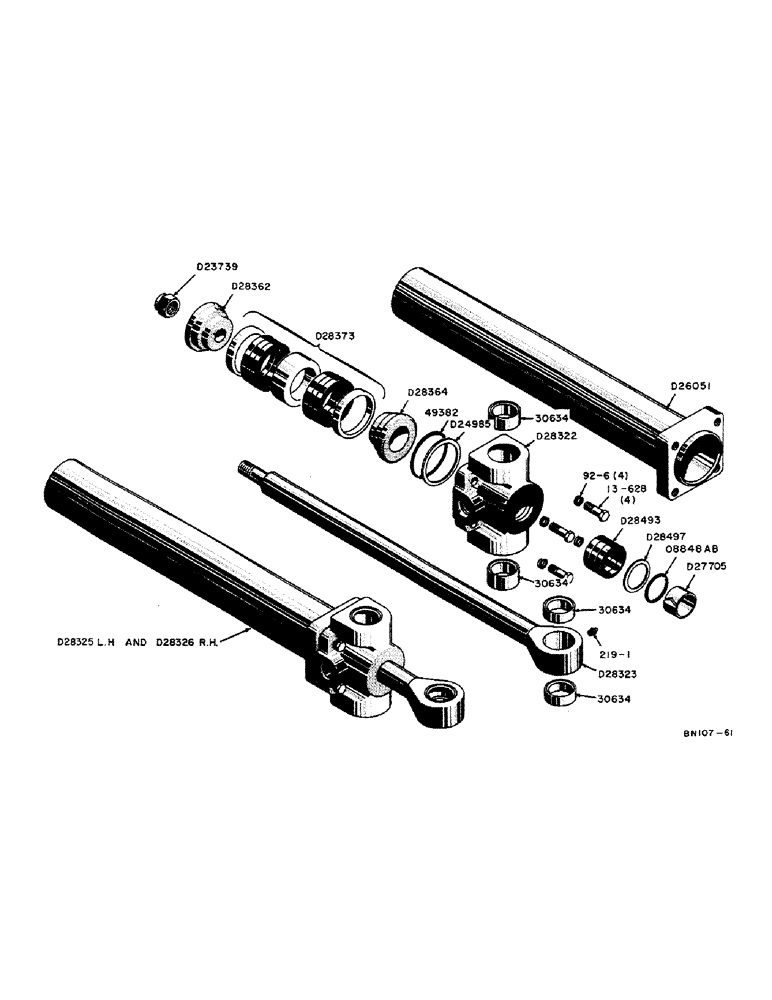

Запчасти Case 21 (36) - D28325 AND D28326 HYDRAULIC SWING CYLINDERS

O8848AB

X

SEAL - "O" ring, wiper

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod eye and end cap

4шт.

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring, end cap

1шт.

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.

D24985

RING

- backup, end cap seal

1шт.

D26051

TUBE - cylinder

1шт.

D27705

WIPER

- piston rod

1шт.

D28322

CAP - end (Includes 2 - 30634 bushings)

1шт.

3/8" - 16 NC x 1-3/4" hex. head cap screw (13-628)

4шт.

3/8" lockwasher (92-6)

4шт.

D28323

ROD - piston (Includes 2 - 30634 bushings) 1-1/4" dia.

1шт.

1/8" NPT straight grease fitting (219-1)

1шт.

D28325

CYLINDER - swing, hydraulic (L.H.) 2-1/2" dia. x 15-11/16" stroke

1шт.

D28326

CYLINDER - swing, hydraulic (R.H.) 2-1/2" dia. x 15-11/16" stroke

1шт.

NLS

NO LONGER SERVICED

PISTON - split, end cap half

1шт.

D28364

PISTON

- split, closed end half

1шт.

D28373

PACKING

KIT - piston packing (Includes chevrons and spacers)

1шт.

D28493

X

SEAL - piston rod (In end cap)

1шт.

D28497

RING

- backup, piston rod seal

1шт.
