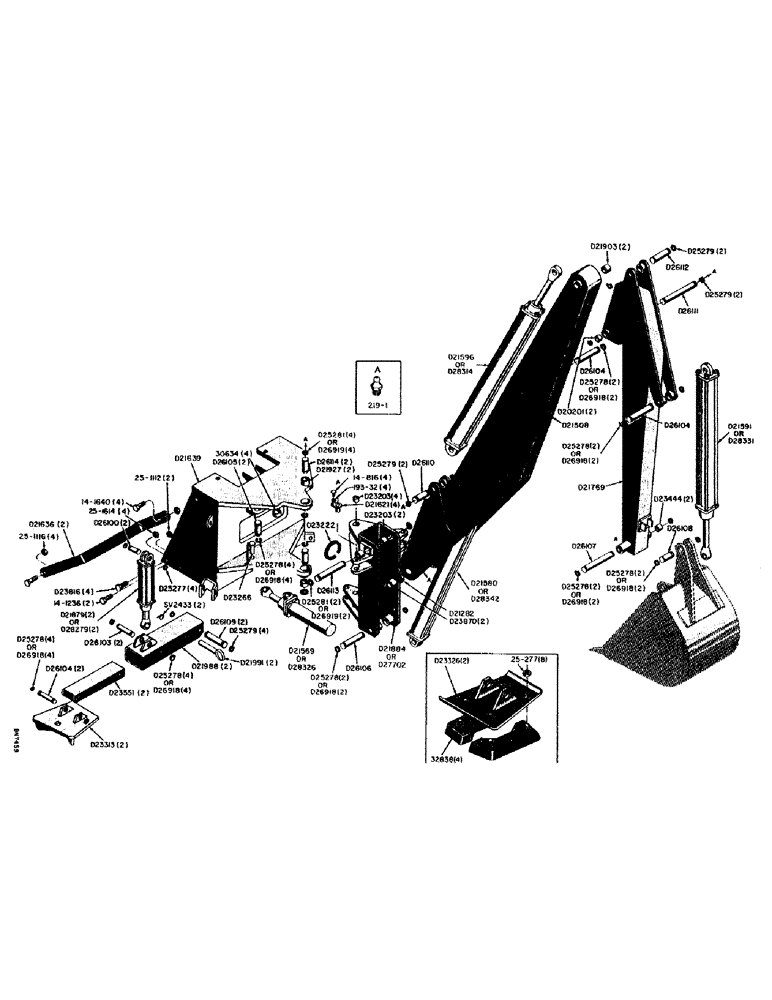

Запчасти Case 21 (04) - MOUNTING PARTS

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- swing cylinder yoke pin, frame

4шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- swing cylinder yoke pin

4шт.

D21636

BRACE - mounting frame

2шт.

1" - 14 NF x 2-1/2" hex. head cap screw (14-1640), frame

4шт.

1" - 14 NF hex. nut (25-1116), frame

4шт.

D21639

FRAME - mounting, includes (4) 30634 bushings, (2) D21927 bushings and (1) D23266 pin and chain

1шт.

3/4" - 16 NF x 2-1/4" hex. head cap screw (14-1236), frame

2шт.

3/4" - 16 NF hex. nut (25-1112), frame

2шт.

D21927

BUSHING,51.03mm ID x 63.45mm OD x 50.8mm L

- tower pivot, frame

2шт.

D23266

PIN - lock, transport (Includes chain), frame

1шт.

D23616

BOLT (SPREADER)

BOLT - special, frame mounting (Lower)

4шт.

7/8" - 9 NC hex. nut (25-1614), frame

4шт.

SV2433

X

PIN - klik, D21991 pin mounting, stabilizers

2шт.

32838

SHOE (ASSY)

SHOE - rubber stabilizer (Optional)

4шт.

SPECIAL hex. nut (7/16" - 20 NF) (25-227), stabilizers

8шт.

D21475

SNAP RING - D21997 and D23006 pins (See D25278 and D26918) Not shown, stabilizers

8шт.

D21476

SNAP RING - D21675 pin (See D25277) Not shown, stabilizer

4шт.

D21675

PIN - pivot, stabilizer cylinder (Upper) .056" wide snap ring groove (Use D26100) Not shown

2шт.

D21855

X

PIN - pivot, stabilizer arm (.068" wide snap ring groove) Use D26109 (Not shown)

2шт.

D21856

SNAP RING,#X137, 1.268" Dia, E-Type

Ring, Retaining, , D21855 pin (see D25279 and D26919) not shown, stabilizers #X137, 1.268" Dia, E-Type

4шт.

D21879

CYLINDER - stabilizer, hydraulic (With tie rods) complete (See Figure 38 for breakdown) When stock is exhausted order 2 - D24070 elbows and 1 - D28279 cylinder

2шт.

D21988

ARM - stabilizer

2шт.

D21991

PIN - stabilizer, Serial Range: leg-arm

2шт.

D21997

PIN - pivot, stabilizer cylinder (Lower) .068" wide x .086" deep snap ring groove (Use D26103) Not shown

2шт.

D23006

X

PIN - pivot, stabilizer foot (.068" wide x .086" deep snap ring groove) Use D26104 (Not shown)

2шт.

D23313

FOOT

- stabilizer (Cleated bottom - standard)

2шт.

D23326

FOOT

- stabilizer (Flat bottom - optional)

2шт.

D23551

LEG - stabilizer

2шт.

D24070

ELBOW

- 90 degree adjustable, stabilizer cylinder ports (Includes O-ring) (Not shown)

4шт.

SEAL - O-ring (218-5007) Not shown, stabilizers

4шт.

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

- D26100 pin (See D21476), stabilizers

4шт.

D25278

RING, SNAP

SNAP RING - D26103 and D26104 pins with .068" wide and .048" deep snap ring groove (See D21475 and D26918), stabilizers

8шт.

D25279

SNAP RING,M35, Int

- D26109 pin (See D21856), stabilizers

4шт.

D26100

PIN - pivot, stabilizer cylinder (Upper) .103" wide snap ring groove (Includes (2) D25277 snap ring) See D21675

2шт.

D26103

PIN - pivot, stabilizer cylinder (Lower)

2шт.

Early production pins had .068" wide x .048" deep snap ring groove and included (2) D25278 snap rings. Present production pins have .103" wide x .038" deep snap ring groove and include (2) D26918 snap rings. See D23006.

1шт.

D26104

PIN

- pivot, stabilizer foot (Early production pins had .068" wide x .048" deep snap ring groove and included 2 - D25278 snap rings) (Present production pins have .103" wide x .038" deep snap ring groove and include (2) D26918 snap rings) See D23006

2шт.

D26109

PIN ASSY.

PIN - pivot, stabilizer arm (.103" wide snap ring groove) Includes (2) D25279 snap rings (See D21855)

2шт.

D26918

SNAP RING,#125, Ext

Ring, Snap, , D26103 and D26104 pins with .103" wide x .038" deep snap ring groove (see D21475 and D25278), stabilizers #125, Ext

8шт.

D28279

CYLINDER - stabilizer, hydraulic (Without tie rods) complete (See Figure 37 for breakdown) When replacing a cylinder with tie rods also order (2) D24070 elbows

2шт.

D21475

SNAP RING - D23194 pin (See D25278 and D26918) Not shown, swing sylinders, tower

4шт.

D21569

CYLINDER - swing, hydraulic (R.H.) complete (When stock is exhausted use D28326) See Figure 34 for breakdown, cylinders, towers

1шт.

D21621

PIN - pivot, swing cylinder at trunnion (See D23740)

4шт.

1/2" - 20 NF x 1" hex. head cap screw (14-816), swing cylindersand tower

4шт.

1/2" internal tooth Shakeproof lockwasher (193-32), swing cylingers and tower

4шт.

1/8" NPT straight grease fitting (219-1), tower

4шт.

D21884

TOWER - backhoe (Includes 6 - D23203 bushings) When stock is exhausted use D27702, swing cylinger

1шт.

D23191

SNAP RING,#200, Ext

Ring, Snap, , D23201 pin (See D25281 and D26919) not shown, swing cylinder, tower #200, Ext

4шт.

D23194

X

PIN - pivot, swing cylinder to frame (.068" wide x .086" deep snap ring groove) Use D26105 (Not shown), tower

2шт.

D23201

PIN - pivot, tower mounting (.068" wide snap ring groove) Use D26114 (Not shown)

2шт.

D23201

PIN - pivot, tower mounting (.068" wide snap ring groove) Use D26114 (Not shown), swing cylinder

2шт.

1/8" NPT straight grease fitting (219-1), swing cylinders and towers

1шт.

1/8" NPT grease fitting, 90 degrees (219-55), swing cylinders and tower

1шт.

D23203

BUSHING

- tower and boom pivot, swing cylinders

6шт.

D23222

GROMMET - hose (Use D26124 and D26125 - see Figure 26), swing cylinders and tower

1шт.

D23654

CYLINDER - swing, hydraulic (L.H.) complete (See Figure 34 for breakdown) When stock is exhausted use D28325, cylinders, tower

1шт.

D23740

BUSHING

- D21621 lockhead pin bolt (Not shown), swing cylinders and tower

4шт.

D23740

BUSHING

- D21621 lockhead pin bolt (Not shown), swing cylinders and tower

4шт.

D25278

RING, SNAP

SNAP RING - D26105 pin with .068" wide x .048" deep snap ring groove (See D21475 and D26918), swing cylinders and tower

4шт.

D25281

RING, SNAP

SNAP RING - D26114 pin with .086" wide snap ring groove (See D23191 and D26919), swing cylinders and tower

4шт.

D26105

PIN ASSY.

PIN - pivot, swing cylinder to frame (Early production pins had .068" wide x .048" deep snap ring groove and included 2 - D25278 snap rings) (Present production pins have .103" wide x .038" deep snap ring groove and include (2) D26918 snap rings), tower

2шт.

D26114

PIN - pivot, tower mounting (Early production pins had .086" wide snap ring groove and included 2 - D25281 snap rings) (Present production pins have .139" snap ring groove and include (2) D26919 snap rings), swing cylinders

2шт.

D26918

SNAP RING,#125, Ext

Ring, Snap, , D26105 pin with .103" wide x .038" deep snap ring groove (see D21475 and D25278), swing cylinders and tower #125, Ext

4шт.

D26918

SNAP RING,#125, Ext

Ring, Snap, , D26105 pin with .103" wide x .038" deep snap ring groove (see D21475 and D25278), swing cylinders and tower #125, Ext

4шт.

D26919

SNAP RING,#200, Ext

Ring, Snap, , D26114 pin with .139" wide snap ring groove (see D23191 and D25281), swing cylinders and tower #200, Ext

4шт.

D27702

TOWER - backhoe (Includes 6 - D23203 bushings) See D21884, swing cylinders and tower

1шт.

D28325

CYLINDER - swing, hydraulic (L.H.) complete (See Figure 36 for breakdown) See D23654, cylinders, tower

1шт.

D28326

CYLINDER - swing, hydraulic (R.H.) complete (See Figure 36 for breakdown) See D21569 (Not shown), cylinders, tower

1шт.

D21282

SPACER - between D23870 bushings in lower end of boom (If used)

1шт.

D21475

SNAP RING - D21619 and D23195 pins (See D25278 and D26918) Not shown, boom

4шт.

D21508

BOOM - backhoe, Includes (2) D21903 and (2) D23870 bushings

1шт.

1/8" NPT straight grease fitting (219-1), boom

1шт.

D21580

CYLINDER - boom, hydraulic (With tie rods) complete (See Figure 40 for breakdown) When stock is exhausted order (1) D24070 elbow, (1) D28342 cylinder and (1) 218-5062 connector

1шт.

D21619

X

PIN - pivot, boom cylinder (Upper) .068" wide x .086" deep snap ring groove (Use D26104) Not shown

1шт.

Substitution of D26104 and D26113 pins for D21619 and D23196 pins respectfully, remove provision for zerk lubrication of pins. Pins must be packed at time of installation and repacked at regular intervals thereafter.

1шт.

1/8" NPT straight grease fitting (219-1), boom

1шт.

D21903

BUSHING

- boom, dipper arm pivot pin

2шт.

D23191

SNAP RING,#200, Ext

Ring, Snap, , D23196 pin (See D25281 and D26919) not shown, boom #200, Ext

2шт.

D23191

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

D23195

PIN - pivot, boom cylinder (Lower) .068" wide x .086" deep snap ring groove (Use D26106)

1шт.

D23196

PIN - pivot, boom (Lower) .068" wide snap ring groove (Use D26113) Not shown

1шт.

Substitution of D26104 and D26113 pins for D21619 and D23196 pins respectfully, remove provision for zerk lubrication of pins. Pins must be packed at time of installation and repacked at regular intervals thereafter.

1шт.

1/8" NPT straight grease fitting (219-1), boom

1шт.

D23870

BUSHING

- lower end of boom for pivot pin

2шт.

D24070

ELBOW

- 90 degree adjustable, lower port of boom cylinder (Includes O-ring) Not shown

1шт.

SEAL - O-ring, D24070 elbow (218-5008) Not shown, boom

1шт.

D25278

RING, SNAP

SNAP RING - D26104 and D26106 pins with .068" wide x .048" deep snap ring grooves (See D21475 and D26918), boom

4шт.

D25281

RING, SNAP

SNAP RING - D26113 pin with .086" wide snap ring groove (See D23191 and D26919), boom

2шт.

D26104

PIN

- pivot, boom cylinder (Upper)

1шт.

Substitution of D26104 and D26113 pins for D21619 and D23196 pins respectfully, remove provision for zerk lubrication of pins. Pins must be packed at time of installation and repacked at regular intervals thereafter.

1шт.

D26106

PIN - pivot, boom cylinder (Lower)

1шт.

Early production pins had .068" wide x .046" deep snap ring grooves and included (2) D25278 snap rings. Present production pins have .103" wide x .038" deep snap ring grooves and include (2) D26918 snap rings. See D23195.

1шт.

D26113

PIN - pivot, boom (Lower) (Early production pins had .086" wide snap ring grooves and included 2 - D25281 snap rings) (Present production pins have .139" wide snap ring grooves and include 2 - D26919 snap rings) See D23196

1шт.

Substitution of D26104 and D26113 pins for D21619 and D23196 pins respectfully, remove provision for zerk lubrication of pins. Pins must be packed at time of installation and repacked at regular intervals thereafter.

1шт.

D26918

SNAP RING,#125, Ext

Ring, Snap, , D26104 and D26106 pins with .103" wide x .038" deep snap ring groove (see D21475 and D25278),boom #125, Ext

4шт.

D26919

SNAP RING,#200, Ext

Ring, Snap, , D26113 pin with .139" wide snap ring groove, boom #200, Ext

2шт.

1/4" NPT pipe plug (221-12) Not shown, boom

1шт.

D28342

CYLINDER - boom, hydraulic (Without tie rods) complete (See Figure 42 for breakdown) When replacing a cylinder with tie rods also order (1) D24070 elbow and (1) 218-5062 connector (See D21580)

1шт.

5/8" JIC straight connector, includes O-ring (218-5062) Not shown, boom

1шт.

SEAL - O-ring, 218-5062 connector (218-5007) Not shown, boom

1шт.

D20201

BUSHING

- dipper arm to boom pivot pin

2шт.

D21475

SNAP RING - D23006, D23199, and D23200 pins (See D25278 and D26918) Not shown, dipper arm

6шт.

D21591

CYLINDER - bucket, hydraulic (With tie rods) complete (See Figure 46 for breakdown) When stock is exhausted order (1) D28331 cylinder, (1) D28352 clamp, (2) 13-520 cap screws, (2) 131-351 locknuts, (1) D28354 tube and (2) 218-5107 elbows, dipper arm

1шт.

D21596

CYLINDER - crowd, hydraulic (With tie rods) complete (See Figure 44 for breakdown) When stock is exhausted order (1) D27782 elbow, (1) 221-12 plug, (1) D28314 cylinder, (1) D28350 tube and (1) 218-5107 elbow, dipper arm

1шт.

D21769

ARM - dipper, includes (2) D20201 and (2) D23444 bushings, arm

1шт.

1/8" NPT straight grease fitting (219-1), dipper arm

1шт.

D21856

SNAP RING,#X137, 1.268" Dia, E-Type

Ring, Retaining, , D21941, D23941 and D23198 pins (see D25279) not shown, dipper arm #X137, 1.268" Dia, E-Type

6шт.

D21941

PIN - pivot, crowd cylinder (Lower) .068" wide snap ring groove (Use D26110) Not shown, dipper arm

1шт.

1/8" NPT straight grease fitting (219-1), dipper arm

1шт.

D23006

X

PIN - pivot,bucket cylinder to dipper arm (.068" wide x .086" deep snap ring groove) Use D26104 (Not shown)

1шт.

D23197

PIN - pivot, dipper arm (.068" wide snap ring groove) Use D26111 (Not shown)

1шт.

D23198

PIN - pivot, crowd cylinder (Upper) .068" wide snap ring groove (Use D26112) Not shown, dipper arm

1шт.

D23199

PIN - pivot, bucket to dipper arm (.068" wide x .086" deep snap ring groove) Use D26107 (Not shown)

1шт.

Required for use with buckets with 5/8" thick mounting lugs. If buckets have 3/4" thick mounting lugs, use the parts on page (see service bulletin 35-60).

1шт.

D23200

PIN - pivot bucket cylinder to bucket (.068" wide x .086" deep snap ring groove) Use D26108 (Not shown), dipper arm

1шт.

Required for use with buckets with 5/8" thick mounting lugs. If buckets have 3/4" thick mounting lugs, use the parts on page (see service bulletin 35-60).

1шт.

D23444

BUSHING

- dipper arm to bucket pin

2шт.

D25278

RING, SNAP

SNAP RING - D26104, D26107, and D26108 pins with .068" wide x .048" deep snap ring grooves (See D21475 and D26918), dipper arm

6шт.

D25279

SNAP RING,M35, Int

- D26110, D26111, and D26112 pins (See D21856), dipper arm

6шт.

D26104

PIN

- pivot, bucket cylinder to dipper arm

1шт.

Early production pins had .068" wide x .048" deep snap ring groove and included (2) D25278 snap rings. Present production pins have .103" wide x .038" deep snap ring groove and include (2) D26918 snap rings. See D23006.

1шт.

D26107

PIN - pivot, bucket to dipper arm (Early production pins had .068" wide x .048" deep snap ring groove and included 2 - D25278 snap rings) (Present production pins have .103" wide x .038" deep snap ring groove and include 2 - D26918 snap rings) See D23199

1шт.

Required for use with buckets with 5/8" thick mounting lugs. If buckets have 3/4" thick mounting lugs, use the parts on page (see service bulletin 35-60).

1шт.

D26108

PIN - pivot, bucket cylinder to bucket, dipper arm

1шт.

Early production pins had .068" wide x .048" deep snap ring groove and included (2) D25278 snap rings. Present production pins have .103" wide x .038" deep snap ring groove and include (2) D26918 snap rings. See D23200.

1шт.

Required for use with buckets with 5/8" thick mounting lugs. If buckets have 3/4" thick mounting lugs, use the parts on page (see service bulletin 35-60).

1шт.

D26110

X

PIN - pivot, crowd cylinder (Lower) Includes (2) D25279 snap rings (.103" wide snap ring groove) See D21941, dipper arm

1шт.

D26111

PIN - pivot, dipper arm, includes (2) D25279 snap rings, .103" wide snap ring groove (See D23197), dipper arm

1шт.

1/8" NPT straight grease fitting (219-1), dipper arm

1шт.

D26112

PIN - pivot, crowd cylinder (Upper) Include (2) D25279 snap rings (.103" wide snap ring groove) See D23198, dipper arm

1шт.

D26918

SNAP RING,#125, Ext

Ring, Snap, , D26104, D26107 and D26108 pins with .103" wide x .038" deep snap ring groove (see D21475 and D25278), dipper arm #125, Ext

6шт.

D27782

X

ELBOW - special (Includes O-ring) Not shown, dipper arm

1шт.

SEAL - O-ring, D27782 elbow (218-5007) Not shown, dipper arm

1шт.

1/4" pipe plug (221-12) Not shown, dipper arm

1шт.

D28314

CYLINDER ASSY.

CYLINDER - crowd, hydraulic (Without tie rods) complete (See Figure 43 for breakdown) When replacing a cylinder with tie rods also order (1) D27782 elbow, (1) 221-12 plug, (1) D28350 tube and (1) 218-5107 elbow (See D21596), dipper arm

1шт.

5/8" JIC adjustable elbow, 90 degrees (Includes O-ring) (218-5107) Not shown, dipper arm

1шт.

SEAL - O-ring, 218-5107 elbow (218-5007) Not shown, dipper arm

1шт.

D28331

CYLINDER ASSY.

CYLINDER - bucket hydraulic (Without tie rods) complete (See Figure 48, for breakdown) When replacing a cylinder with tie rods also order (1) D28352 clamp, (2) 13-520 cap screws, (2) 131-351 locknuts, (1) D28354 tube and (2) 218-5107 elbows, dipper arm

1шт.

5/8" JIC adjustable elbow, 90 degrees (Includes O-ring) (218-5107) Not shown, dipper arm

2шт.

SEAL - O-ring, 218-5107 elbow (218-5007) Not shown, dipper arm

1шт.

D28350

TUBE - hose to upper port of D28314 crowd cylinder (Not shown), dipper arm

1шт.

D28352

CLAMP - D28354 tube to D29331 cylinder (Not shown), dipper arm

1шт.

5/16" - 18 NC x 1-1/4" hex. head cap screw (13-520) Not shown, dipper arm

2шт.

5/16" - 18 NC locknut (131-351) Not shown, dipper arm

2шт.

D28354

TUBE - to lower port of D28331 bucket cylinder (Not shown), dipper arm

1шт.

D21331

PIN - lockhead (Plug lubrication hole with 1/8" NPT pipe plug) (1-1/4" dia. x 3-5/8" long) Not shown, dipper arm

1шт.

35288

PIN - lockhead (1-1/4" dia. x 11-7/8" long) Not shown, dipper arm

1шт.

1/2" - 20 NF x 3/4" hex. head cap screw (14-812), dipper arm

2шт.

1/2" internal tooth Shakeproof lockwasher (193-32), dipper arm

2шт.

D23740

BUSHING

- lockhead pin bolt (Not shown), dipper arm

2шт.
