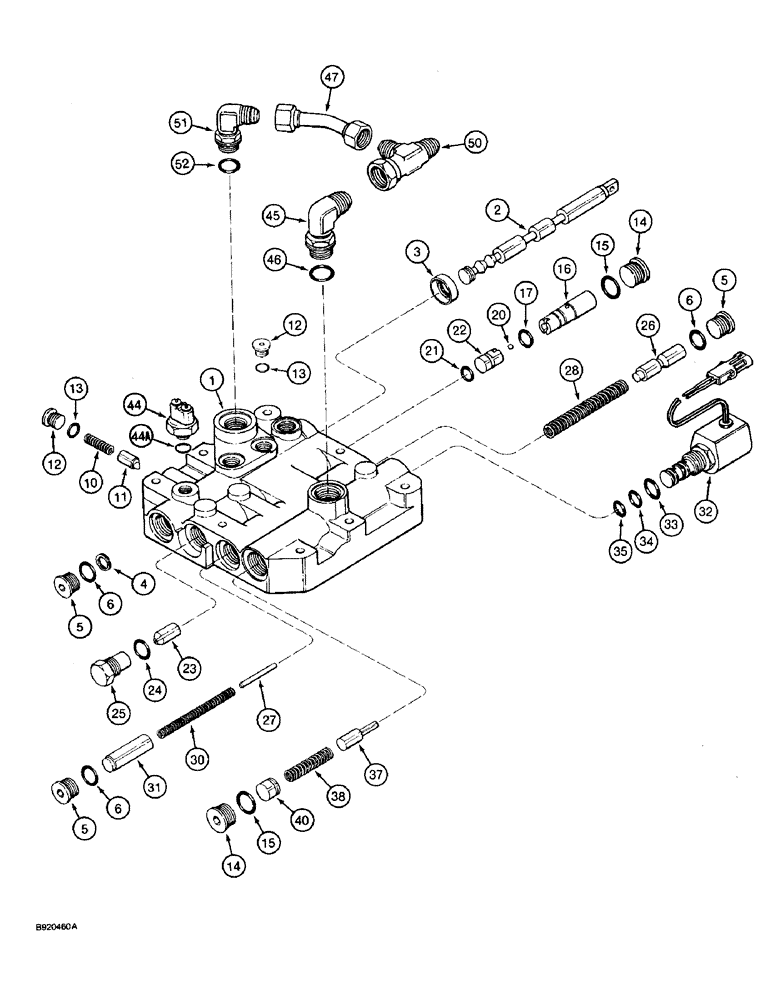

Запчасти Case 590 (6-16) - 1978113C2, TRANSAXLE ASSEMBLY, POWER SHUTTLE, VALVE ASSEMBLY (06) - POWER TRAIN

1978113C2

VALVE BLOCK

ASSEMBLY power shuttle, no longer available, order: P/N 1343543C2 valve assembly in Fig. 6-18, Includes: Ref. 1 - 52

1шт.

If valve with external tubing is replaced with P/N 1343543C2, do not use the external tube. Install a cap plug on tee fitting where tube was installed.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - shuttle valve (Order 1978113C2)

1шт.

2

A178266

SPOOL

- selector

1шт.

3

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- oil

1шт.

4

A175093

SNAP RING,#56, Ext, Spiral

RING - retaining

1шт.

5

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Incl Ref 6 Hex Soc, 3/4"-16 ORB

3шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

A183672

SPRING

- detent

1шт.

11

A175081

PLUNGER

- detent

1шт.

12

9625178

PLUG,9/16" - 18 ORB

Assy, Incl. Ref. 13 Hex Soc, 9/16"-18 ORB

4шт.

14

86625138

PLUG,7/18" - 14

Assy, Includes Ref. 15 Hex Soc, 7/8"-14 ORB

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

A178349

SEAT

- shuttle

1шт.

17

A179308

O-RING,0.614" ID x 0.754" OD x 0.07"

- 5/8 ID x 3/4 O.D. x 1/16 inch

1шт.

20

211-206

BALL,1/4" Dia

- steel, 1/4 inch O.D.

1шт.

21

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk (Replaces D26265)

1шт.

22

A178384

SEAT

- shuttle

1шт.

This P/N A178384 Seat must fit in valve body with the slot away from P/N A178384 Seat.

1шт.

23

A186846

SPOOL

- auto modulator unloading

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

A178264

SEAT

- unloading spool

1шт.

26

A178265

SPOOL

- modulator pressure regulator, replaces 1980336C1

1шт.

27

A188112

PIN

- spacer

1шт.

28

1978109C1

SPRING

- modulator, primary

1шт.

30

1978108C1

VALVE SPRING

SPRING - modulator, secondary

1шт.

31

A186439

PISTON

ASSEMBLY - accumulator

1шт.

32

1971438C3

SOLENOID

VALVE ASSEMBLY - solenoid, Includes: Ref. 33 - 35

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

34

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk (Replaces 371544R1)

1шт.

35

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

37

1978388C1

SPOOL

- pressure regulator

1шт.

38

A175782

SPRING

- pressure regulator

1шт.

40

A188228

PISTON

- regulator

1шт.

44

1983241C1

SWITCH

- neutral start, Includes: Ref. 44A

1шт.

45

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 5/8 tube x 7/8-14 inch thread, Incl. Ref. 46

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

47

A186964

TUBE

- lube crossover

1шт.

50

218-5486

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

- adj., 7/8-14 inch thread x 5/8 tube x 3/4-16 inch thread

1шт.

51

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 1/2 tube x 3/4-16 inch thread, Includes: Ref. 52

1шт.

52

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

44a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
