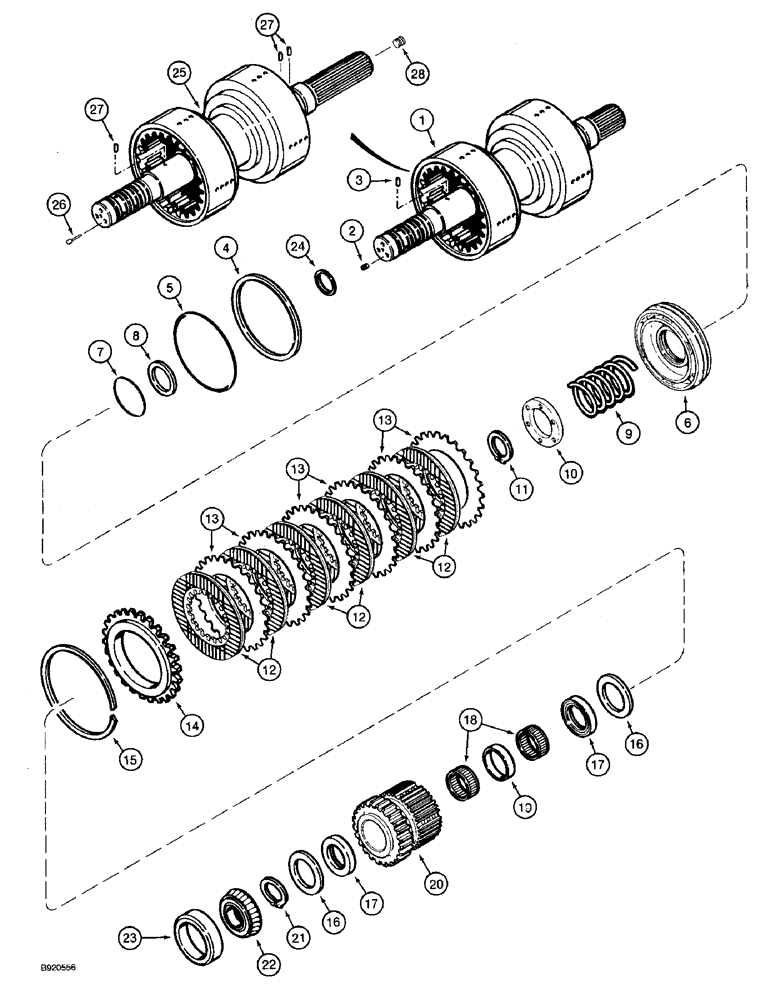

Запчасти Case 590 (6-14) - TRANSAXLE ASSEMBLY, POWER SHUTTLE, REVERSE CLUTCH (06) - POWER TRAIN

A190449

INVERTER SHAFT

SHAFT ASSEMBLY - reverse clutch, 440 mm long, if used (order 1995409C1, see Ref. 25 - 28), Includes: Ref. 1 - 14

1шт.

1

A190342

SHAFT

- input spline 44 mm long, reverse clutch, shuttle, Includes: Ref. 2 and 3

1шт.

2

83-3446

SET SCREW,Hex Soc, 7/16"-14 x 3/8"

SCREW - set, hex socket, 7/16 NC x 3/8 inch

3шт.

3

138-294

LOCK PIN,1/8" x 1/4", Slotted

Pin, , Cam 1/8" x 1/4", Slotted

2шт.

4

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

- piston, external

1шт.

5

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

Piston, external (Replaces A158050) -156, 70 Duro, 4.237" ID x .103" Thk

1шт.

6

A159292

PISTON

- clutch

1шт.

7

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

Piston, internal (Replaces A159296) -137, 90 Duro, 2.05" ID x .103" Thk

1шт.

8

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEAL - piston, internal

1шт.

9

A188842

VALVE SPRING

SPRING - piston, return

1шт.

10

A186965

RETAINER,40.38mm ID x 64.63mm OD x 4.75mm Thk

- spring

1шт.

11

100-16156

SNAP RING,#156, Ext

Ring, Snap, (Replaces A144595 ring) #156, Ext

1шт.

12

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

PLATE - clutch, friction

6шт.

13

A175806

PLATE

- clutch, separator

6шт.

14

1997122C1

PLATE

- clutch, backing, (replaces A178020 plate)

1шт.

15

A158227

CIRCLIP

RING - retaining, backing plate

1шт.

16

A159463

SHIM,40.05mm ID x 59.94mm OD x 2.25mm Thk

WASHER - thrust

2шт.

17

A175486

THRUST BEARING,40.05mm ID x 61.85mm OD x 3.85mm W

BEARING - thrust

2шт.

18

A175487

NEEDLE BEARING,39.99mm ID x 45.02mm OD x 16.8mm W

BEARING - roller, needle

2шт.

19

A175489

SPACER,41mm ID x 44mm OD x 9.9mm L

- bearing

1шт.

20

1995220C1

SPROCKET ASSY.

GEAR - reverse, with hub, 25 teeth, welded (replaces A190297 cast gear)

1шт.

21

100-16150

SNAP RING,#150, Ext

Ring, Snap, (Replaces T37909 ring) #150, Ext

1шт.

22

A188709

BEARING CONE,38mm ID x 17mm W

- tapered roller

1шт.

23

61801C1

BEARING CUP,63mm OD x 13.5mm W

CUP - tapered roller bearing

1шт.

24

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

RING - sealing, shaft

4шт.

1995409C1

INVERTER SHAFT

SHAFT ASSEMBLY - reverse clutch, 466 mm long, also includes Ref. 4-15 above, if used, Includes: Ref. 26 - 28

1шт.

25

1995408C1

DRIVE SHAFT

SHAFT - input spline 70 mm long, reverse clutch, shuttle

1шт.

26

1342851C1

PLUG

- expansion

3шт.

27

38-1804

LOCK PIN,3.17mm OD x 6.35mm L, Slotted

PIN, LOCK, 1/8" x 1/4", Slotted

3шт.

28

178-495

SET SCREW,Hex Skt, 5/8" - 11

- set, hex socket, 5/8 NC x 5/8 inch

1шт.
