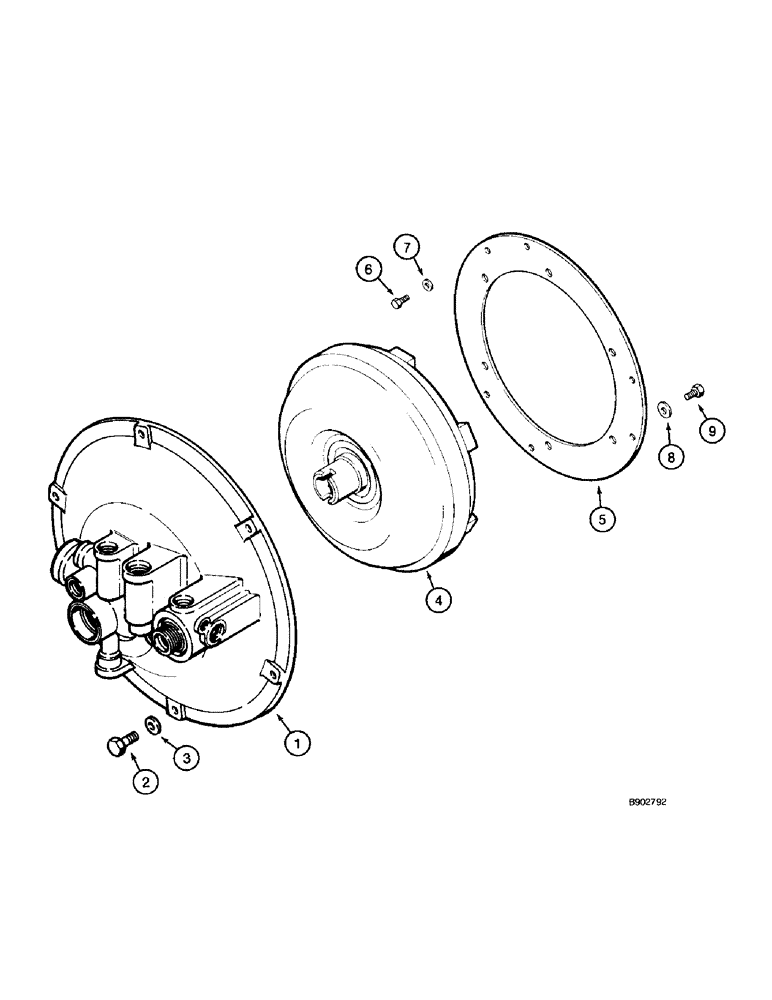

Запчасти Case 590 (6-08) - TORQUE CONVERTER MOUNTING (06) - POWER TRAIN

1

A186700

HOUSING ASSY.

HOUSING ASSEMBLY - torque converter, parts list figure 6-10

1шт.

2

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Bolt, Hex, M10 x 30, 8.8

6шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER - flat, 11 x 21 x 2 mm

6шт.

4

1995137C1

CONVERTER

CONVERTER - torque (replaces A190346 converter)

1шт.

1995137C1 has 2 orange and 1 brown mark for identification.

1шт.

4

1995137C1R

REMAN-TORQUE CONVERT

ER Reman - Torque Converter

1шт.

4

1995137C1C

CORE-TORQUE CONVERTR

Core-Torque Converter Return Part Number

1шт.

5

A178706

PLATE

PLATE - adapter, torque converter, Serial Range: housing-engine

1шт.

6

428-510

BOLT,Hex, 5/16" - 24 x 5/8", Gr 8

BOLT - hex, 5/16 NF x 5/8 inch, Grade 8

6шт.

7

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

WASHER - flat, hardened, special

6шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER - flat, 11 x 21 x 2 mm

6шт.

9

626-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

BOLT - hex, 10 - 1.5 x 16 mm, class 10.9

6шт.
