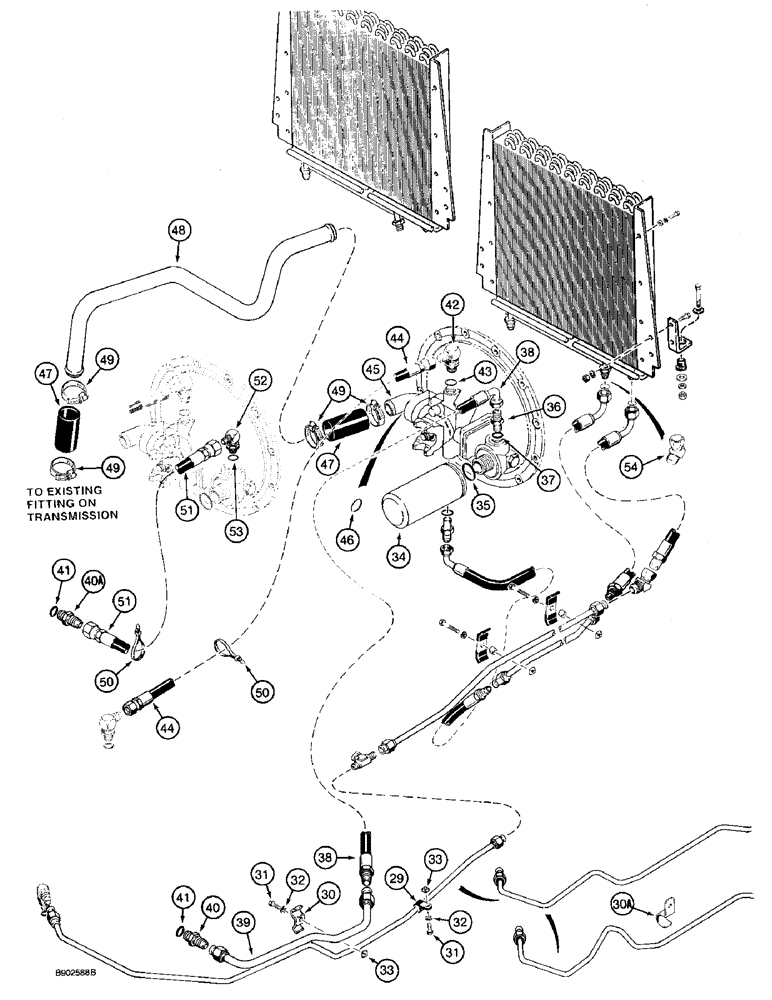

Запчасти Case 590 (6-06) - TORQUE CONVERTER AND TRANSAXLE, SHUTTLE COOLING SYSTEM, (CONT) (06) - POWER TRAIN

29

D140709

CLAMP

- Ptype, tube

1шт.

30

D139956

CLAMP

- double tube, if used

1шт.

30a

D140709

CLAMP

- single tube, if used

1шт.

31

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

34

1346028C1

HYDRAULIC OIL FILTER

ELEMENT - filter, at torque converter, (replaces N9025 element), Includes: Ref. 35

1шт.

35

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

N9025 element -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

35

1986552C2

O-RING,2.484mm ID x 1.39mm Width

- 2-31/64 ID x 9/64 inch, 1346028C1 element

1шт.

36

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, if used, Includes: Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

D141502

HOSE

- 625 mm long, torque converter charge outlet, used with item 39 tube, replaced by one piece hose on some models, Ref. 51, if used

1шт.

39

D150742

TUBE

- torque converter to transaxle, charge (replaces D145950 tube), if used

1шт.

40

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring, used with Ref. 39, D150742 tube, at transaxle

1шт.

NSS

NOT SOLD SEPARAT

Ref. 39, D150742 tube, at transaxle

1шт.

40a

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, used with Ref. 51, D150280 hose, at transaxle, Includes: Ref. 41

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5065 or 218-5062 adapters

1шт.

42

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj. O-ring, Includes: Ref. 43

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

44

E49602

HOSE

- 1130 mm long, lube, torque converter to transaxle (replaces D146201 1075 mm long hose)

1шт.

45

A186721

FITTING

ELBOW - barb stem, 90 degree, Includes: Ref. 46

1шт.

46

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

47

D125962

HOSE

- 100 mm long, suction, cut to required length from D129185 bulk hose

2шт.

48

D145948

TUBE

- suction, see page 6-25, item 8 for tube guard

1шт.

49

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

4шт.

50

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

51

D150280

HOSE

- 1220 mm long, torque converter charge outlet to transaxle, replaces hose and tube (Ref. 38 and 39) used on some models

1шт.

52

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj. O-ring boss, used with D150280 hose, Ref. 51, Incl. Ref. 53

1шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

54

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 deg, 3/4-16 inch flare x swivel straight thread, if used

1шт.

D129185

HOSE,38.1 mm ID x 863.60 mm

1шт.
