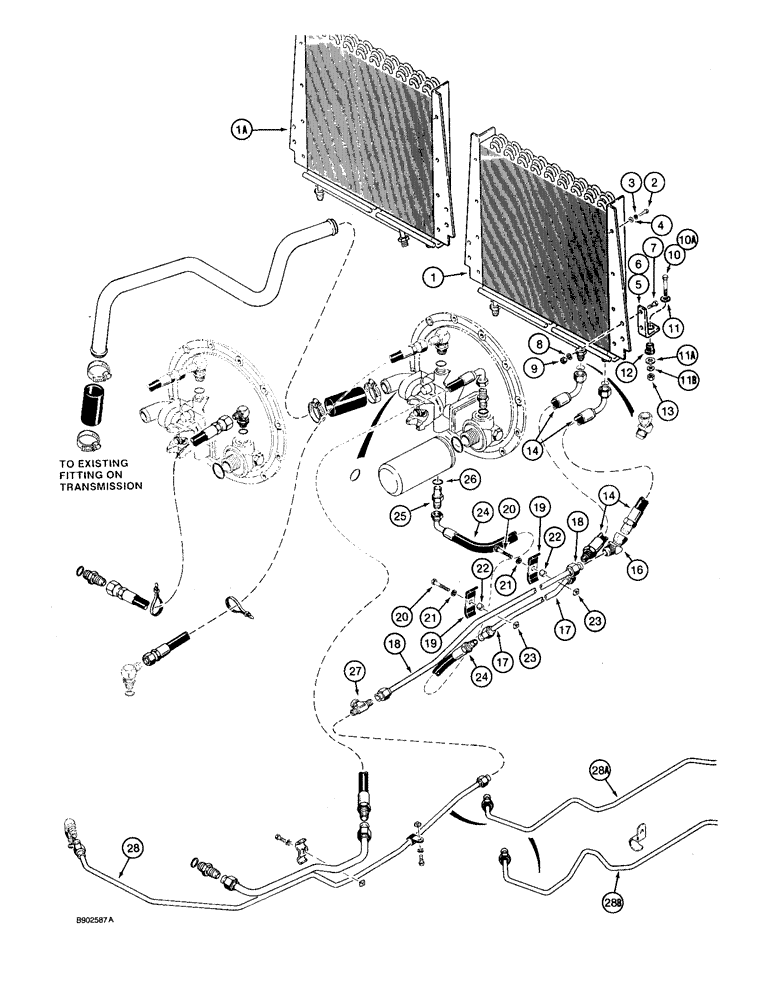

Запчасти Case 590 (6-04) - TORQUE CONVERTER AND TRANSAXLE, SHUTTLE COOLING SYSTEM (06) - POWER TRAIN

1

A190640

COOLER

- oil, 4 straight fittings, transaxle shuttle, torque converter, and equipment hydraulic oil, no longer available, order 100725A1 cooler, Ref. 1A, for equipment hydraulic oil cooler lines, see figures 8-008

1шт.

1a

100725A1

COOLER

- oil, 1 angled and 3 straight fittings, transaxle shuttle, torque converter, and equipment hydraulic oil, for equipment hydraulic oil cooler lines, see figures 8-008

1шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 16 mm

8шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

8шт.

5

114353A1

BRACKET

- mounting, oil cooler to radiator shroud, left-hand, (replaces D131921 bracket)

1шт.

6

114352A1

BRACKET

- mounting, oil cooler to radiator shroud, right-hand, (replaces D131920 bracket)

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Bracket to oil cooler

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

425-106

NUT,3/8"-16, Cl 5

4шт.

10

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Bracket to radiator shroud, radiator shroud may have mounting hole or slots, this bolt used without Ref. 11A or 11B, in mounting hole Hex, 3/8"-16 x 1 3/4", G5

2шт.

10a

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch, For radiator shroud with slot, used with Ref. 11A and 11B

2шт.

11

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 25/64 x 1-1/4 x 7/64 inch, hardened

2шт.

11a

D41740

WASHER

- flat, hardened, used with Ref. 10A in radiator shroud slot

2шт.

11b

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Used with Ref. 10A in radiator shroud slot 3/8", SAE

2шт.

12

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - vibration, rubber mount

2шт.

13

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC, grade 8

2шт.

14

L127626

HOSE ASSY.

HOSE - 533 mm long, at cooler inlet and outlet

2шт.

16

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 deg, 3/4-16 inch flare x swivel straight thread

1шт.

17

D146437

TUBE

- torque converter hose to cooler inlet hose

1шт.

18

D146435

TUBE

- transaxle tube to cooler outlet hose

1шт.

19

D143846

CLAMP

- Double Tube

2шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

D149944

SPACER

- tube, replaces D149139

2шт.

23

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

24

D134007

HOSE

- 525 mm long, torque converter to cooler inlet

1шт.

25

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 26

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

27

218-585

TEE,3/4"-16, 37 Degree x 1/2"-14, NPTF Fem Br

- 1/2 female PT branch x 3/4-16 inch flare

1шт.

28

D145952

PIPE

TUBE - cooler outlet tube to transaxle, no longer available, order D151126 tube, Ref. 28B

1шт.

28a

D150887

TUBE

- cooler outlet tube to transaxle, no longer available, order D151126 tube, Ref. 28B

1шт.

28b

D151126

TUBE

- cooler outlet tube to transaxle, attaches to elbow on transaxle, see figure 7-2, Ref. 12, for elbow, used with single tube clamp, Ref. 30A

1шт.
