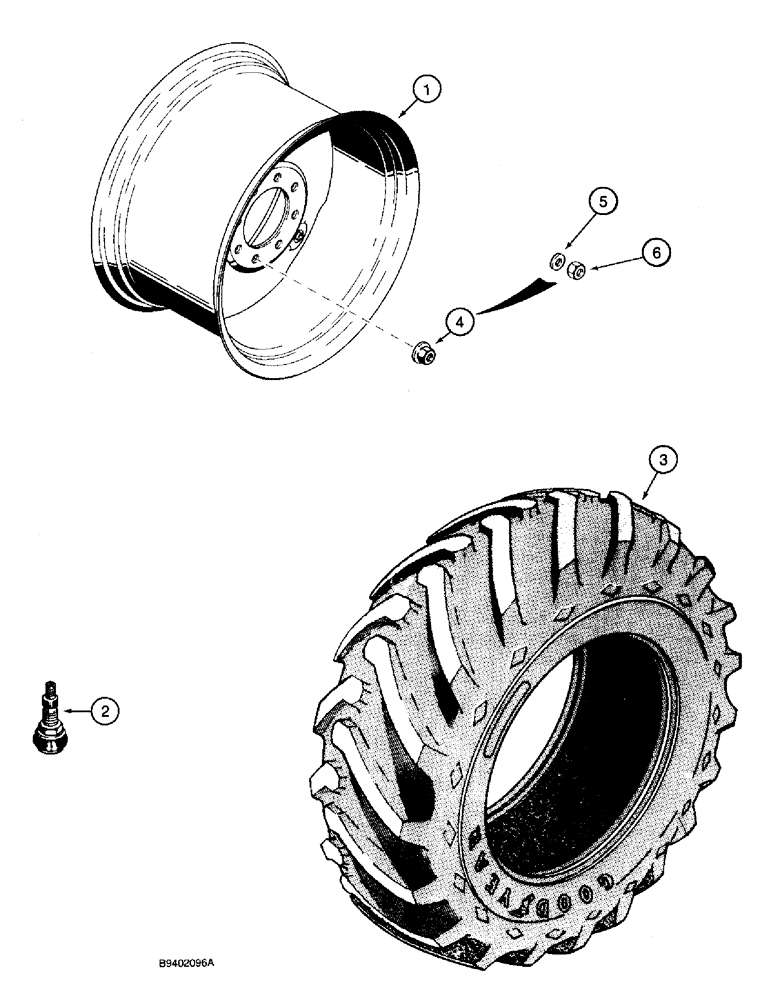

Запчасти Case 590 (6-02) - REAR WHEELS AND TIRES, 19.5L X 24 TIRES - 10 PLY, TWO WHEEL OR FOUR WHEEL DRIVE MODELS (06) - POWER TRAIN

1

115490A1

RIM

WHEEL - rim, (replaces D144996 wheel)

2шт.

2

A20058

VALVE STEM

Wheel

2шт.

3

REF

INSTRUCTION

TIRE - rear, purchase locally

2шт.

4

98783C1

WHEEL NUT,Wheel, Flg, M20 x 1.5

Special, If used, Wheel nuts Wheel, Flg, M20 x 1.5

16шт.

5

138076A1

WASHER

- flat, 51/64 x 1-3/8 x 1/8 inch, hardened, special, if used, wheel nuts

16шт.

6

829-11420

NUT,M20 x 1.5, Cl 10

- hex, 20 mm - 1.5, class 10, if used, wheel

16шт.
