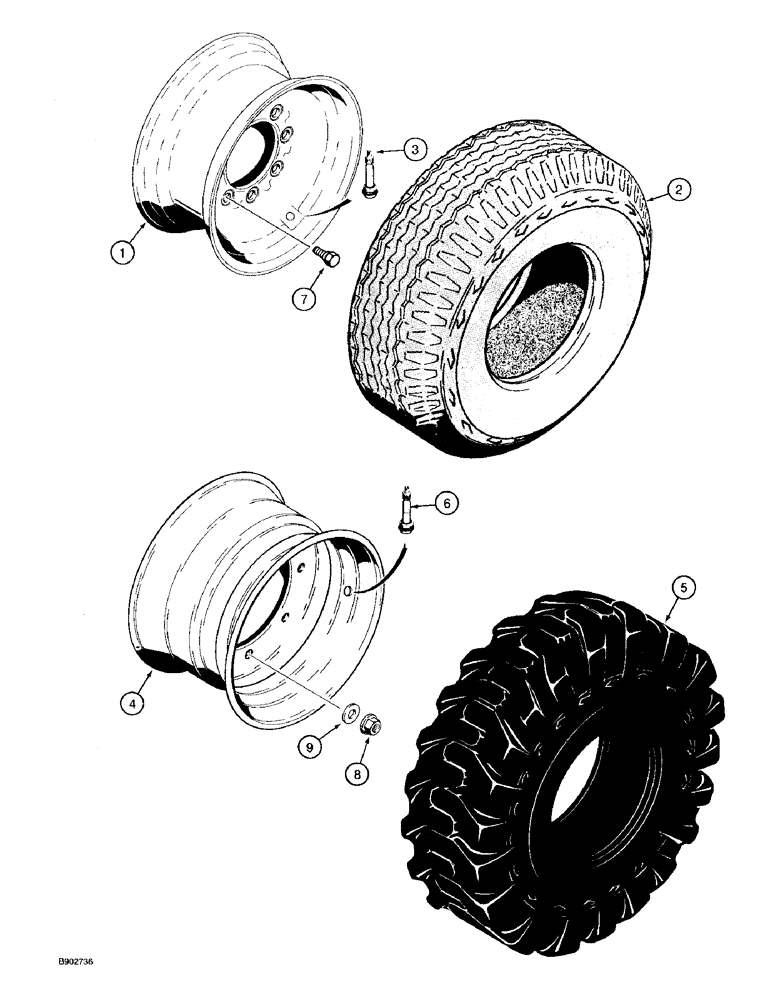

Запчасти Case 590 (5-20) - FRONT WHEELS AND TIRES, FOR 11L X 16 - 10 AND 12 PR F3 TIRES, TWO WHEEL DRIVE MODELS (05) - STEERING

1

D143982

RIM

WHEEL - rim, for 11L x 16 - 10 & 12 PR F3 tires, 2 wheel drive models

2шт.

2

REF

INSTRUCTION

TIRE - front, purchase locally

2шт.

3

A38261

VALVE

STEM - valve, wheel

2шт.

4

D143983

RIM

WHEEL - rim, for 12 x 16.5 - 8 and 10 PR tires, 4 wheel drive models

2шт.

5

REF

INSTRUCTION

TIRE - front, purchase locally

2шт.

6

A38261

VALVE

STEM - valve, wheel

2шт.

7

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Retaining, 2WD models

16шт.

8

K395089

WHEEL NUT

- hex, wheel retaining, 4 wheel drive models

16шт.

9

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened, wheel retaining, four wheel drive models

16шт.
