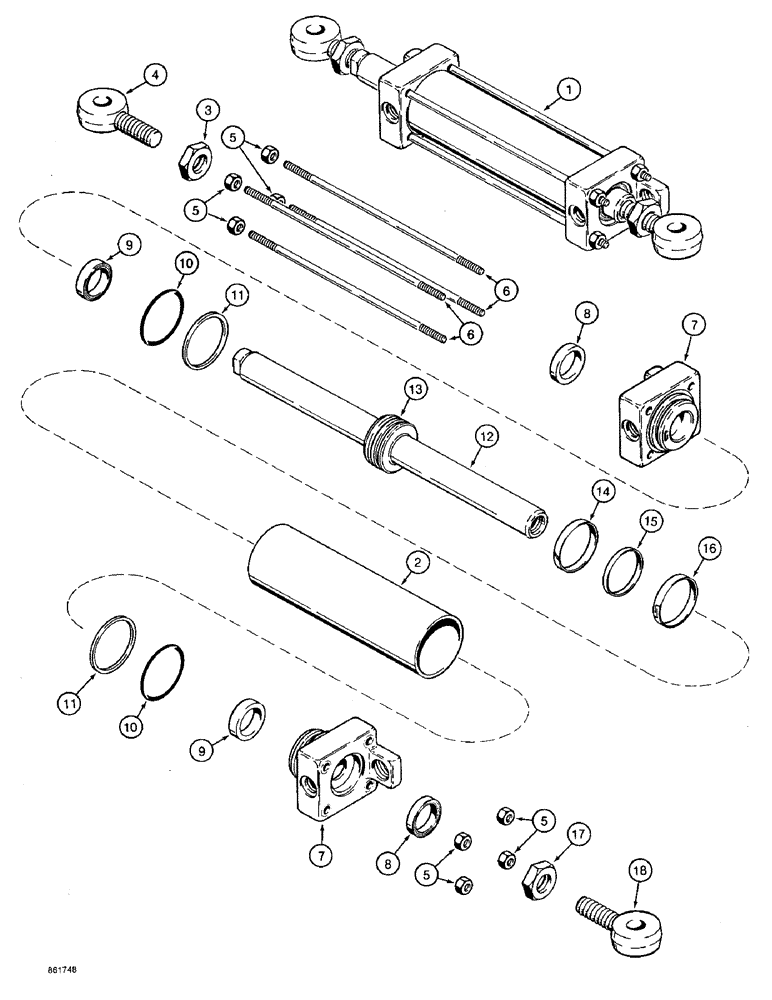

Запчасти Case 590 (5-14) - STEERING CYLINDER, TWO-WHEEL DRIVE FRONT AXLE (05) - STEERING

1

1986518C1

STEERING CYLINDER

CYLINDER ASSEMBLY - 2-3/4 inch (70 mm) ID x 6-45/64 inch (170 mm) stroke, steering, two-wheel drive front axle, no longer available, order 1986518C2 cylinder assembly, Includes: Ref. 2 - 18A

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

1986518C2

STEERING CYLINDER

CYLINDER ASSEMBLY - 2-3/4 inch (70 mm) ID x 6-45/64 inch (170 mm) stroke, steering, two-wheel drive front axle, Includes: Ref. 2 - 18A

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G106808

TUBE,69.85 mm ID x 79.76 mm OD x 233.60 mm L

- cylinder

1шт.

3

129-369

JAM NUT,Jam, 7/8"-14, G5

LH thread Jam, 7/8"-14, G5

1шт.

4

1986583C1

EYE

- rod, left-hand thread, 1986518C1 cylinder, no longer available, order 1542550C1, Ref. 4A

1шт.

4a

1542550C1

BALL JOINT

EYE - rod, left-hand thread, 1986518C2 cylinder, not shown

1шт.

5

425-106

NUT,3/8"-16, Cl 5

8шт.

6

G106817

TIE-ROD

ROD - tie, 13-5/16 inch (338 mm) long, cylinder

4шт.

1986521C1

GLAND

ASSEMBLY - cylinder, no longer available, order Ref. 7, 1986520C1 gland and G110045 seal kit, Includes: Ref. 7 - 11

2шт.

7

1986520C1

CYLINDER END CAP

GLAND - cylinder

1шт.

8

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G110045.

1шт.

9

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110045.

1шт.

10

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Gland -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

Part of seal kit P/N G110045.

1шт.

11

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N G110045.

1шт.

G107721

ROD ASSY.

ROD ASSEMBLY - piston, 1-1/2 inch (38 mm) diameter, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

14

G105187

RING

- wear, piston

1шт.

Part of seal kit P/N G110045.

1шт.

15

G104439

RING

- seal, inner

1шт.

Part of seal kit P/N G110045.

1шт.

16

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

- expandable, outer, piston

1шт.

Part of seal kit P/N G110045.

1шт.

17

425-1514

JAM NUT,Jam, 7/8"-14, G5

- hex, jam, 7/8 inch NF

1шт.

18

1986582C1

ROD

EYE - rod, right-hand thread, 1986518C1 cylinder, no longer available, order 1542549C1, Ref. 18A

1шт.

18a

1542549C1

BALL JOINT

EYE - rod, right-hand thread, 1986518C2 cylinder, not shown

1шт.

G110045

KIT

- seal, Includes: Ref. 8 - 11 and 14 - 16

1шт.
