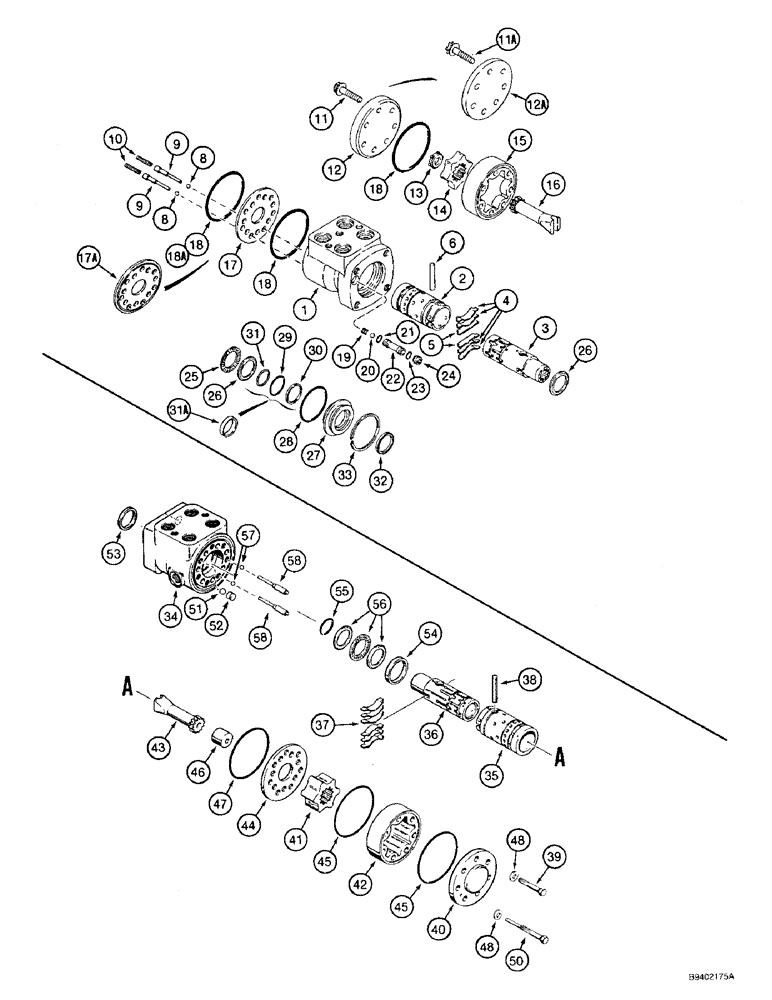

Запчасти Case 590 (5-10) - STEERING CONTROL VALVE (05) - STEERING

D135338

PUMP, HYDRAULIC

VALVE ASSEMBLY - steering control, may receive either Eaton or Danfoss complete control valve assembly, see below for service of internal parts, no longer available, order 135999A1 valve assembly on figure 5-13A, Includes: Ref. 1 - 58

1шт.

D140225

VALVE, CONTROL

VALVE ASSEMBLY - steering control, Eaton No. 263-1061-004, includes Ref. 1 - 33, no longer available, order 135999A1 valve assembly on figure 5-13A, Includes: Ref. 1 - 58

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - steering control, D135338 valve, Eaton No. 263-1061-004, if used, Includes: Ref. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - control valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

N14250

KIT

- centering spring, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - centering, six in kit

4шт.

5

NSS

NOT SOLD SEPARAT

SPACER - spring

2шт.

6

L30888

PIN

- centering

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - check, control valve, not shown

1шт.

8

211-204

BALL

- 3/16 inch, grade 25, chrome alloy steel, anticavitation

2шт.

9

136494A1

PLUG

RETAINER - spring, anticavitation (replaces N14764)

2шт.

10

N14763

SPRING

- anticavitation

2шт.

11

H189555

BOLT,M6 x 20mm, Cl 8.8

- Ferry head, 12 point, 5/16 NF x 1-5/8 inch, used with Ref. 12 and 17, if used

7шт.

11a

136586A1

SCREW,6 Pt, Torx Hd, 5/16" - 24 x 1 3/4"

BOLT - Torx head, 6 point, 5/16 NF x 1-3/4 inch, used with Ref. 12A and 17A, if used

7шт.

When the end cap repair kit is installed, 'flip' outer gerotor ring, Ref. 15. Also order two Ref. 9 retainers and reinstall it so that the O-ring groove faces the end cap.

1шт.

12

D82809

COVER

CAP - end, with O-ring groove, upon depletion of service parts, when replacing end cap or spacer plate (Ref. 12 or 17), order 136493A1 repair kit, see below

1шт.

12a

135867A1

CAP

- end, without O-ring groove, 3/8 inch thick

1шт.

When the end cap repair kit is installed, 'flip' outer gerotor ring, Ref. 15. Also order two Ref. 9 retainers and reinstall it so that the O-ring groove faces the end cap.

1шт.

13

K964246

SPACER

- drive shaft

1шт.

N14154

ROTOR

SET - gerotor, control valve, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

ROTOR - control valve

1шт.

15

NSS

NOT SOLD SEPARAT

STATOR - control valve

1шт.

16

L30878

DRIVE SHAFT

SHAFT - drive, steering control valve

1шт.

17

S113037

PLATE

- spacer, without O-ring groove, upon depletion of service parts, when replacing end cap or spacer plate (Ref. 12 or 17), order 136493A1 repair kit, see below

1шт.

17a

135869A1

PLATE

- spacer, with O-ring groove facing end cap

1шт.

When the end cap repair kit is installed, 'flip' outer gerotor ring, Ref. 15. Also order two Ref. 9 retainers and reinstall it so that the O-ring groove faces the end cap.

1шт.

18

238-5040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

-040, 70 Duro, 2.864" ID x .070" Thk, Cover and housing (Replaces N6392 square cut seal)

3шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

136493A1

COVER

KIT - repair, end cap and spacer plate, includes (7) 136586A1 bolts, 135867A1 end cap and 135869A1 spacer plate, Ref. 11A, 12A and 17A

1шт.

When the end cap repair kit is installed, 'flip' outer gerotor ring, Ref. 15. Also order two Ref. 9 retainers and reinstall it so that the O-ring groove faces the end cap.

1шт.

1343658C3

SEAL KIT

KIT - seal, low torque, Includes: Ref. 18 on this figure and Ref. 21, 23, 28, 31A and 32 on Figure 5-12

1шт.

D135338

PUMP, HYDRAULIC

VALVE ASSEMBLY - steering control, continued from previous figure

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - steering control, Eaton No. 263-1061-004, if used, continued from previous figure

1шт.

19

L35368

RETAINER

- check ball

1шт.

20

211-208

BALL,5/16" Dia

- 5/16 inch, grade 25, chrome alloy steel, check

1шт.

21

L30893

O-RING,1/16" Thk x 5/16" ID

7/16 x 5/16 x 1/16 in, seat, inner

1шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

22

D82806

VALVE SEAT

SEAT - check ball

1шт.

23

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Seat, outer (Replaces N8539 seal)

1шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

24

D82805

SET SCREW

- hex socket, special

1шт.

25

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle, Spool

1шт.

26

D82804

RACE

WASHER - thrust, bearing

2шт.

27

N13312

CYLINDER END CAP

RETAINER - spool seal

1шт.

28

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

Seal retainer (Replaces A14515) -225, 70 Duro, 1.859" ID x .139" Thk

1шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

29

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

- teflon, spool, inner, if used

1шт.

30

50-2703T1

BACK-UP RING

RING - backup, seal, if used, replaces N13314

1шт.

31

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

Spool, inner, if used -121, 70 Duro, 1.049" ID x .103" Thk

1шт.

31a

NSS

NOT SOLD SEPARAT

SEAL - may replace three-piece seal arrangement (Ref. 29 - 31)

1шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

32

697494R91

OIL SEAL

SEAL - 1 inch ID, spool, outer, replaces A28211

1шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

33

S110169

WASHER

RING - retaining, seal retainer

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - steering control, Danfoss Type No. OSPC125LS, Code No. 150-0122, if used, Includes: Ref. 34 - 58

1шт.

34

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

35

NSS

NOT SOLD SEPARAT

SLEEVE - control valve

1шт.

36

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

37

N14219

SET OF PARTS

SPRING - centering, set of six

1шт.

38

3112269R1

PIN

- centering

1шт.

39

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

6шт.

40

3112273R1

COVER

- end

1шт.

N14221

ROTOR

SET - gerotor, control valve, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

ROTOR - control valve

1шт.

42

NSS

NOT SOLD SEPARAT

STATOR - control valve

1шт.

43

538915R1

DRIVE SHAFT

SHAFT - drive, steering control valve

1шт.

44

3112276R1

PLATE

- spacer

1шт.

45

3141536R1

O-RING

- cover and housing, replaces V35605

2шт.

46

N14220

SPACER

- shaft

1шт.

47

538931R1

O-RING,1.5mm Thk x 80.5mm ID

- plate, replaces V35603

1шт.

48

538920R1

WASHER

- end cover

7шт.

50

D145254

BOLT - special, with pin

SCREW

1шт.

51

3112270R1

BALL

- plate

1шт.

52

3112272R1

BUSHING

- plate

1шт.

53

538930R1

SEAL,25mm ID x 3.5mm Thk

- spool, outer, replaces V35600

1шт.

54

3112264R1

RING

- retaining

1шт.

55

D145253

O-RING

- special

1шт.

56

N14218

BEARING ASSY

BEARING - spool, includes roller bearing and two thrust washers

1шт.

57

N14222

BALL

- housing, not shown

2шт.

58

D145278

PIN, SPLIT (COTTER)

PIN - with bushing

2шт.

1343658C3

SEAL KIT

KIT - seal, low torque, Includes: Ref. 21, 23, 28, 31A and 32 on this figure and Ref. 18 on Figure 5-10

1шт.
