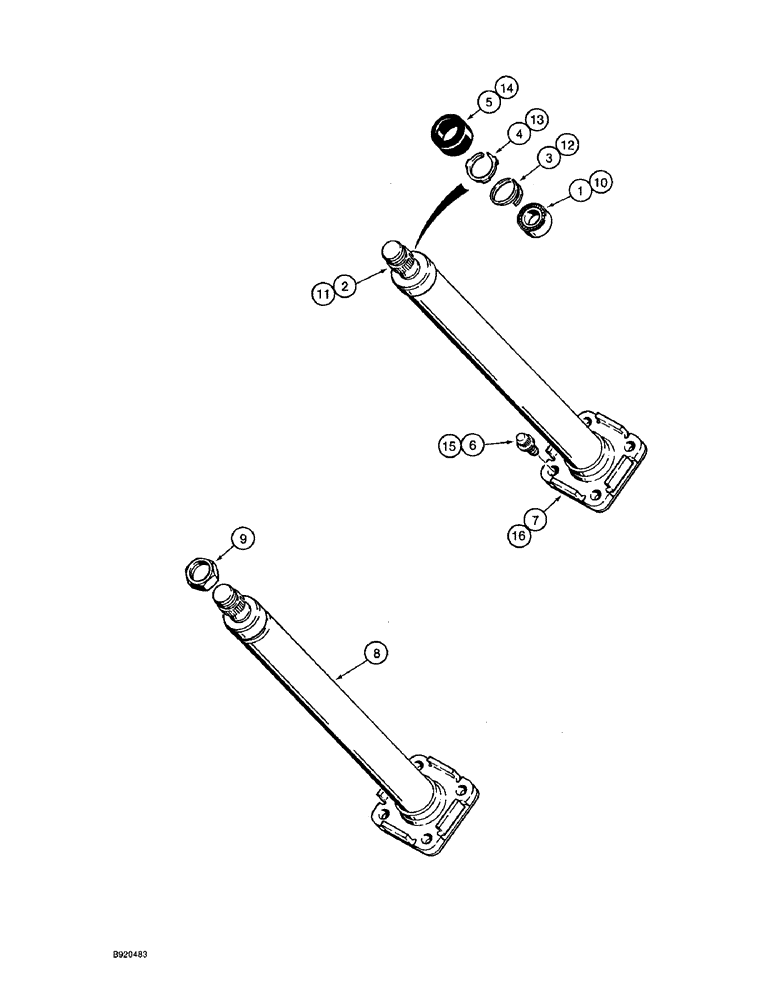

Запчасти Case 590 (5-08) - STEERING COLUMN (05) - STEERING

D135411

STEERING COLUMN

COLUMN ASSEMBLY - steering, may receive either Eaton or Danfoss complete steering column assembly, see below for service of internal parts, if used, Includes: Ref. 1 - 9

1шт.

NSS

NOT SOLD SEPARAT

COLUMN ASSEMBLY - steering, Eaton No. 204-1031-006, 460 mm long, if used, Includes: Ref. 1 - 7

1шт.

1

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

- roller, steering shaft

1шт.

2

NSS

NOT SOLD SEPARAT

COLUMN - steering shaft

1шт.

3

F53335

RING, SNAP

RING - retaining, bearing

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

5

S115351

CAP

- shaft

1шт.

6

27588R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

BOLT - 12 point, 3/8 NC x 3/4 inch, grade 8, not required, uses Ref. 6 and 7 shown on figure 5-2

2шт.

7

NSS

NOT SOLD SEPARAT

FLANGE - tube

1шт.

NSS

NOT SOLD SEPARAT

COLUMN ASSEMBLY - steering, Danfoss Type No. OTPB400, Code No. 150X0058, 454 mm long, if used, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

COLUMN - steering shaft

1шт.

9

N14118

SPECIAL NUT

- special, used on Danfoss steering columns

1шт.

D150774

STEERING COLUMN

COLUMN ASSEMBLY - steering, Eaton No. 204-1104-006, 469 mm long, if used, Includes: Ref. 10 - 16

1шт.

10

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

- roller, steering shaft

1шт.

11

NSS

NOT SOLD SEPARAT

COLUMN - steering shaft

1шт.

12

F53335

RING, SNAP

RING - retaining, bearing

1шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

14

S115351

CAP

- shaft

1шт.

15

27588R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

BOLT - 12 point, 3/8 NC x 3/4 inch, grade 8, not required, uses Ref. 6 and 7 shown on figure 5-2

2шт.

16

NSS

NOT SOLD SEPARAT

FLANGE - tube

1шт.
