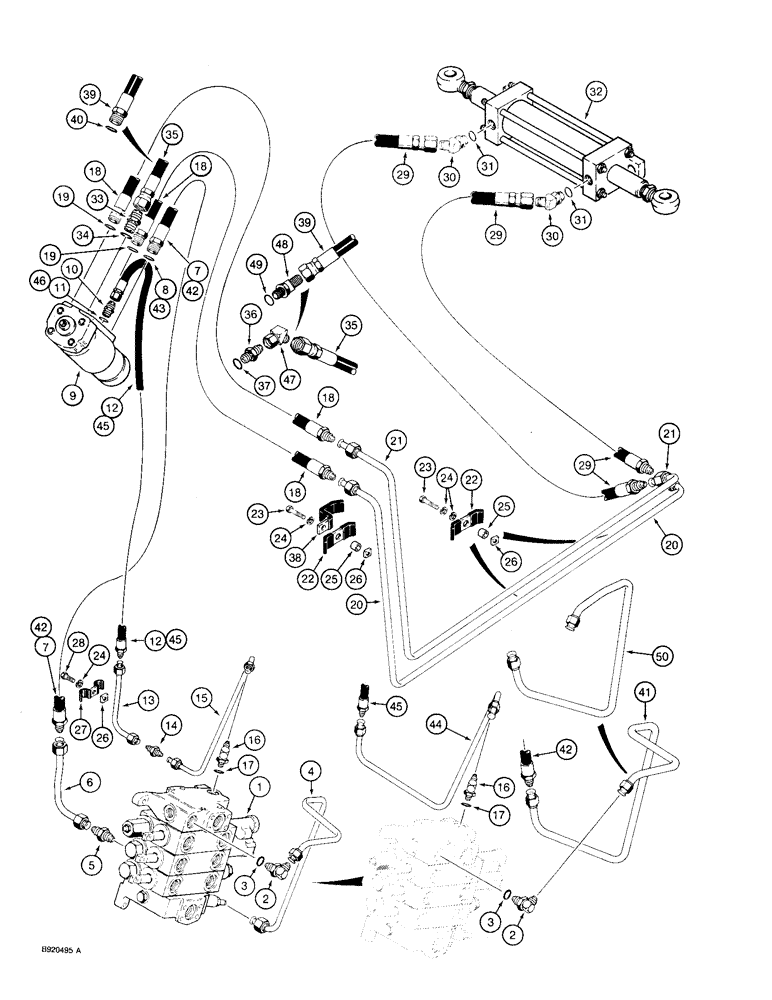

Запчасти Case 590 (5-04) - STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see figure 8-58 or 8-60

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj. O-ring boss, Includes: Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

D147584

PIPE

TUBE - steering pressure, at loader valve, used with Ref. 5 - 7, if used

1шт.

5

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, 3/4-16 inch flare, used with Ref. 4, 6, and 7, if used

1шт.

6

D147588

PIPE

TUBE - steering pressure, to hose at steering valve, used with Ref. 4, 5, and 7, if used

1шт.

7

D146135

HOSE

- 1000 mm long, steering pressure, loader control valve to steering control valve lower right-hand port, used with Ref. 4-6, if used, Includes: Ref. 8

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - steering control, for correct assembly and components, see figures 5-10 - 5-13A

1шт.

10

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 inch flare x O-ring boss, if used, Incl. Ref. 11

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

12

D146136

HOSE

- 1000 mm long, steering pilot, steering control valve small center port to loader control valve, used with Ref. 10 and 13-15, if used

1шт.

13

D147590

PIPE

TUBE - steering pilot, to tube at steering control valve, used with Ref. 10 - 12, 14 and 15, if used

1шт.

14

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR - straight, 9/16-18 inch flare, used with Ref. 10-13 and 15, if used

1шт.

15

D147586

PIPE

TUBE - steering pilot, to loader control valve, used with Ref. 10 - 14, if used

1шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 17

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

18

D143188

HOSE ASSY.

HOSE - 570 mm long, steering control valve upper and lower left-hand ports to tubes, Includes: Ref. 19

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

D146282

PIPE

TUBE - lower, to steering cylinder right-hand port hose

1шт.

21

D146280

PIPE

TUBE - upper, to steering cylinder left-hand port hose

1шт.

22

D143846

CLAMP

- Tube

3шт.

23

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

24

492-11038

LOCK WASHER,3/8"

6шт.

25

D149944

SPACER

- special, tube clamp, replaces D149139

3шт.

26

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

4шт.

27

D146520

CLAMP

- tube

1шт.

28

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

29

D124648

HOSE

- 500 mm long, at steering cylinder

2шт.

30

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj. O-ring boss, Incl. Ref 31

2шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

32

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, for correct assembly and components see figure 5-14

1шт.

33

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAReRefef. 34

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

35

D150056

HOSE

- 1200 mm long, steering return, steering control valve upper right-hand port to hydraulic oil filter, used with 218-5059 adapter, Ref. 33

1шт.

36

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, may be used with or without Ref. 47 elbow, if used, Includes: Ref. 37

1шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

38

D150345

GUIDE

- hose, steering pressure and steering pilot hoses, Ref. 7 and 12

1шт.

39

D150829

HOSE

- 1200 mm long, steering return, steering control valve upper right-hand port to hydraulic oil filter, replaces hose and adapter on some models, Ref. 33 and 35, Includes: Ref. 40

1шт.

40

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

41

D150741

TUBE

- steering pressure, at loader valve, used with Ref. 42 and 43, replaces two piece tube on some models, if used

1шт.

42

D149871

- 1125 mm long, steering pressure, loader control valve to steering control valve lower right-hand port, used with Ref. 41 tube, Includes: Ref. 43

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

44

D150739

TUBE

- steering pilot, to loader control valve, used with Ref. 45 and 46, replaces two piece tube on some models

1шт.

45

D150828

HOSE

- 1125 mm long, steering pilot, steering control valve small center port to loader control valve, used with Ref. 44, Includes: Ref. 46

1шт.

46

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

47

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 deg, 3/4-16 inch flare x swivel straight thread, used with Ref. 36 adapter on some models, if used

1шт.

48

218-5529

ELBOW,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

- 45 deg, 3/4-16 flare x 9/16-18 inch adj. O-ring boss, replaces Ref. 36 and 47 adapter and elbow on some models, if used, Includes: Ref. 49

1шт.

49

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

50

D151077

TUBE ASSY.

TUBE - steering pressure, at loader valve, used with Ref. 42 and 43, may replace Ref. 41 on some models, if used

1шт.
