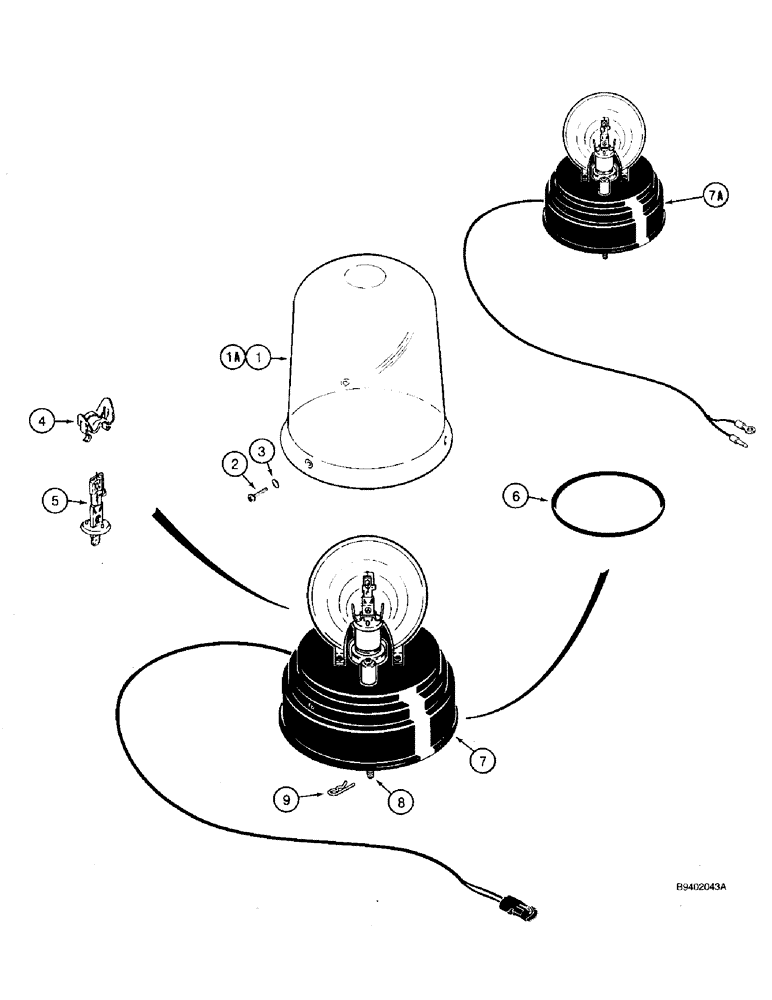

Запчасти Case 590 (4-54) - ROTATING BEACON, USED ON CAB OR CANOPY MODELS (04) - ELECTRICAL SYSTEMS

D147114

LIGHT, WARNING

BEACON ASSEMBLY - rotating, with plastic connector, no longer available, order 108366A1, Includes: Ref. 1 - 9

1шт.

108366A1

BEACON

Assy, Rotating, with eyelet and bullet connector, if used, Includes: Ref. 1 - 9

1шт.

1

A187542

LENS

- beacon, amber, if used

1шт.

1a

127158A1

LENS

- beacon, blue, if used

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

- drive, round head, No. 8 x 1/2 inch, Lens mounting

3шт.

3

238-5005

O-RING,0.094" ID x 0.062" Width

-005, 70 Duro, .101" ID x .070" Thk, Lens mounting screw (Replaces S5598 O-ring)

3шт.

4

101531A1

CLIP

- bulb

1шт.

5

3217312R1

BULB,H1, 12V, 55W

12V - 55W, Halogen, Rotating beacon

1шт.

6

A187575

O-RING

Drive Motor, Rotating Beacon

1шт.

7

NSS

NOT SOLD SEPARAT

BASE - with drive motor, D147114 rotating beacon

1шт.

7a

NSS

NOT SOLD SEPARAT

BASE - with drive motor, 108366A1 rotating beacon

1шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

9

136-54

PIN

- hair, 1/4 x 11/16 inch, bolt retaining

3шт.
