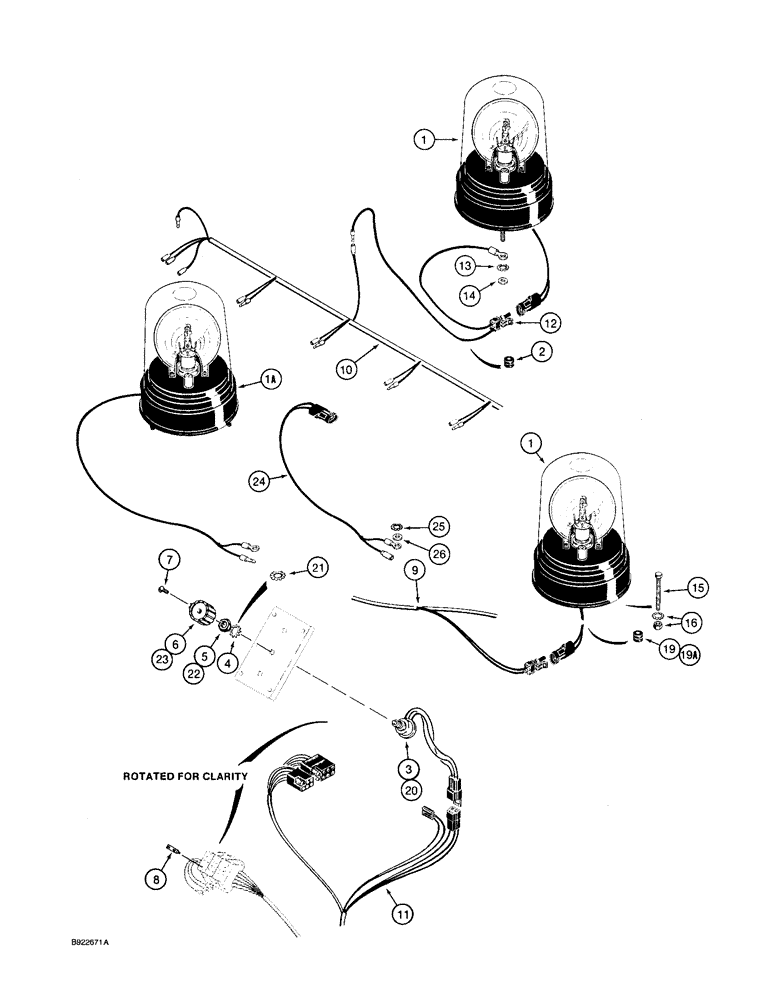

Запчасти Case 590 (4-52) - ROTATING BEACON AND CIRCUIT (04) - ELECTRICAL SYSTEMS

1

D147114

LIGHT, WARNING

BEACON ASSEMBLY - rotating, with plastic connector, used on cab or canopy models, parts list figure 4-54, no longer available, order 108366A1

1шт.

1a

108366A1

BEACON

Assy, Rotating, with eyelet and bullet connector, Cab or canopy models, Parts list figure 4-54, if used

1шт.

2

A23870

GROMMET

- rear wire, used on canopy models

1шт.

D138377

SWITCH

ASSEMBLY - two-position, rotating beacon, with octagonal shaft, no longer available, order D149893 switch and D149932 knob, Ref. 20 - 23, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

SWITCH - rotating beacon

1шт.

4

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER - external tooth lock, 1/2 inch

1шт.

5

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

6

A141735

KNOB

- D138377 rotating beacon switch, with octagonal shaft, see figure 9-150 for rotating beacon symbol decal, if used

1шт.

7

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, pan head slotted, No. 8 NC x 1/2 inch

1шт.

8

A149801

FUSE,Lt Blue, 15 Amp

- 15 amperes, light blue, mounts in fuse holder in side instrument console harness

1шт.

9

REF

INSTRUCTION

HARNESS - cab models, see figure 9-118 for harness options

1шт.

10

D146580

HARNESS

- ROPS canopy models

1шт.

11

REF

INSTRUCTION

HARNESS - side console, right-hand, see figure 4-26 for harness options

1шт.

12

D148584

ELECTRICAL WIRE

WIRE - adapting, used on canopy models, if used

1шт.

13

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

ground, used with D148584 wire on canopy models, if used Ext-Int Tooth, 1/4"

1шт.

14

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch, used with D148584 wire on canopy models, if used

1шт.

15

113-75

BOLT,Hex, 1/4" - 20 x 3", Gr 5, Full Thd

- hex, full thread, 1/4 NC x 3 inch, replaces existing beacon studs, used on cab models

3шт.

16

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex, with external tooth lock washer, 1/4 inch NC, used with Ref. 15 bolt on cab models

3шт.

19

L77821

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

- rear wire, used on cab models with plastic roof cap

1шт.

19a

A23870

GROMMET

- rear wire, used on cab models without plastic roof cap

1шт.

133818A1

SWITCH

ASSEMBLY - two-position, rotating beacon, with square shaft, replaces D138377 and D149893, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

SWITCH - rotating beacon

1шт.

21

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

1шт.

22

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

23

D149932

KNOB

KNOB - D149893 rotating beacon switch with square shaft, if used

1шт.

24

109202A1

ELECTRICAL WIRE

WIRE - adapting, if used

1шт.

25

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

ground, used with 109202A1 wire, if used Ext-Int Tooth, 1/4"

1шт.

26

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch, ground, used with 109202A1 wire, if used

1шт.
