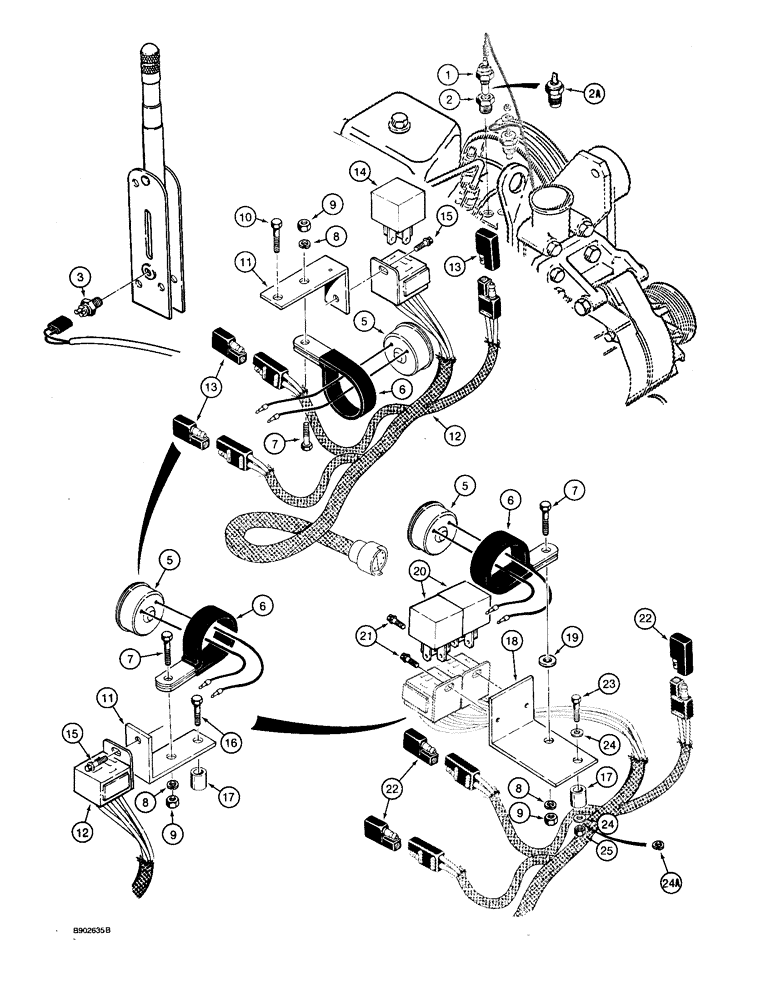

Запчасти Case 590 (4-50) - SPECIAL PARTS USED ON MODELS W/ AUDIBLE WARNING ALARM FOR WATER TEMPERATURE, ENG. OIL PRESSURE (04) - ELECTRICAL SYSTEMS

1

D70163

SWITCH,1/4" - 18 NPT, 230 Degrees F

- engine coolant temperature, replaces existing engine block plug, used with 221-1088 reducer, no longer used, order 1345488C2 switch, Ref. 2A and remove 221-1088 reducer

1шт.

2

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

- pipe, 1/2 male x 1/4 inch female, used with D70163 switch, if used, replaces 221-1088

1шт.

2a

1345488C2

PRESSURE SWITCH

SWITCH - 225 degree, engine coolant temperature, replaces Ref. 1 and 2 on some models (replaces 1345488C1, 235 degree switch)

1шт.

3

D136514

SWITCH

- parking brake, mounts in parking brake lever on figure 7-12 and attaches to front instrument panel harness

1шт.

5

D137468

BUZZER

ALARM - warning, for engine water temperature, engine oil pressure, and parking brake

1шт.

6

D120561

CLAMP

- warning alarm, Serial Range: mounting-bracket

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Alarm clamp to bracket Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

9

425-106

NUT,3/8"-16, Cl 5

1шт.

10

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

If used Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

D103387

KIT

- service, audible warning alarm, if used, order components and 8-76100 instruction sheet, Includes: Ref. 11 - 15

1шт.

11

D143873

SUPPORT

BRACKET - alarm mounting, uses existing mounting bolt, mounts under side console

1шт.

12

D146664

HARNESS

WIRE - alarm, uses three diodes, attaches to D147040 side instrument console harness on figure 4-26, Serial Range: -JJG0206513

1шт.

13

L71879

DIODE ELEMENT,400V, 3A

DIODE - isolation

3шт.

14

D128310

RELAY

- alarm

1шт.

D128310 relay is marked 40 amp on the relay-this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature.

1шт.

15

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - self-tapping, hex washer head, No. 10 NC x 3/8 inch, relay mounting

1-2шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch, if used

1шт.

17

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- bracket, if used, replaces D76209

1шт.

18

103393A1

BRACKET

- alarm mounting, mounts under side console, if used

1шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), If used 3/8", SAE

1шт.

20

D128310

RELAY

- alarm, attaches to 101597A1 side console harness

2шт.

21

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - self-tapping, hex washer head, No. 10 NC x 3/8 inch, relay mounting

2шт.

22

L71879

DIODE ELEMENT,400V, 3A

DIODE - isolation, 101597A1 side console harness, Start Serial: JJG0206513

3шт.

23

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

24

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), if used 3/8"

2шт.

24a

492-11038

LOCK WASHER,3/8"

1шт.

25

425-106

NUT,3/8"-16, Cl 5

1шт.
