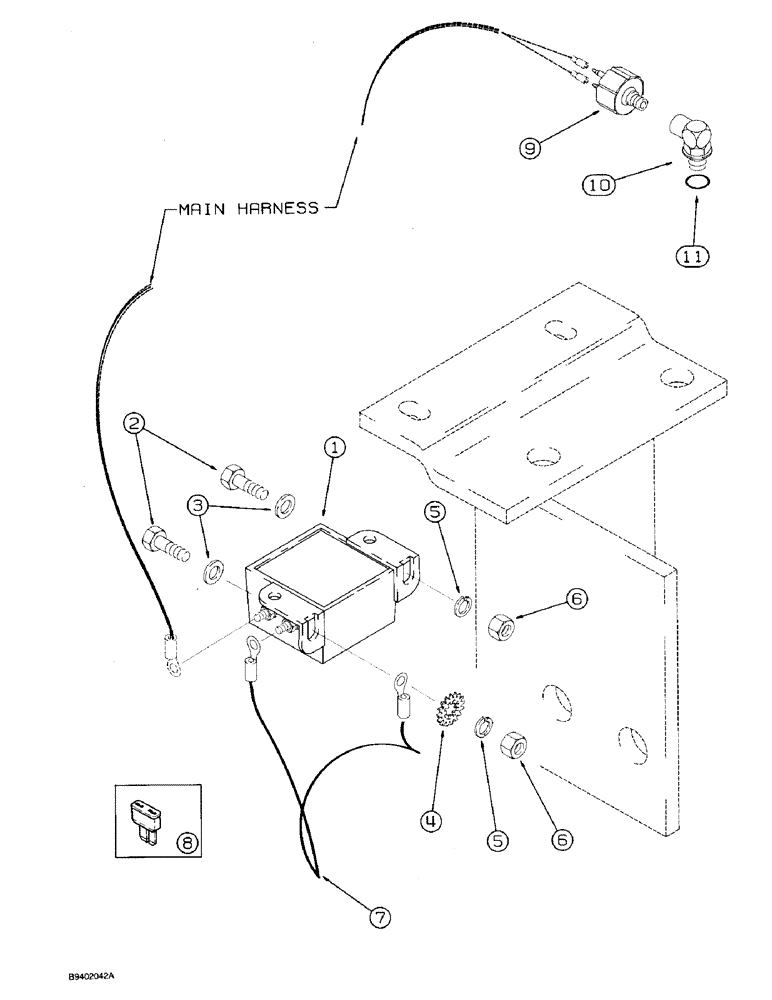

Запчасти Case 590 (4-49A) - BACKUP ALARM, P.I.N. JJG0206623 AND AFTER (04) - ELECTRICAL SYSTEMS

1

109511A1

ALARM

- backup, mounts to 109689A1, backhoe valve mounting bracket, figure 9-2

1шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

4

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

1шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

7

D70125

ELECTRICAL WIRE

WIRE - ground

1шт.

8

A149798

FUSE

- 5 ampere (tan), at fuse block

1шт.

9

D139904

SWITCH

- pressure, backup alarm

1шт.

10

D144477

FITTING

ELBOW - 90 degree, at transaxle, Includes: Ref. 11

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
