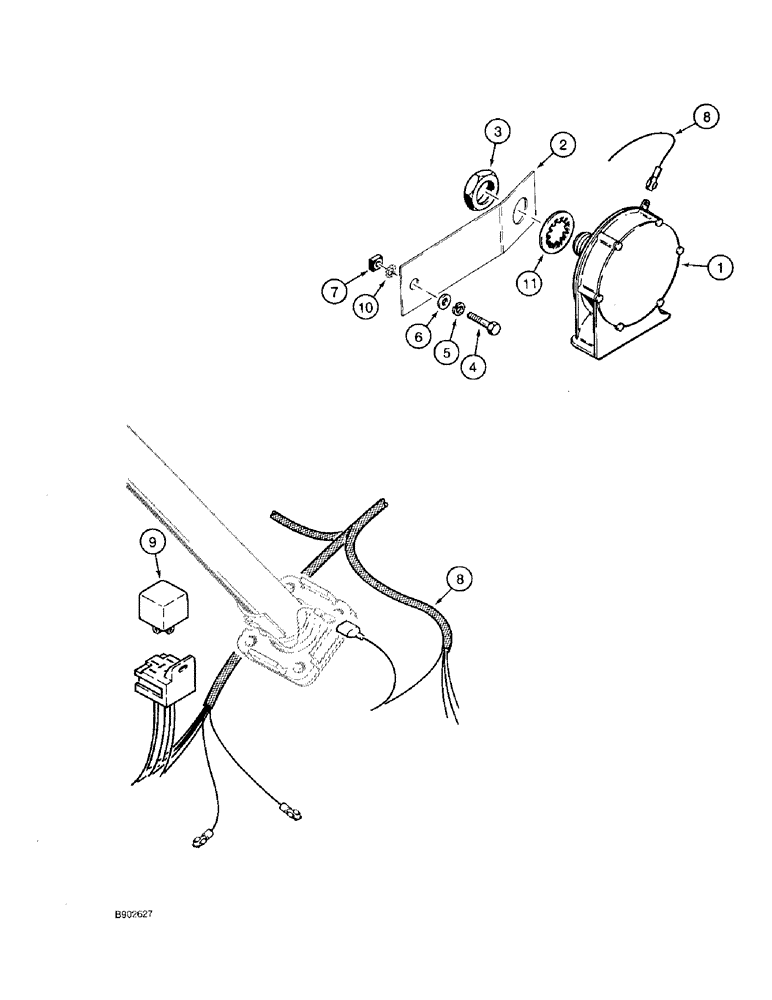

Запчасти Case 590 (4-46) - HORN (04) - ELECTRICAL SYSTEMS

1

D123205

HORN

- 12 volt

1шт.

2

D147455

BRACKET

- horn mounting

1шт.

3

L30866

LOCK NUT

- hex, 7/8 NC, special

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

7

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- square, 5/16 inch NC

1шт.

8

REF

INSTRUCTION

HARNESS - instrument, front console, see figure 4-24 for front harness options and mounting

1шт.

9

D128310

RELAY

- horn, attaches to front console instrument harness

1шт.

D128310 relay is marked 40 amp on the relay-this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature.

1шт.

10

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

11

493-21091

LOCK WASHER,Int Tooth, 7/8"

WASHER - lock, internal tooth, 7/8 inch

1шт.
