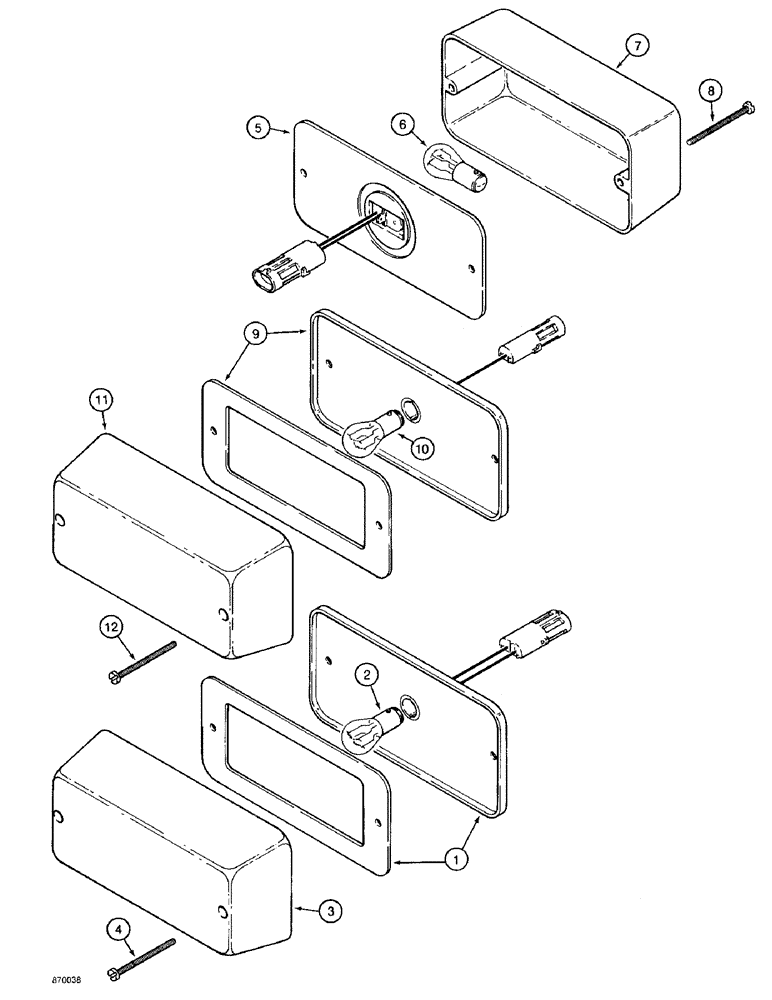

Запчасти Case 590 (4-44) - CAB TRACTOR LAMPS, STOP AND TAIL LAMPS AND, TURN SIGNAL AND FLASHER LAMPS (04) - ELECTRICAL SYSTEMS

92260C1

LAMP,12V, 27W, Red

ASSEMBLY - stop and tail, with red lens, Includes: Ref. 1 - 4A

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp, complete, stop and tail

1шт.

2

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157, stop and tail

1шт.

3

216045C1

LENS

- red, lamp, stop and tail

1шт.

4

86982775

SCREW,Slotted Fil Hd, #10-24 x 2"

- machine, Fillister head, No. 10 NC x 2 inch, lens retaining, replaced by Ref. 4A, 261-54536, stop and tail

2шт.

4a

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

SCREW - pan head machine, No. 10-24 NC x 2-1/4 inch, if used, not shown, stop and tail

2шт.

92259C1

LIGHT, WARNING

LAMP ASSEMBLY - turn signal and flasher, front, with amber lens, Includes: Ref. 5 - 8

2шт.

5

NSS

NOT SOLD SEPARAT

BODY AND SOCKET - lamp, complete, turn signal and flasher front

1шт.

6

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157, turn signal and flasher, front

1шт.

7

130883C1

LENS

- amber, lamp, turn signal and flasher front

1шт.

8

86982775

SCREW,Slotted Fil Hd, #10-24 x 2"

- machine, Fillister head, No. 10 NC x 2 inch, lens retaining, turn signal and flasher front

2шт.

92258C1

LIGHT, WARNING

LAMP ASSEMBLY - turn signal and flasher, rear, with amber lens, Includes: Ref. 9 - 12

2шт.

9

NSS

NOT SOLD SEPARAT

BODY AND SOCKET - lamp, complete, turn signal and flasher, rear

1шт.

10

A41264

BULB,#1156, 12V

Lamp, Turn signal and flasher, Rear, Replaces 9417866) #1156, 12V

1шт.

11

130883C1

LENS

- amber, lamp, turn signal and flasher, rear

1шт.

12

86982775

SCREW,Slotted Fil Hd, #10-24 x 2"

- machine, Fillister head, No. 10 NC x 2 inch, lens retaining, turn signal and flasher, rear

2шт.
