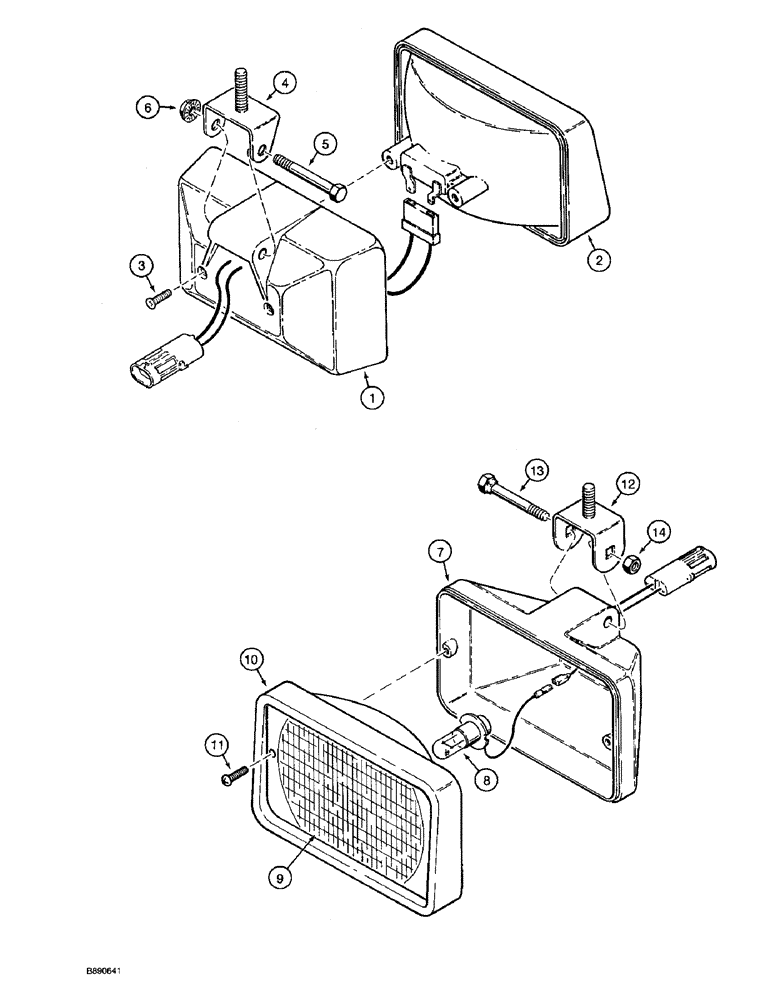

Запчасти Case 590 (4-40) - CAB TRAC. LAMPS - PLASTIC CONNECTORS, PRIOR TO CAB SERIAL NUMBER JAB0023786 (04) - ELECTRICAL SYSTEMS

R54411

LAMP

ASSEMBLY - front driving, may receive either Hobbs or ABL complete lamp assembly, see below for service, Includes: Ref. 1 - 14

2шт.

A187666

LIGHT ASSY.

LAMP ASSEMBLY - Hobbs, with glare guard, with 3/8 inch mounting stud, order R54411, Includes: Ref. 1 - 6

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lamp, front driving assembly

1шт.

2

A187912

LAMP,12V, 50W

- sealed beam, Hobbs lamp, designated on lens as SW, front driving assembly

1шт.

3

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, flat slotted, No. 8-18 x 1/2 inch, front driving lamp assembly

2шт.

4

A187914

BRACKET

- mounting, lamp, front driving assembly

1шт.

5

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Housing to bracket, front driving lamp assembly Hex, 1/4"-20 x 2", G5

1шт.

6

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

- hex, self-locking, 3/8 inch NC, front driving lamp assembly

1шт.

92264C1

LAMP

ASSEMBLY - ABL, without glare guard, with 10 mm mounting stud, order R54411, front driving, Includes: Ref. 7 - 14

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - lamp, front driving assembly

1шт.

8

1312210C1

BULB

- lamp, front driving assembly

1шт.

9

1983290C1

LENS

- lamp, front driving assembly

1шт.

10

1964806C1

BEZEL

RETAINER - lens, front driving lamp assembly

1шт.

11

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - self-tapping, pan Phillips, No. 8-16 x 3/4 inch, front driving lamp assembly

2шт.

12

A187915

BRACKET

- mounting, lamp, front driving lamp assembly

1шт.

13

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- shoulder, hex, 8 mm x 45 mm, housing to bracket, front driving lamp assembly

1шт.

14

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm class 10.9, front driving lamp assembly

1шт.

R54412

LAMP, WORK

LAMP ASSEMBLY - rear flood and optional front and rear work lamps, may receive, either Hobbs or ABL complete lamp assembly, see below for service, Includes: Ref. 1 - 6

2-6шт.

A187665

LIGHT ASSY.

LAMP ASSEMBLY - Hobbs, with glare guard, with 3/8 inch mounting stud, order R54412, front driving, rear flood, and optional front and rear work lamps, Includes: Ref. 1 - 6

2-6шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lamp, front driving, rear flood, and optional front and rear work lamps.

1шт.

2

A187911

LAMP

- sealed beam, Hobbs lamp, designated on lens as SW, front driving, rear flood, and optional front and rear work lamps.

1шт.

3

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, flat slotted, No. 8-18 x 1/2 inch, front driving, rear flood, and optional front and rear work lamps.

2шт.

4

A187914

BRACKET

- mounting, lamp, front driving, rear flood, and optional front and rear work lamps.

1шт.

5

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Housing to bracket, front driving, rear flood, and optional front and rear work lamps. Hex, 1/4"-20 x 2", G5

1шт.

6

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

- hex, self-locking, 3/8 inch NC, front driving, rear flood, and optional front and rear work lamps.

1шт.

92263C1

LIGHT ASSY.

LAMP ASSEMBLY - ABL, without glare guard, with 10 mm mounting stud, order R54412, front driving, rear flood, and optional front and rear work lamps, Includes: Ref. 7 - 14

2-6шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - lamp, front driving, rear flood, and optional front and rear work lamps.

1шт.

8

1312210C1

BULB

- lamp, front driving, rear flood, and optional front and rear work lamps.

1шт.

9

1964807C1

LAMP BASE

LENS - reflector, lamp, front driving, rear flood, and optional front and rear work lamps.

1шт.

10

1964806C1

BEZEL

RETAINER - lens, front driving, rear flood, and optional front and rear work lamps.

1шт.

11

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - self-tapping, pan Phillips, No. 8-16 x 3/4 inch, front driving, rear flood, and optional front and rear work lamps.

2шт.

12

A187915

BRACKET

- mounting, lamp, front driving, rear flood, and optional front and rear work lamps.

1шт.

13

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- shoulder, hex, 8 mm x 45 mm, housing to bracket, front driving, rear flood, and optional front and rear work lamps.

1шт.

14

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm, class 10.9, front driving, rear flood, and optional front and rear work lamps.

1шт.
