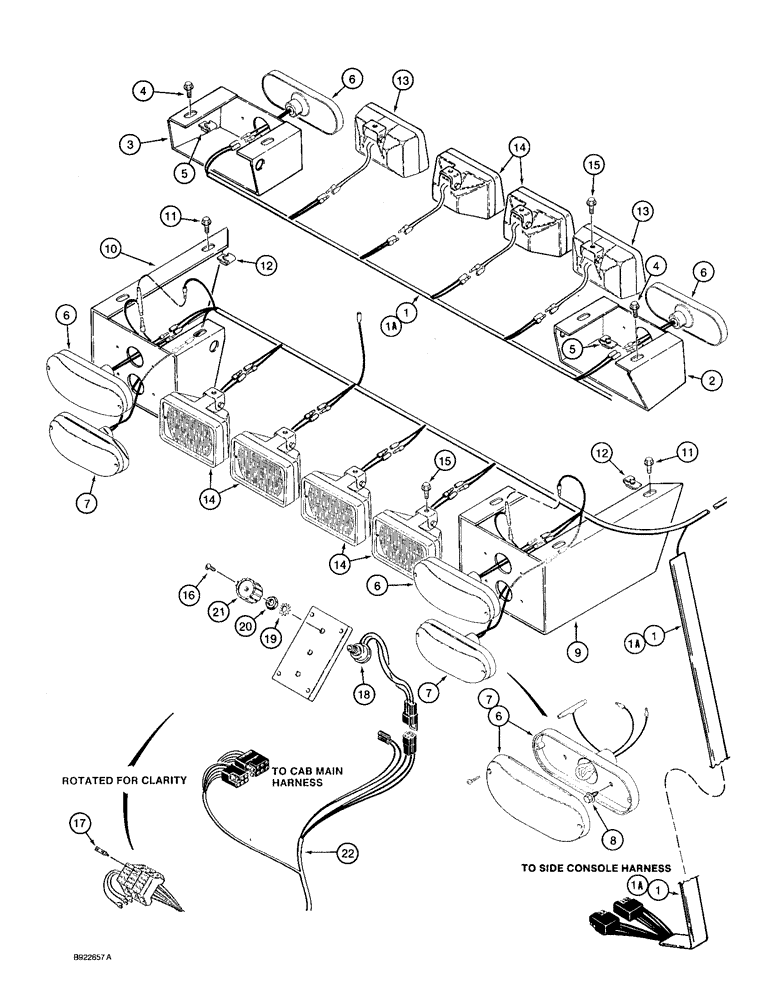

Запчасти Case 590 (4-37A) - TRAC. LAMP ELEC. CIRCUIT, W/ CAB, CAB MODELS W/O PLASTIC ROOF CAP, CAB S/N JAB0023786 & AFTER (04) - ELECTRICAL SYSTEMS

1

108961A1

HARNESS

- cab, main, with tapered rubber grommets, no longer available, order Ref. 1A, 133526A1, harness and (4) Ref. 23, 353-498, bushings

1шт.

1a

133526A1

HARNESS

- cab, main, without tapered rubber grommets, used with (4) Ref. 23, 353-498 bushings, see figure 9-118 for control panel

1шт.

2

108831A1

BRACKET

- right-hand front lamp

1шт.

3

108957A1

BRACKET

- left-hand front lamp

1шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex flanged, 3/8 NC x 3/4 inch

4шт.

5

131-880

NUT,J, Ret, 3/8"-16

- J-type, 3/8 inch NC

4шт.

6

D135384

LAMP,12V

ASSEMBLY - turn signal and flasher, front and rear, amber, parts list figure 4-42

4шт.

7

D121152

LAMP,12V

ASSEMBLY - stop and tail, rear, red, parts list figure 4-42

2шт.

8

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - self-tapping, hex washer head, No. 10 NC x 3/8 inch

12шт.

9

108834A1

BRACKET

- right-hand rear lamp

1шт.

10

108959A1

BRACKET

- left-hand rear lamp

1шт.

11

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex flange, 3/8 NC x 3/4 inch

6шт.

12

131-880

NUT,J, Ret, 3/8"-16

- J-type, 3/8 inch NC

6шт.

13

109080A1

LAMP,12V, 50W

ASSEMBLY - front driving, outer, parts list figure 4-41A

2шт.

14

109081A1

SPOTLIGHT

LAMP ASSEMBLY - front center and rear flood, parts list figure 4-41A

6шт.

15

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

- hex flange, 3/8 NC x 1/2 inch

8шт.

16

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, pan head slotted, No. 8 NC x 1/2 inch

1шт.

17

A149802

FUSE

- 20 amperes, mounts in fuse holder in side console harness

1шт.

D151015

SWITCH

ASSEMBLY - four-position, separate switching of optional front and rear work lamps, with square shaft, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

SWITCH - optional front and rear work lamps

1шт.

19

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

1шт.

20

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

21

D149932

KNOB

KNOB - D151015 optional work lamp switch with square shaft, if used

1шт.

22

REF

INSTRUCTION

HARNESS - instrument, side console, see figure 4-26 for harness options

1шт.

23

353-498

BUSHING

- snap, 11/16 ID, used as a grommet, cab lamp mounting bracket

4шт.
