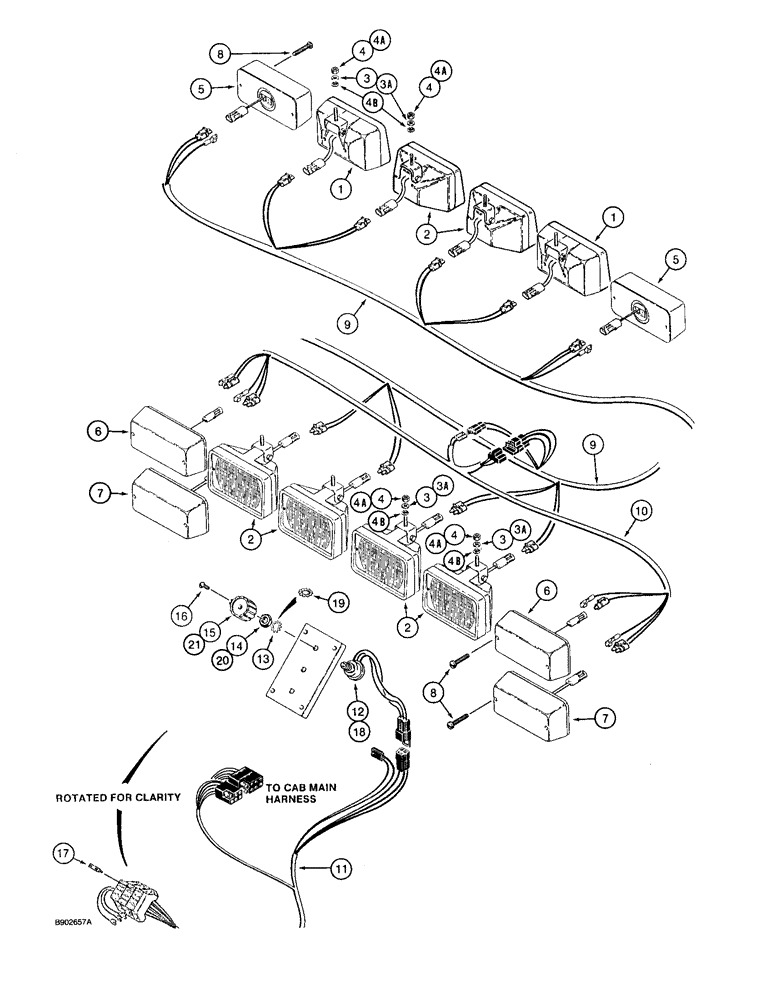

Запчасти Case 590 (4-36) - TRACTOR LAMP ELEC. CIRCUIT, W/ CAB, CAB MODELS W/ PLASTIC ROOF CAP, PRIOR TO CAB S/N JAB0023786 (04) - ELECTRICAL SYSTEMS

1

R54411

LAMP

ASSEMBLY - front driving, parts list figure 4-40

2шт.

2

R54412

LAMP, WORK

LAMP ASSEMBLY - rear flood (outer) and optional front and rear work lamps (center), parts list figure 4-40

2-6шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Used with Hobbs (SW) lamps 3/8", SAE

4-8шт.

3a

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm, Used with ABL lamps

4-8шт.

4

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - light hex, self-locking, 3/8 inch NC, used with Hobbs (SW) lamps

4-8шт.

4a

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Used with ABL lamps M10 x 1.5, Cl 8

4-8шт.

4b

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

Hex, Used in addition to flat washer and nut on some models Push, Bolt Retainer, 3/8" x 25/32"

4-8шт.

5

92259C1

LIGHT, WARNING

LAMP ASSEMBLY - flasher and turn signal, front of cab only, parts list figure 4-44

2шт.

6

92258C1

LIGHT, WARNING

LAMP ASSEMBLY - flasher and turn signal, rear of cab only, parts list figure 4-44

2шт.

7

92260C1

LAMP,12V, 27W, Red

ASSEMBLY - stop and tail lamp, parts list figure 4-44

2шт.

8

169-170

SCREW - machine, Fillister head, No. 10 NC x 2 inch

12шт.

9

REF

INSTRUCTION

HARNESS - cab, main, see figure 9-118 for harness options and control panel

1шт.

10

R53636

HARNESS

- rear lamp, attaches to main cab harness

1шт.

11

REF

INSTRUCTION

HARNESS - instrument, side console, see figure 4-26 for harness options

1шт.

D141394

SWITCH

ASSEMBLY - four-position, separate switching of optional front and rear work lamps, with octagonal shaft, no longer available, order D151015 switch and D149932 knob, Ref. 18 - 21, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

SWITCH - optional front and rear work lamps

1шт.

13

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER - external tooth lock, 1/2 inch

1шт.

14

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

15

A141735

KNOB

- D141394 optional work lamp switch with octagonal shaft, see figure 9-150, Ref. 47, for work lamp symbol decal, if used

1шт.

16

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, pan head slotted, No. 8 NC x 1/2 inch

1шт.

17

A149802

FUSE

- 20 amperes, mounts in fuse holder in side console harness

1шт.

D151015

SWITCH

ASSEMBLY - four-position, separate switching of optional front and rear work lamps, with square shaft, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

SWITCH - optional front and rear work lamps

1шт.

19

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

1шт.

20

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

21

D149932

KNOB

KNOB - D151015 optional work lamp switch with square shaft, if used

1шт.
