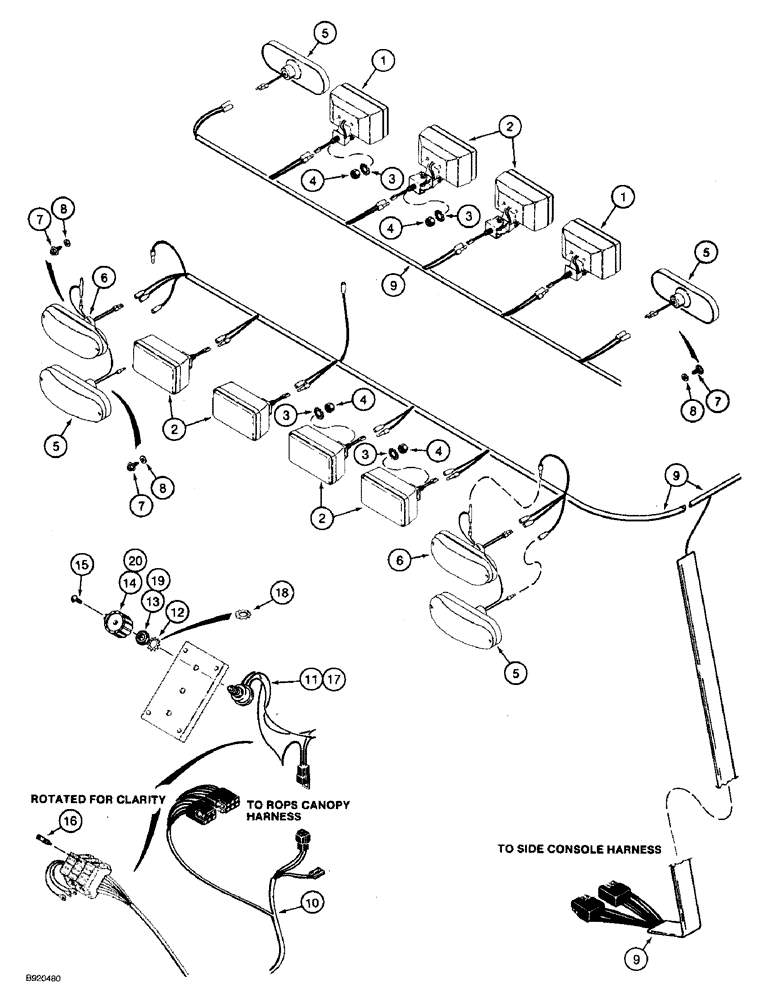

Запчасти Case 590 (4-34) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CANOPY (04) - ELECTRICAL SYSTEMS

1

D132681

LAMP,Halogen, 12V, 50W, Clear

ASSEMBLY - front driving, outer, parts list figure 4-38

2шт.

2

D132682

HEADLIGHT,Halogen, 12V, 50W, Clear

LAMP ASSEMBLY - rear flood (outer) and optional front and rear work lamps (center), parts list figure 4-38

2-6шт.

3

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

4-8шт.

4

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

4-8шт.

5

D135384

LAMP,12V

ASSEMBLY - turn signal and flasher, front and rear, amber, parts list figure 4-42

1шт.

6

D121152

LAMP,12V

ASSEMBLY - stop and tail, rear, red, parts list figure 4-42

2шт.

7

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - self-tapping, hex washer head, No. 10 NC x 3/8 inch, lamp, base to ROPS canopy frame

12шт.

8

495-31022

WASHER,#10

12шт.

9

D146580

HARNESS

- ROPS canopy, lamps, attaches to side console instrument harness, see figure 9-140 for harness cover that mounts to the ROPS canopy

1шт.

Harness is glued to the rops post... Purchase locally as Loctite 409.

1шт.

10

REF

INSTRUCTION

HARNESS - instrument, side console, see figure 4-26 for harness options and mounting

1шт.

D141394

SWITCH

ASSEMBLY - four-position, separate switching of optional front and rear work lamps, with octagonal shaft, no longer available, order D151015 switch and D149932 knob, Ref. 17 - 20, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

SWITCH - optional front and rear work lamps

1шт.

12

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER - external tooth lock, 1/2 inch

1шт.

13

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

14

A141735

KNOB

- D141394 optional work lamp switch with octagonal shaft, see figure 9-150, Ref. 47, for work lamp symbol decal, if used

1шт.

15

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, pan head slotted, No. 8 NC x 1/2 inch

1шт.

16

A149802

FUSE

- 20 amperes, mounts in fuse holder in side console harness

1шт.

D151015

SWITCH

ASSEMBLY - four-position, separate switching of optional front and rear work lamps, with square shaft, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

SWITCH - optional front and rear work lamps

1шт.

18

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

1шт.

19

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

20

D149932

KNOB

KNOB - D151015 optional work lamp switch with square shaft, if used

1шт.
