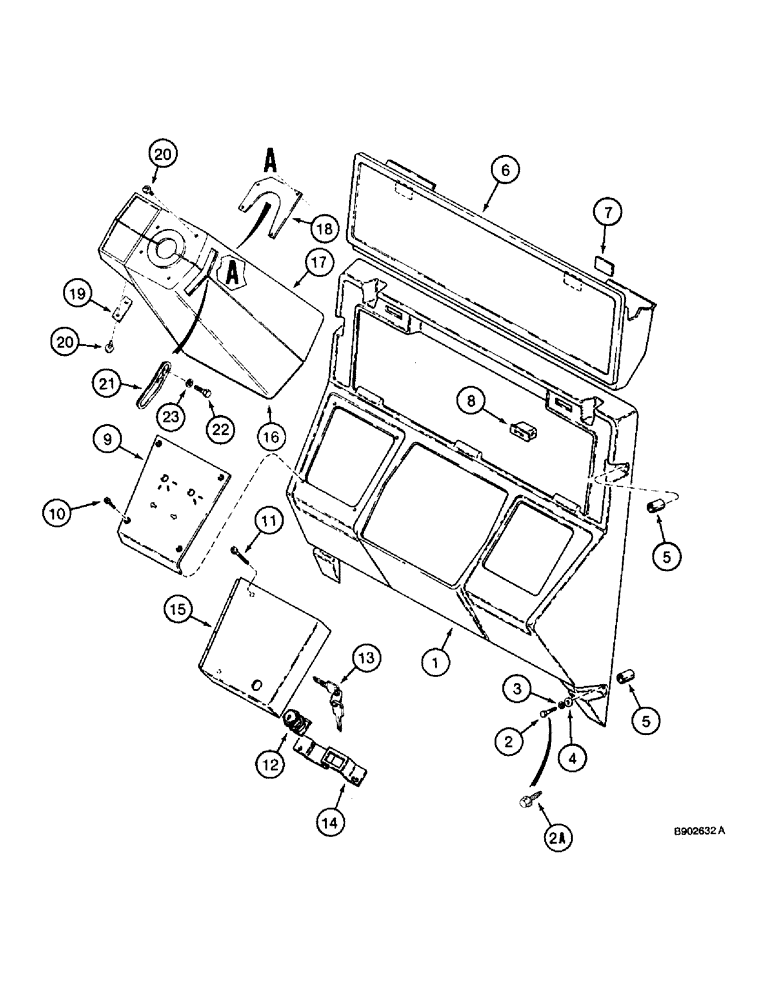

Запчасти Case 590 (4-28) - FRONT INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D134389
BRACKET
PANEL - instrument, front
1шт.
2
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
- hex, 5/16 NC x 1 inch, if used
6шт.
2a
114921A1
SCREW
- pointed, self-aligning, special, if used
6шт.
4
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
6шт.
5
102439A1
SPACER
- 13/32 x 1/2 x 3/8 inch, replaces D35217
2-4шт.
6
D134256
BOX
COMPARTMENT - storage, operators manual, see figure 9-150, Ref. 35 and 35A for decals
1шт.
7
D135903
PLATE
- steel, striker
2шт.
8
D127335
CATCH
Magnetic, Storage compartment
2шт.
9
D146194
LARGE PLATE
PLATE - switch mounting
1шт.
10
440-1108
SCREW,Cross Pan Hd, #10-24 x 1/2"
- machine, pan head Phillips, No. 10 NC x 1/2 inch
4шт.
11
140-117
SCREW,Cross Pan Hd, #10 - 24 x 1"
Used with Ref. 14 and 15 Cross Pan Hd, #10-24 x 1"
4шт.
12
D136738
LOCK
ASSEMBLY - includes two keys, anti-vandalism cover, ROPS canopy models, Includes: Ref. 13
1шт.
P/N D136738 Does not include keys per print.
1шт.
13
N14440
KEY
- cover lock
2шт.
14
D140938
BRACKET
- lower, switch plate, anti-vandalism, ROPS canopy models
1шт.
15
D140937
COVER
- front instrument panel, anti-vandalism, ROPS canopy models
1шт.
D143963
COVER
ASSEMBLY - two piece, steering column, see figure 9-150 for arrow decal, Includes: Ref. 16 - 20
1шт.
16
NSS
NOT SOLD SEPARAT
COVER - steering column, rear
1шт.
17
NSS
NOT SOLD SEPARAT
COVER - steering column, front
1шт.
18
D143710
LARGE PLATE
PLATE - retaining, upper
1шт.
19
D143711
LARGE PLATE
PLATE - retaining, side
1шт.
20
D148607
SCREW,#10 - 16 x 5/8"
- Phillips flat head, No. 10 NC x 5/8 inch, special
6шт.
21
E47509
SUPPORT
PLATE - cover, turn signal and horn lever mounting
1шт.
22
614-4008
BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd
- hex, 4 - 7 x 8 mm
2шт.
23
892-11004
LOCK WASHER,M4
WASHER, LOCK, M4
2шт.
Выбрано товаров: 26
