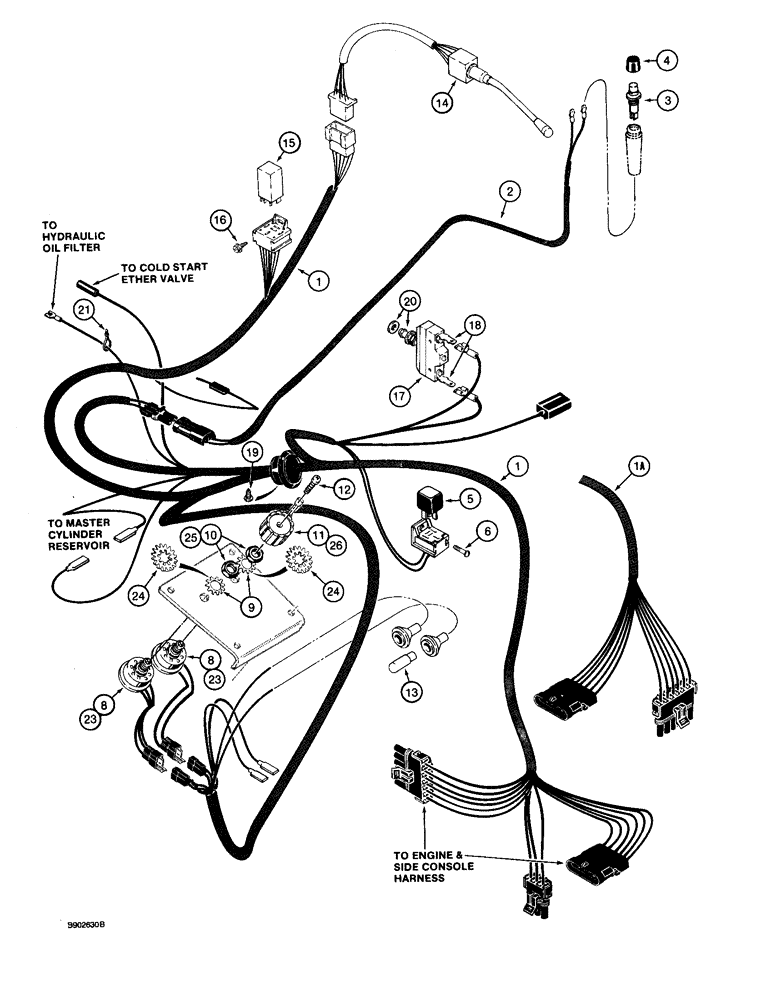

Запчасти Case 590 (4-24) - FRONT CONSOLE WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

D150199

HARNESS

- front console, Serial Range: -JJG0206513

1шт.

1a

101595A1

HARNESS

- front console, Start Serial: JJG0206513

1шт.

2

D147050

HARNESS

- loader control lever, to fast cycle switch, D150199 or 101595A1

1шт.

3

D141486

SWITCH

- fast cycle, loader control lever

1шт.

4

D138252

BOOT

COVER - switch

1шт.

5

D128310

RELAY

- 30 amperes, used on models with horn

1шт.

Relay is marked 40 amp on the relay-this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature.

1шт.

6

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - self-tapping, hex washer head, No. 10 NC x 3/8 inch, harness, relay socket mounting

1шт.

D138376

SWITCH

ASSEMBLY - front driving and rear flood lamps, three position with octagonal shaft, no longer available, order 133820A1 switch and D149932 knob, Includes: Ref. 8 - 10

1шт.

See Ref. 9 on figure 4-28 for switch mounting plate.

1шт.

D138377

SWITCH

ASSEMBLY - flasher lamps, two position with octagonal shaft, no longer available, order 133818A1 switch and D149932 knob, Includes: Ref. 8 - 10

1шт.

See Ref. 9 on figure 4-28 for switch mounting plate.

1шт.

8

NSS

NOT SOLD SEPARAT

SWITCH - D138376 or D138377

1шт.

9

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER - external tooth lock, 1/2 inch, D138376 or D138377 switch

1шт.

10

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

11

A141735

KNOB

- D138376 work lamp and D138377 flasher switches, with octagonal shaft, see figure 9-150 for lamp and flasher symbol decals if used

2шт.

12

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, pan head slotted, No. 8 NC x 1/2 inch

2шт.

13

D71346

TAIL LAMP,12V

BULB - light, No. 168

2шт.

14

E46938

FLASHER SWITCH

LEVER - switch, turn signal and horn

1шт.

15

D147166

FLASHER UNIT

SWITCH - flasher, see figure 5-2, Ref. 14, for socket mounting plate

1шт.

16

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - self-tapping, hex washer head, No. 10 NC x 3/8 inch, mounts flasher socket to plate on figure 5-2

1шт.

17

D148108

SWITCH

- brake lamp

1шт.

18

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL - Male

2шт.

19

187-1325

SELF-TAP SCREW,Sltd Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan head slotted, No. 10-16 x 1/2 inch

1шт.

20

495-81153

WASHER,.469" x 3/4" x .030"

- flat, 15/32 x 3/4 x 1/32 inch

2шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

133820A1

SWITCH

ASSEMBLY - front driving and rear flood lamps, three position with square shaft, includes Ref. 23 - 25 (replaces D138376 and D149931 switch)

1шт.

133818A1

SWITCH

ASSEMBLY - flasher lamps, two position with square shaft, includes Ref. 23 - 25 (replaces D138377 and D149893 switch)

1шт.

23

NSS

NOT SOLD SEPARAT

SWITCH - 133820A1 or 133818A1 switch

1шт.

24

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

1шт.

25

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

26

D149932

KNOB

KNOB - D149931, D149893, 133820A1, and 133818A1 switch with square shaft, if used

2шт.
