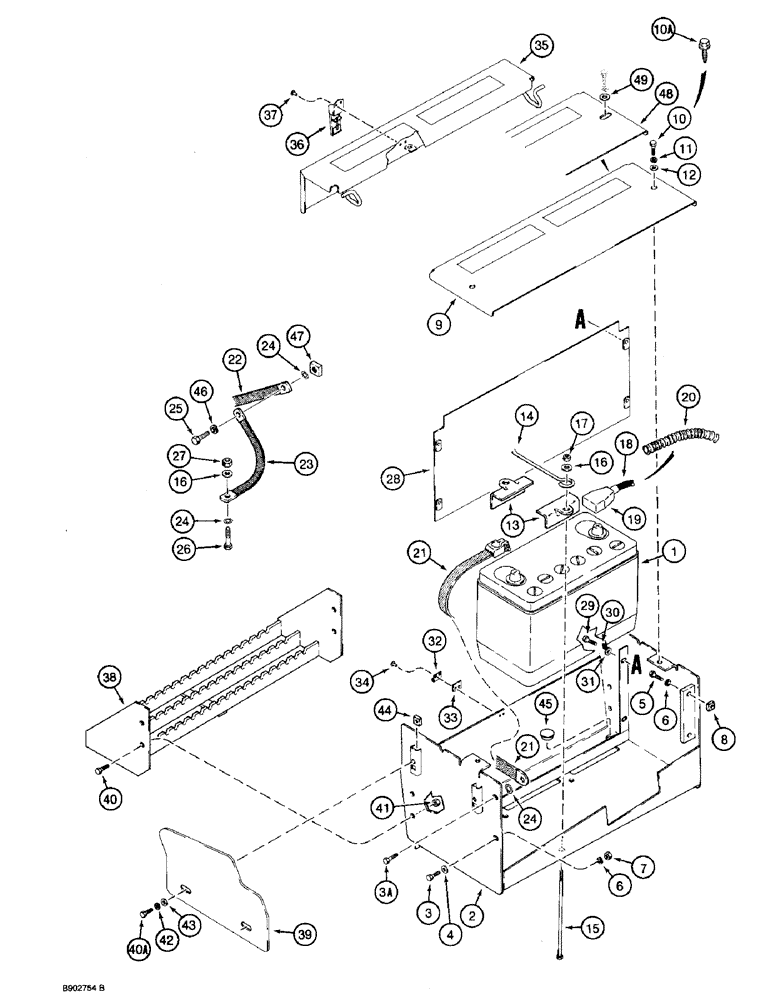

Запчасти Case 590 (4-18) - BATTERY, BATTERY BOX, TOOL BOX, AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

BATTERY - 12 volt, dry, service replacement

1шт.

For models with a dual battery cold start system, see figure 4-22.

1шт.

2

D147084

PLATE

BOX - battery and tool

1шт.

The part number for the cage that holds the nut on the side of the battery box is D88417

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, lower mounting hole

1шт.

3a

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, upper mounting hole

1шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

9

D146879

COVER

- battery box, 29/64 x 19/32 inch slot, no longer available, order D150818 cover and (2) 495-81002 washers, Ref. 48 and 49

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, if used

2шт.

10a

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

SCREW - pointed, self-aligning, special, if used, replaces 118978A1

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), D146879 cover, if used 3/8"

2шт.

13

D125079

BRACKET

- battery hold down

2шт.

14

D55561

RETAINER

- battery

1шт.

15

424-6160

BOLT,Hex, 3/8" - 16 x 10", Gr 2

- hex, 3/8 NC x 10 inch, grade 2

2шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

17

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC, grade 8

2шт.

18

D150244

CABLE

- 1650 mm long, positive, battery (replaces D146864 1600 mm long cable), Includes: Ref. 19

1шт.

19

383619R1

COVER

- cable, battery end, replaces A27072

1шт.

20

D150223

GUARD

SLEEVE - 1525 mm long, positive cable, guard

1шт.

21

D83485

CABLE,300mm L

STRAP - negative, at battery

1шт.

22

D127018

STRAP

- ground, engine

1шт.

23

D140369

GROUND STRAP,260mm L

STRAP - ground, pod and chassis

1шт.

24

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

4шт.

25

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.

28

D147669

DIVIDER

PLATE - divider, tool box

1шт.

29

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

30

492-11038

LOCK WASHER,3/8"

4шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

32

D131941

PLATE

STRIKER - tool box latch

1шт.

33

D150059

SPACER

- latch

1шт.

34

151-538

RIVET,Pop, 3/16" x .575"

- pop, 3/16 x 9/16 inch

2шт.

35

D147083

LID

COVER - tool box

1шт.

36

D150176

LATCH

- tool box

1шт.

37

151-539

RIVET,Pop, 3/16" x .450"

- pop, 3/16 x 13/32 inch

2шт.

38

D149922

STEP

- operator compartment access, left-hand, see figure 9-78, Ref.16, for right-hand step

1шт.

39

113158A1

GUARD

- mud, tool box (replaces D150028 and 104132A1 guard)

1шт.

40

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

40a

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

41

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC, grade 8

4шт.

42

492-11038

LOCK WASHER,3/8"

2шт.

43

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

44

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

45

1340318C1

PLUG,1" Hole, Nylon

2шт.

46

492-11038

LOCK WASHER,3/8"

1шт.

47

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

1шт.

48

D150818

COVER

- battery box, 29/64 x 3/4 inch slot

1шт.

49

495-81002

WASHER,3/8"

- flat, 7/16 x 1-3/8 x 5/64 inch, D150818 cover, if used

2шт.
