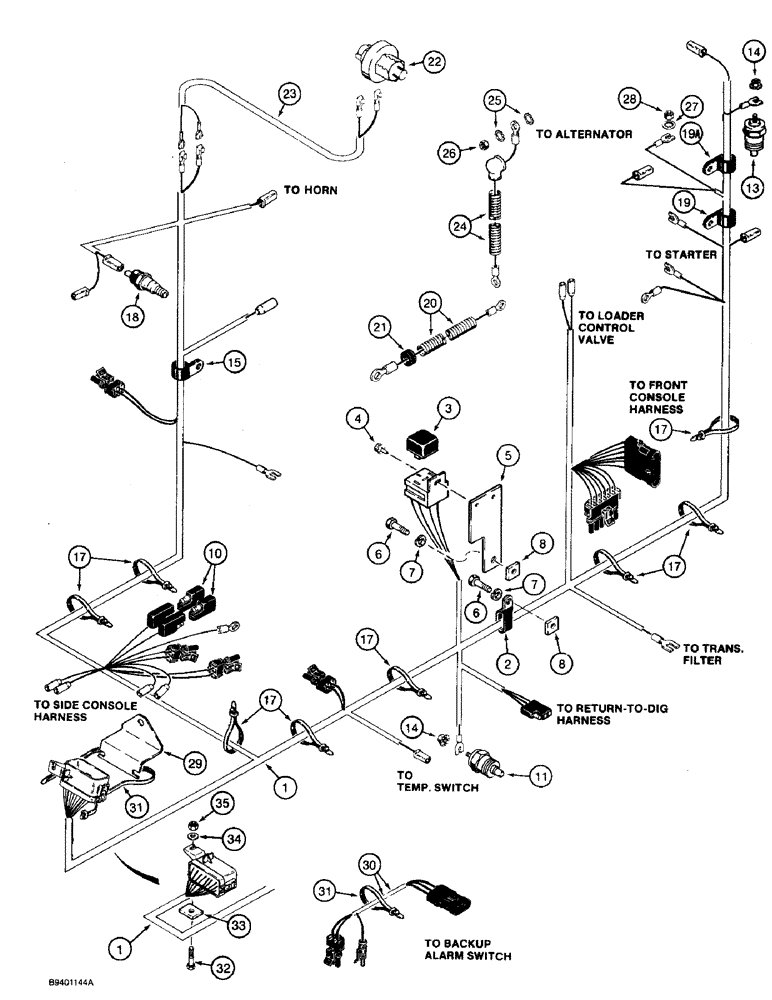

Запчасти Case 590 (4-17A) - ENGINE ELECTRICAL CIRCUIT, P.I.N. JJG0206513 AND AFTER (04) - ELECTRICAL SYSTEMS

1

109646A1

HARNESS

- engine, main, includes transaxle connections, (replaces 101596A1 harness)

1шт.

2

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- double, harness, use existing hardware

1шт.

3

D128310

RELAY

- 30 amperes, starter

1шт.

D128310 relay is marked 40 amp on the relay-this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature.

1шт.

4

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - self-tapping, hex washer head, No. 10 NC x 3/8 inch

1шт.

5

D149376

SUPPORT

PLATE - relay mounting

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

10

L71879

DIODE ELEMENT,400V, 3A

DIODE - alternator protecting

2шт.

11

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - transaxle temperature

1шт.

13

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - engine water coolant temperature

1шт.

14

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

2шт.

15

49859

CLAMP

- P-type, harness, left-hand side of engine, uses existing engine hardware

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

A162297

SWITCH

SENDER - oil pressure

1шт.

19

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- P-type, harness, uses existing engine hardware

1шт.

19a

D147383

CLIP,5/8" J

CLAMP - J-type, harness

1шт.

20

D150519

ELECTRICAL WIRE

WIRE - 1950 mm long, power, battery terminal on starter to cab relay

1шт.

21

D141118

GROMMET

- power wire

1шт.

22

1983233C1

RESTRICTION SWITCH

SENDER - air filter restriction indicator

1шт.

23

D140449

HARNESS

WIRE - jumper, restriction, Serial Range: indicator-harness

1шт.

24

D143830

CABLE

WIRE - 675 mm long, Serial Range: alternator-starter

1шт.

25

493-21033

LOCK WASHER,Int Tooth, 5/16"

WASHER - external tooth lock, 5/16 inch

2шт.

26

825-1408

NUT,M8, Cl 8

1шт.

27

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

28

825-1405

NUT,M5, Cl 8

1шт.

29

103271A1

BRACKET

- 101596A1 harness connector mounting, if used

1шт.

30

D150126

HARNESS

- air conditioning, chassis

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

5шт.

32

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

33

108535A1

WASHER

- special

1шт.

34

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

35

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.
