(4-16) - ENGINE ELECTRICAL CIRCUIT, PRIOR TO P.I.N. JJG0206513

Запчасти Case 590 (4-16) - ENGINE ELECTRICAL CIRCUIT, PRIOR TO P.I.N. JJG0206513 (04) - ELECTRICAL SYSTEMS

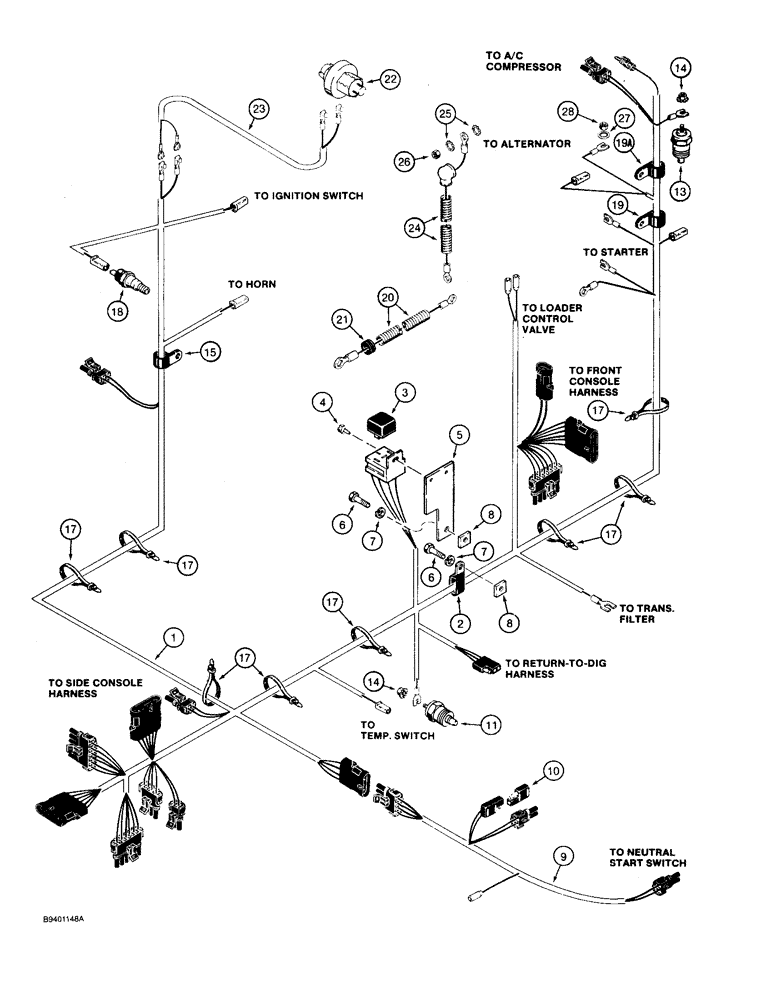

Схема запчастей Case 590 - (4-16) - ENGINE ELECTRICAL CIRCUIT, PRIOR TO P.I.N. JJG0206513 (04) - ELECTRICAL SYSTEMS
21
20
5
1
23
8
14
10
27
19
7
6
26
7
24
4
17
8
15
17
25
17
17
13
17
8
3
22
9
14
11
17
18
2
19a
28
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D150515

HARNESS

- engine, main (replaces D146028 harness), models with or without air conditioning

1шт.

2

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- double, harness

2шт.

3

1983394C1

RELAY

- 30 amperes, starter, replaces D128310

1шт.

4

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - self-tapping, hex washer head, No. 10 NC x 3/8 inch, replaces 187-576

1шт.

5

D149376

SUPPORT

PLATE - relay mounting

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

9

D144986

HARNESS

- transaxle

1шт.

10

L71879

DIODE ELEMENT,400V, 3A

DIODE - alternator protecting

1шт.

11

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - transaxle temperature

1шт.

13

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - engine water coolant temperature

1шт.

14

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

2шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- P-type, harness, left-hand side of engine, uses existing engine hardware

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

A162297

SWITCH

SENDER - oil pressure

1шт.

19

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- P-type, harness, uses existing engine hardware

1шт.

19a

D147383

CLIP,5/8" J

CLAMP - J-type, harness

1шт.

20

D150519

ELECTRICAL WIRE

WIRE - 1950 mm long, power, battery terminal on starter to cab relay (replaces D147514 2200 mm long wire)

1шт.

21

D141118

GROMMET

- power wire

1шт.

22

1983233C1

RESTRICTION SWITCH

SENDER - air filter restriction indicator

1шт.

23

D140449

HARNESS

WIRE - jumper, restriction, Serial Range: indicator-harness

1шт.

24

D143830

CABLE

WIRE - 675 mm long, Serial Range: alternator-starter

1шт.

25

493-21033

LOCK WASHER,Int Tooth, 5/16"

WASHER - external tooth lock, 5/16 inch

2шт.

26

825-1408

NUT,M8, Cl 8

1шт.

27

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

28

825-1405

NUT,M5, Cl 8

1шт.
