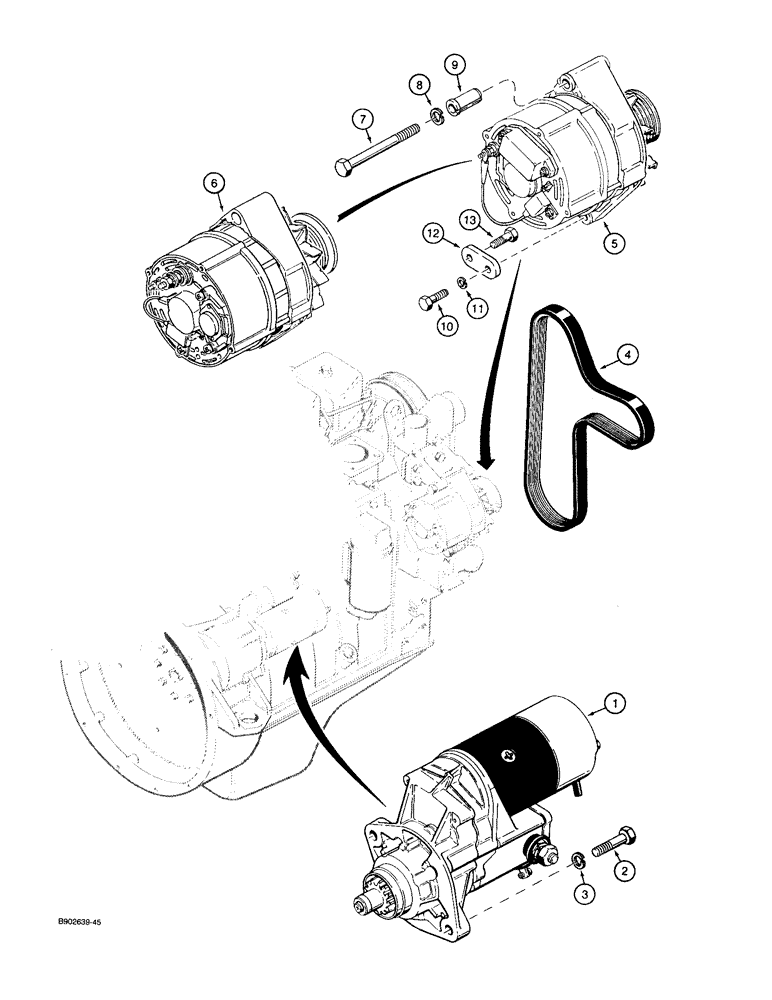

Запчасти Case 590 (4-12) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine, for correct assembly and components, see figure 4-2 and 4-4

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm

2шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Fan and Alternator 3.56 mm W x 1574.80 mm L, 8 Ribs

1шт.

5

A187873

ALTERNATOR,12V, 65A

ASSEMBLY - 65 ampere, parts list figure 4-6, if used

1шт.

5

A187873GV

ALTERNATOR

Value, 65A

1шт.

6

A187623

ALTERNATOR

ASSEMBLY - 95 ampere, parts list figure 4-8, if used

1шт.

6

A187623GV

ALTERNATOR

Value, 95 Amp

1шт.

7

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 mm x 100 mm

1шт.

8

892-11010

LOCK WASHER,M10

1шт.

9

J902469

SPACER

- alternator mounting

1шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 25 mm

1шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

J903089

SUPPORT

BRACE - alternator mounting

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 mm x 20 mm

1шт.
