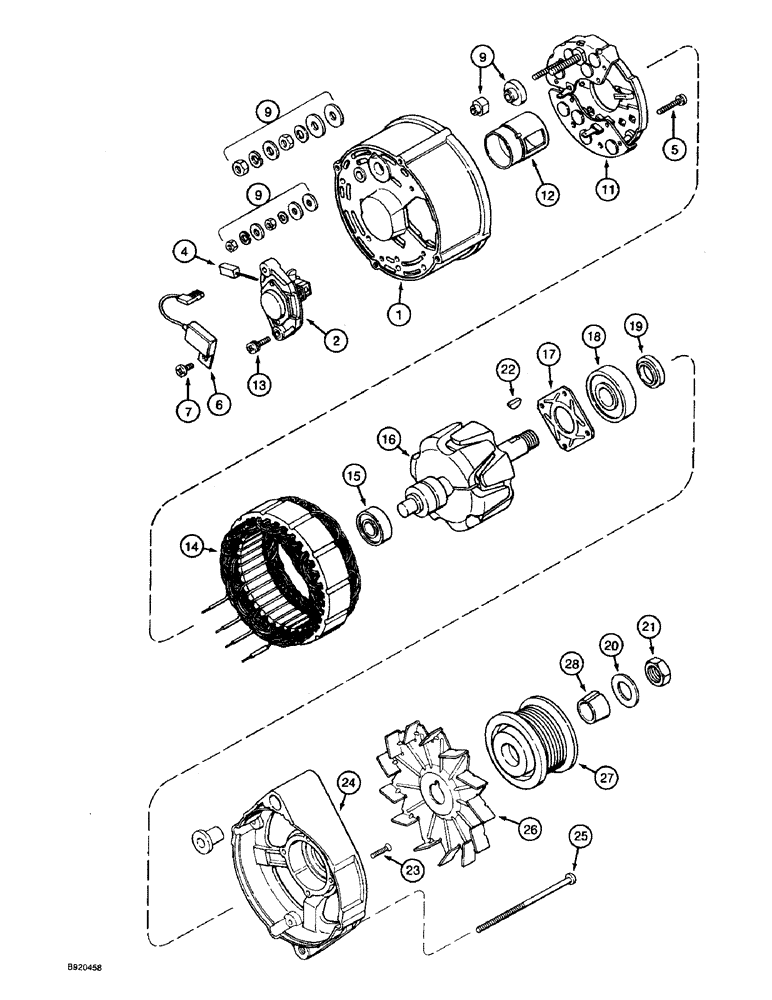

Запчасти Case 590 (4-08) - A187623 ALTERNATOR (04) - ELECTRICAL SYSTEMS

A187623

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 95 ampere, Includes: Ref. 1 - 25

1шт.

AR187623

REMAN-ALTERNATOR

Reman for New P/N A187623

1шт.

AC187623

CORE-ALTERNATOR

Return Part Number

1шт.

A187623GV

ALTERNATOR

Value, 95 Amp

1шт.

1

A187903

COVER

HOUSING - collector ring end

1шт.

2

A187906

VOLTAGE REGULATOR

REGULATOR - voltage

1шт.

4

1964968C1

COMMUTATOR BRUSH

BRUSH ASSEMBLY - alternator

1шт.

5

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

BOLT - retaining, with washer, replaces A187898

2шт.

6

3079134R1

CAPACITOR

CAPACITOR - alternator

1шт.

7

1964969C1

SCREW

SCREW - capacitor retaining

1шт.

9

A187904

MULTIPOLE CONNECTOR

SET - hardware, terminal

1шт.

11

A187905

DIODE ELEMENT

BRIDGE - rectifier, alternator

1шт.

12

A187899

INNER SHIELD

SHIELD - alternator

1шт.

13

A187504

SCREW

BOLT - retaining, with washer, replaces A187907

2шт.

14

A187902

STATOR

STATOR ASSEMBLY - alternator

1шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BEARING - ball, rotor, collector ring end, replaces A187908

1шт.

16

A187900

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

17

A187901

FIXING PLATE

PLATE - bearing retaining

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING - ball, rotor, drive end

1шт.

3078897R1

SET OF PARTS

KIT - rotor retaining, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

RING - spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - lock, rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - rotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY - pulley retainer, not used in A187623 alternator

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - bearing retaining plate

1шт.

24

A186182

HOUSING

HOUSING - drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT - cover retaining

4шт.

26

221425R1

FAN

FAN - alternator

1шт.

27

J908560

PULLEY

PULLEY - alternator

1шт.

28

J908563

RETAINER

RETAINER - alternator pulley

1шт.
