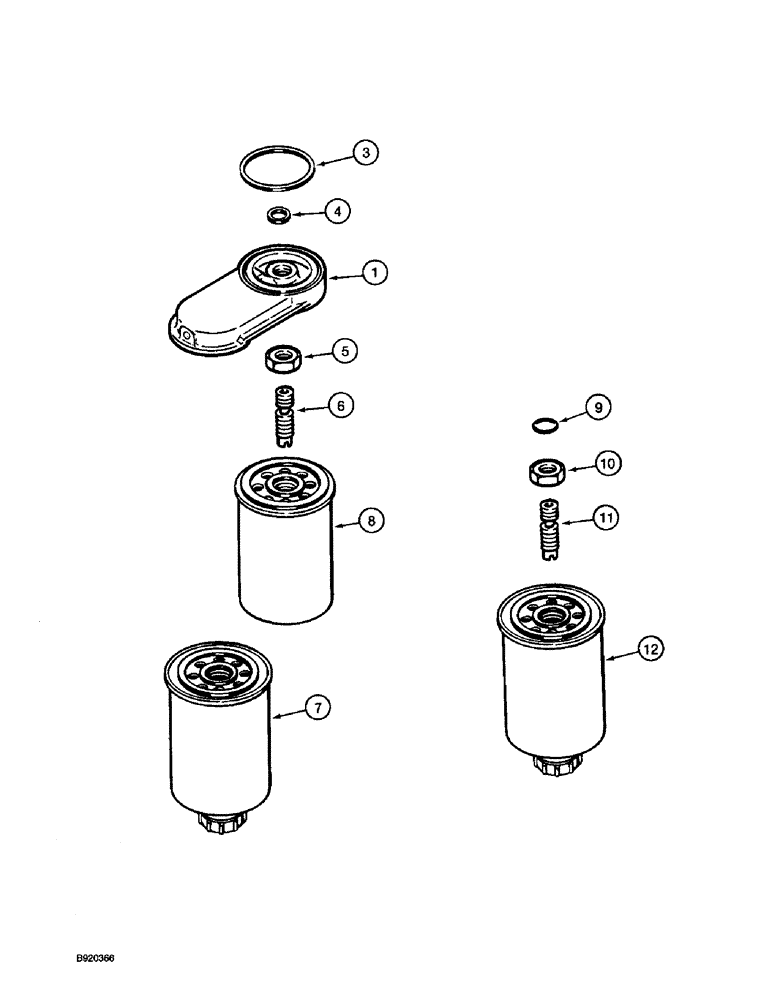

Запчасти Case 590 (3-12) - FUEL FILTER, 4T-390 ENGINE, A174349 ENGINE ASSEMBLY, PRIOR TO ENG. SER. NO. 44511034 (03) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD ASSEMBLY - fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, 16 mm - 2.0

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel

1шт.

7

J925274

FILTER, FUEL

FILTER - fuel, primary, replacles J903410

1шт.

8

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

9

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID, 1989071C2 engine assembly, engine serial number 44511034 and after

1шт.

10

J903293

JAM NUT

- hex, 16 mm - 2.0, 1989071C2 engine assembly, engine serial number 44511034 and after

1шт.

11

J903845

BANJO BOLT

ADAPTER - fuel, 1989071C2 engine assembly, engine serial number 44511034 and after

1шт.

12

J843760

FILTER

- fuel, replaces J903202 filter, 1989071C2 engine assembly, engine serial number 44511034 and after

1шт.
