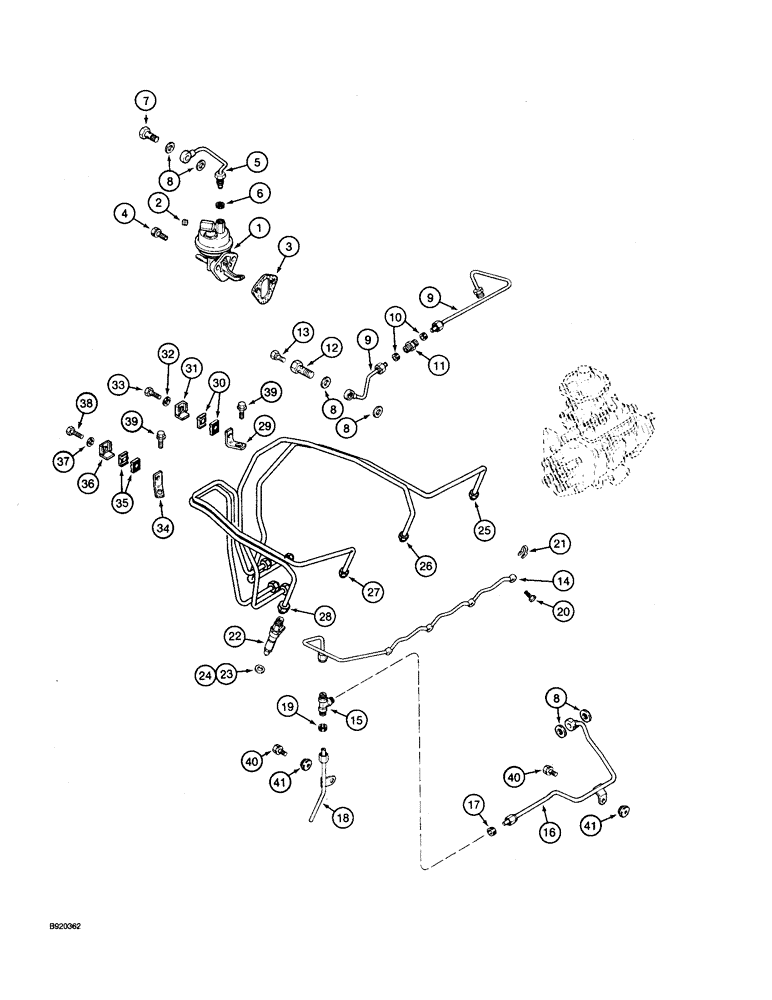

Запчасти Case 590 (3-10) - FUEL INJECTION SYSTEM, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J904374

PUMP

- lift, fuel

1шт.

2

221-841

PLUG

- square socket, 1/4 inch PT, fuel inlet

1шт.

3

J914304

GASKET

- fuel lift pump

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

TUBE ASSEMBLY - fuel, lift pump to filter, Includes: Ref. 6

1шт.

6

222-101

SLEEVE,3/16" Tube

- 3/16 inch tube O.D.

1шт.

7

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm

1шт.

8

J918191

PACKING RING

WASHER - sealing, replaces J903037

6шт.

9

J918640

FUEL TUBE

TUBE ASSEMBLY - fuel supply, two-piece, replaces J917564, Includes: Ref. 10 and 11

1шт.

10

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

2шт.

11

222-4

FITTING,9/16"-24, Flex Tube

CONNECTOR - compression, 5/16 inch tube O.D.

1шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex, special

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - hex, special, vent

1шт.

14

J909695

FUEL TUBE

TUBE - manifold, tee to fuel tank return

1шт.

15

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing (Remove and discard hex nuts before assembly)

1шт.

16

J905699

FUEL TUBE,4.76 mm OD

TUBE ASSEMBLY - fuel return, tee to fuel injector pump, Includes: Ref. 17

1шт.

Fuel tubes, Ref. 16 and 18, bolt to tappet cover, see figure 2-40 or 2-44, Ref. 23.

1шт.

17

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

18

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return, tee to fuel tank, Includes: Ref. 19

1шт.

Fuel tubes, Ref. 16 and 18, bolt to tappet cover, see figure 2-40 or 2-44, Ref. 23.

1шт.

19

222-101

SLEEVE,3/16" Tube

- for 3/16 inch tube

1шт.

20

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

21

J903380

SEAL

- connector

4шт.

22

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, see figure 3-16 and 3-18 for correct assembly

4шт.

23

J900808

SEAL

- injector, for 9 mm diameter tip, prior to Engine Serial Number 44559644

4шт.

24

J920174

PACKING RING

SEAL - injector, for 7 mm diameter tip, Engine Serial Number 44559644 and after

4шт.

25

J903480

FUEL TUBE,21 mm ID x 64 mm OD

TUBE ASSEMBLY - fuel injector, No. 1 cylinder

1шт.

26

J903481

FUEL TUBE,21 mm ID x 64 mm OD

TUBE ASSEMBLY - fuel injector, No. 2 cylinder

1шт.

27

J903482

FUEL TUBE,21 mm ID x 64 mm OD

TUBE ASSEMBLY - fuel injector, No. 3 cylinder

1шт.

28

J903483

FUEL TUBE,21 mm ID x 64 mm OD

TUBE ASSEMBLY - fuel injector, No. 4 cylinder

1шт.

A77484

SUPPORT ASSY.

BRACKET ASSEMBLY - injection supply tube No. 1 and 2, no longer available, order components separately, Includes: Ref. 29 - 33

1шт.

29

J919294

SUPPORT

BRACKET - fuel tubes No. 1 and 2

1шт.

30

J917746

CLAMP

- fuel tube

2шт.

31

CURJ904711

CLAMP

BRACE - clamp, fuel tube

1шт.

32

J903723

WASHER

- lock, 5 mm

1шт.

33

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

1шт.

A77485

SUPPORT ASSY.

BRACKET ASSEMBLY - injection supply tube No. 3 and 4, no longer available, order components separately, Includes: Ref. 34 - 38

1шт.

34

J919292

SUPPORT

BRACKET - fuel tube

1шт.

35

J917746

CLAMP

- fuel tube

2шт.

36

CURJ904711

CLAMP

BRACE - clamp, fuel tube

1шт.

37

J903723

WASHER

- lock, 5 mm

1шт.

38

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

1шт.

39

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special Hex Flg Hd, M8 x 1.25 x 25

2шт.

40

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

41

J900267

SEAL

- cover bolt

2шт.
