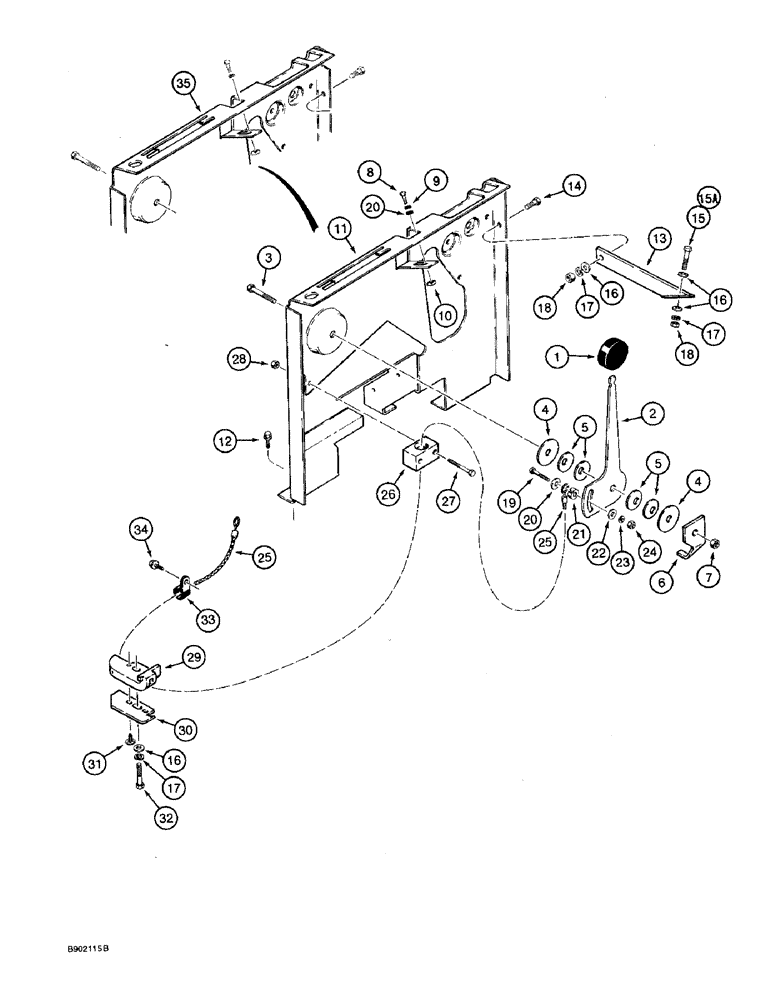

Запчасти Case 590 (3-06) - THROTTLE CONTROL LINKAGE, HAND CONTROL (03) - FUEL SYSTEM

1

A177435

BALL KNOB

KNOB - lever

1шт.

2

D135409

LEVER

- hand throttle

1шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

4

96-81005

WASHER,.521" x 2" x .134", HDN

- flat, 1/2 x 2 x 9/64 inch

2шт.

5

D148962

WASHER,12.7mm ID x 38.1mm OD x 1.19mm Thk

- spring, bellville type

4шт.

6

D149136

HOLDER

BRACKET - throttle lever

1шт.

7

231-1448

NUT,1/2"-13, GB

- light hex, self-locking, 1/2 inch NC

1шт.

8

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- square, 5/16 inch NC, if used

1шт.

11

D147161

SUPPORT

BRACKET - throttle control, no longer available, order 102963A1 bracket, Ref. 35

1шт.

12

112865A1

SCREW

BOLT - special, 5/16 NC x 13/16 inch

5шт.

13

D142395

LARGE PLATE

SUPPORT - throttle brace, mounts at hole in right fender

1шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, if used

1шт.

15a

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, if used

1шт.

16

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3-4шт.

17

492-11038

LOCK WASHER,3/8"

3шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

20

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1-2шт.

21

D124865

SPACER

- cable to throttle control lever

1шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

25

D150863

CABLE

- control, hand throttle (replaces D149124 cable)

1шт.

26

D148961

BLOCK

- guide, throttle cable

1шт.

27

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

2шт.

28

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

29

D148966

GUIDE

- throttle cable

1шт.

30

D149032

STOP LOCK

RETAINER -, Serial Range: cable-guide

1шт.

31

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - self-tapping, hex washer head, No. 10-24 x 3/8 inch

2шт.

32

276-24924

SELF-TAP SCREW,3/8" - 16 x 1 1/2"

BOLT - hex, self-tapping, 3/8 NC x 1-1/2 inch (replaces 409-7620)

1шт.

33

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- closed, 12.7 mm ID

2шт.

34

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

BOLT - hex washer head, self-tapping, 5/16 NC x 3/4 inch, replaces D141589

2шт.

35

102963A1

SUPPORT

BRACKET - throttle control

1шт.
