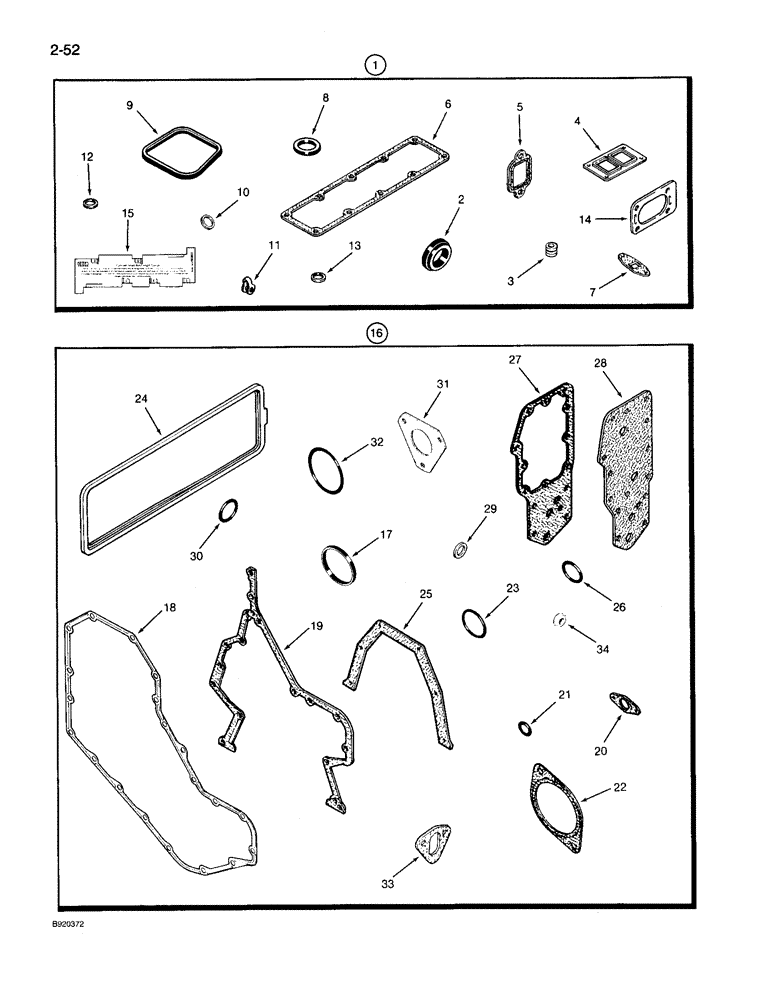

Запчасти Case 590 (2-52) - ENGINE GASKET KITS, 4T-390 ENGINE, VALVE GRIND KIT, CYLINDER (02) - ENGINE

1

A77792

GASKET KIT

KIT - gasket, valve grind, used prior to Engine Serial Number 44511034, engines with 9 mm fuel injector nozzle, replaces A77672, Includes: Ref. 2 - 15

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 2, figure 2-30.

1шт.

1

A77792

GASKET KIT

KIT - gasket, valve grind, Engine Serial Number 44511034 and after, engines with 7 mm fuel injector nozzle, Includes: Ref. 2 - 15

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 2, figure 2-30.

1шт.

2

J923331

GASKET

- thermostat housing, replaces J920020

1шт.

3

J901097

SEAL

- intake and exhaust valve guides

8шт.

4

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

6

J914028

GASKET

- intake manifold

1шт.

7

J914388

GASKET

- oil drain tube

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

1шт.

9

J902666

GASKET

SEAL - rocker cover

4шт.

10

J900808

SEAL

- injector, for 9 mm fuel injector nozzle

4шт.

11

J903380

SEAL

- connector

4шт.

12

J906659

SEAL

- injector, for 7 mm fuel injector nozzle, A77792 kit only, replaces J920174

4шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

- injector body, 7 mm, A77792 kit only

4шт.

14

J914856

GASKET,1.02mm Thk

- air crossover connection, A77792 kit only

1шт.

15

J823921

GAUGE

- bolt length, cylinder head, A77792 kit only

1шт.

16

A77671

GASKET KIT

KIT - gasket, engine block, ctlinder Includes: Ref. 17 - 34

1шт.

For complete engine overhaul, order (1) cylinder block kit, (1) valve grind kit, (1) oil pan kit, figure 2-28, front and rear crankshaft seal kit, figure 2-46, and required cylinder head gasket, figure 2-30.

1шт.

17

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover, cylinder block kit

1шт.

18

J914385

GASKET,1.02mm Thk

- front gear cover to housing, cylinder block kit

1шт.

19

J916131

GASKET

- timing gear housing, cylinder block kit

1шт.

20

J905595

GASKET

- timing pin housing, cylinder block kit

1шт.

21

J913994

O-RING

- sealing, timing pin, cylinder block kit

1шт.

22

J919601

GASKET

- accessory drive cover plate, replaces J913192, cylinder block kit

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump, cylinder block kit -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

24

J922078

GASKET

- tappet cover, replaces J904056, cylinder block kit

1шт.

25

J914386

GASKET

- seal retainer, crankshaft, cylinder block kit

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, water inlet connection, cylinder block kit

1шт.

27

J918256

GASKET

- cooler core, oil, cylinder block kit

1шт.

28

J918257

GASKET

- filter head, cylinder block kit

1шт.

29

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug, oil pan, cylinder block kit

1шт.

30

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, engine oil fill tube, cylinder block kit

1шт.

31

J914389

GASKET

- fuel injection pump mounting, cylinder block kit

1шт.

32

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block, cylinder kit

1шт.

33

J914304

GASKET

- fuel lift pump, cylinder block kit

1шт.

34

J900267

SEAL

- tappet cover bolt, cylinder block kit

4шт.
