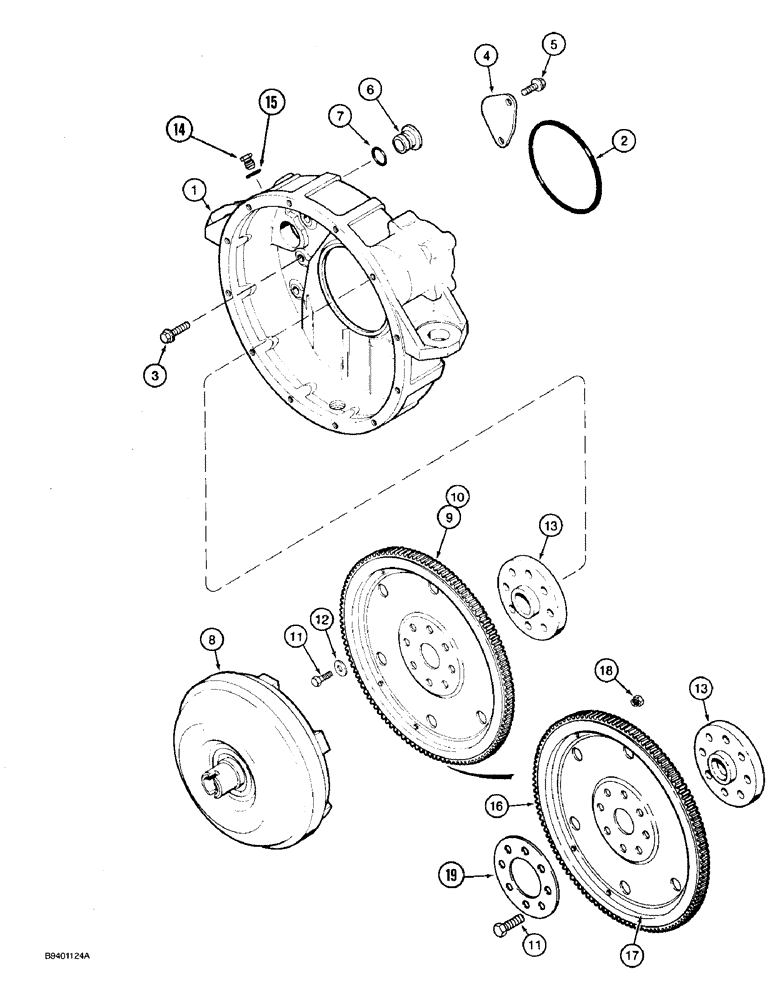

Запчасти Case 590 (2-48) - 4T-390 ENGINE (02) - ENGINE

1

J903287

CASE

HOUSING - flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING -, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

8шт.

4

J908095

PLATE

- cover

1шт.

5

J902735

BOLT,M8 - 1.25 x 21 mm

- hex, flange, plate retaining

2шт.

6

J910248

PLUG

- housing

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

8

REF

INSTRUCTION

CONVERTER - torque, without PTO, see Section 6

1шт.

8

REF

INSTRUCTION

CONVERTER - torque, with PTO, see Section 6

1шт.

9

J918961

FLYWHEEL

PLATE ASSEMBLY - flex, no longer available, for service order J922595 plate assembly, Ref. 16 - 18, Includes: Ref. 10

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - flex plate, 159 teeth

1шт.

11

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, M12 x 32

8шт.

12

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flex plate bolt, if used

8шт.

13

J913689

FLANGE

ADAPTER - crankshaft

1шт.

14

214389

PLUG,3/4" - 16 ORB

Includes Ref. 15 Hex Hd, 3/4"-16 ORB

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

J922595

FLYWHEEL

PLATE ASSEMBLY - flex, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - ring, flywheel

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE - flex

1шт.

18

NSS

NOT SOLD SEPARAT

NUT - sealing

6шт.

19

J904361

WASHER

RING - clamping, if used

1шт.
