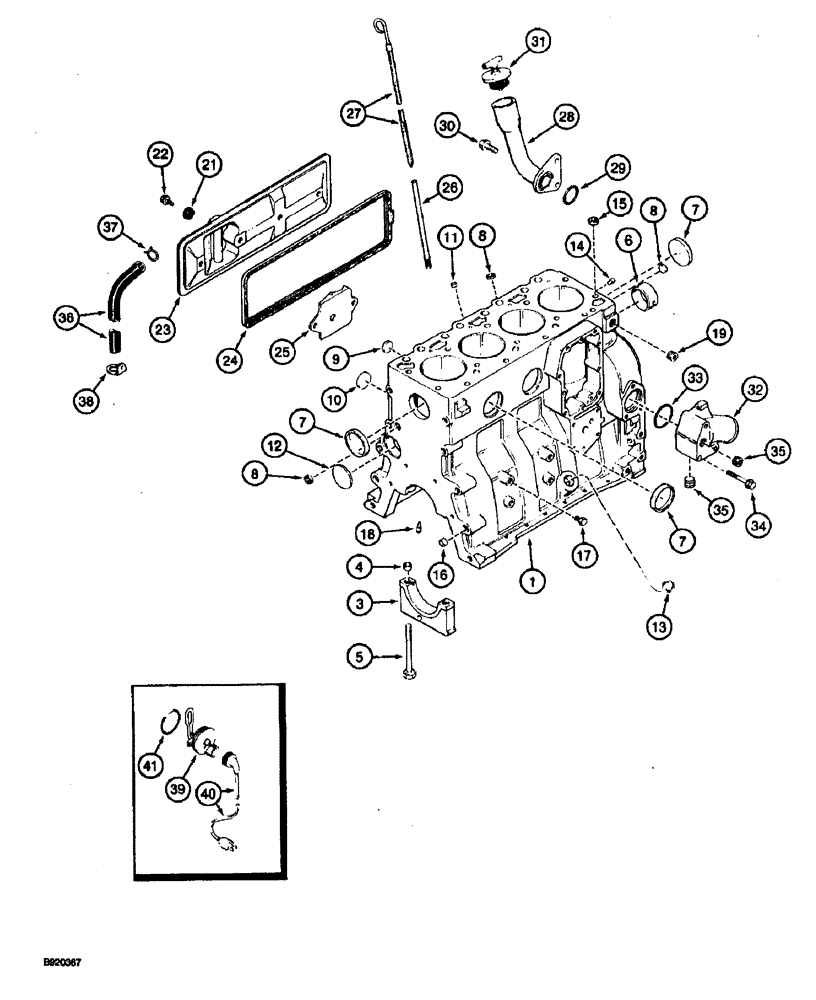

Запчасти Case 590 (2-38) - CYLINDER BLOCK, 4T-390 ENGINE, USES 9 MM FUEL INJECTOR NOZZLE, PRIOR TO ENG. SER. NO. 44511034 (02) - ENGINE

A174349

ENGINE

ENGINE ASSEMBLY - 4T-390 standard, uses 9 mm fuel injector nozzle, complete includes all parts except: starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, no longer available, for service order 1989092C2 basic engine assembly, see f

1шт.

A174352

BASIC ENGINE

ENGINE ASSEMBLY - basic, includes all parts except: starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, belt te

1шт.

1989092C3R

REMAN-BASIC ENGINE

Includes all parts except: starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, belt te

1шт.

1989092C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

JR905378

BLOCK

Block Assembly - short, engine, remanufactured

1шт.

JC905378

CORE-ENGINE

Return Part Number - use this part number to return short block core for credit

1шт.

J920387

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, replaces J905378, Includes: Ref. 3 - 9

1шт.

Order J905813 hardware kit when ordering J920387 block assembly or J904989 stripped block.

1шт.

JR933236

REMAN-SHORT ENGINE

1шт.

JC933236

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J904989

CRANKCASE

BLOCK ASSEMBLY - stripped, engine, no longer available, for service order J916254 block assembly, Ref. 1, figure 2-42, Includes: Ref. 3 - 9

1шт.

Order J905813 hardware kit when ordering J920387 block assembly or J904989 stripped block.

1шт.

3

J900967

BEARING CAP

CAP - main bearing

5шт.

4

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

10шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

10шт.

6

REF

INSTRUCTION

BUSHING - camshaft, front, see figure 2-36, Ref. 2

1шт.

7

A77782

PLUG

PLUG - expansion, 58 mm O.D., replaces J900965

4шт.

8

J900956

PLUG

PLUG - expansion, 18 mm O.D.

3шт.

9

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Expansion, Replaces A77539 Cup, 1", Stainless

2шт.

J905813

PACKAGE, REPAIR

KIT - block hardware, Includes: Ref. 10 - 19

1шт.

Order J905813 hardware kit when ordering J920387 block assembly or J904989 stripped block.

1шт.

10

J900958

PLUG

PLUG - expansion, 32 mm O.D.

2шт.

11

J900955

PLUG

PLUG - expansion, 10 mm O.D.

1шт.

12

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, Welch, 60 mm O.D., replaces J900687

1шт.

13

A77439

PLUG

PLUG - expansion, camshaft, 22 mm O.D.

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm long

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm O.D.

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

2шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

2шт.

18

J901020

NOZZLE CAP

NOZZLE - piston cooling

4шт.

19

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

21

J900267

SEAL

SEAL - cover bolt

4шт.

22

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

4шт.

23

J916441

COVER

COVER - tappet, replaces J905023

1шт.

24

J922078

GASKET

GASKET - tappet cover, replaces J904056

1шт.

25

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

26

J905779

TUBE,9.52 mm OD x 228 mm L

TUBE - engine oil dipstick

1шт.

27

J905781

DIPSTICK

DIPSTICK - oil level gauge

1шт.

28

J905440

TUBE

TUBE - oil fill

1шт.

29

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, 38 mm ID

1шт.

30

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - heavy hex flange, 12 - 1.75 x 25mm

2шт.

31

A77424

FILLER CAP

CAP - fill, oil

1шт.

32

J903102

CONNECTION

CONNECTION - water inlet

1шт.

33

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

34

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.50 x 75 mm

3шт.

35

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

36

J906593

HOSE

Breather

1шт.

37

J904230

CLAMP,25.4mm

CLAMP - spring, hose

1шт.

38

J909670

CLIP

CLIP - retaining

1шт.

A77634

KIT

KIT - engine block heater, Includes: Ref. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

HEATER - engine block

1шт.

40

J905113

CABLE

CABLE - engine block heater

1шт.

41

J910517

O-RING

O-RING - heater sealing

1шт.
