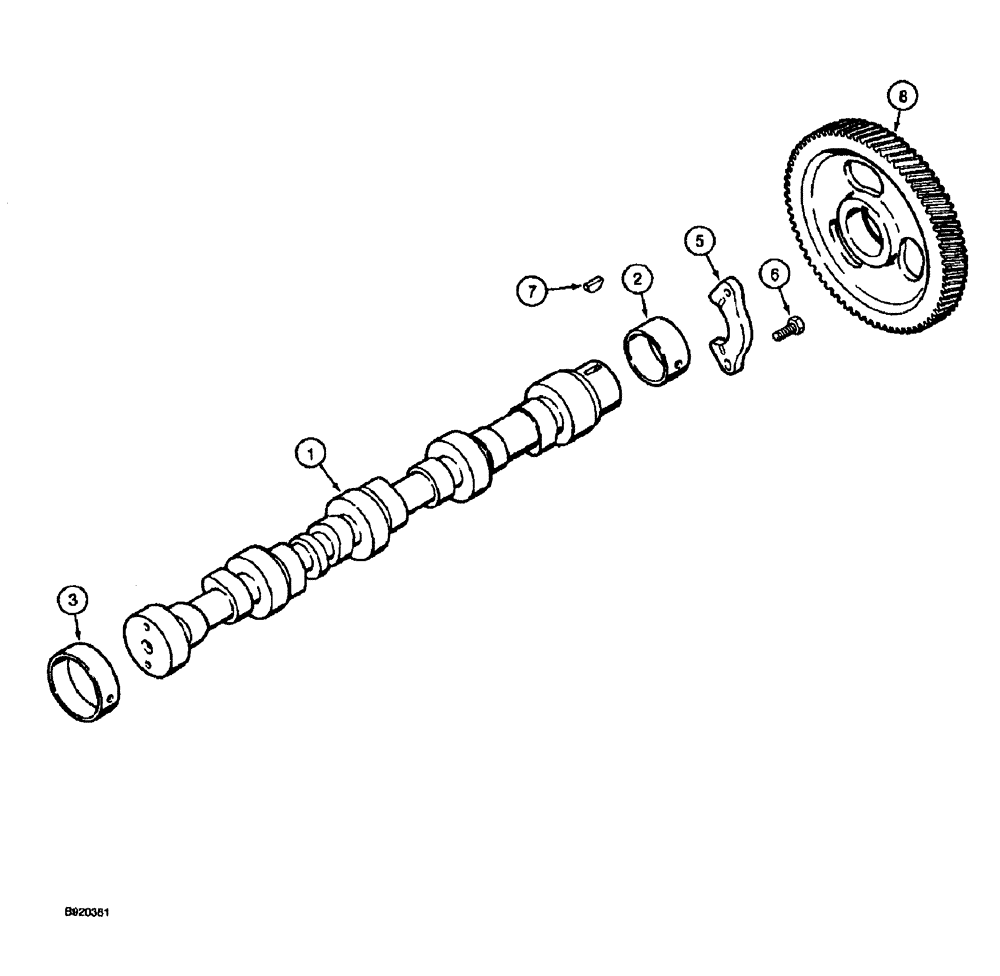

Запчасти Case 590 (2-36) - CAMSHAFT, 4T-390 ENGINE (02) - ENGINE

1

J925582

CAMSHAFT

- engine, replaces J914638

1шт.

J929039R

REMAN-CAMSHAFT

590, Reman For New P/N J925582

1шт.

J929039C

CORE-CAMSHAFT

Return Number

1шт.

2

J901306

BUSHING

- camshaft, front, standard

1шт.

2

J904369

BUSHING

- camshaft, front, oversize, 58 mm O.D.

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

- camshaft, intermediate and rear, service repair only

4шт.

When the intermediate and rear cylinder block camshaft bores are reamed in engine repair, order and install Ref. 3, J903242 bushings shown above.

1шт.

5

J914641

SUPPORT

- thrust, camshaft

1шт.

6

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

7

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Camshaft gear, replaces J902332 #6, 5/32" x 5/8", HT

1шт.

8

J907431

CAMSHAFT BEARING

GEAR - camshaft

1шт.
