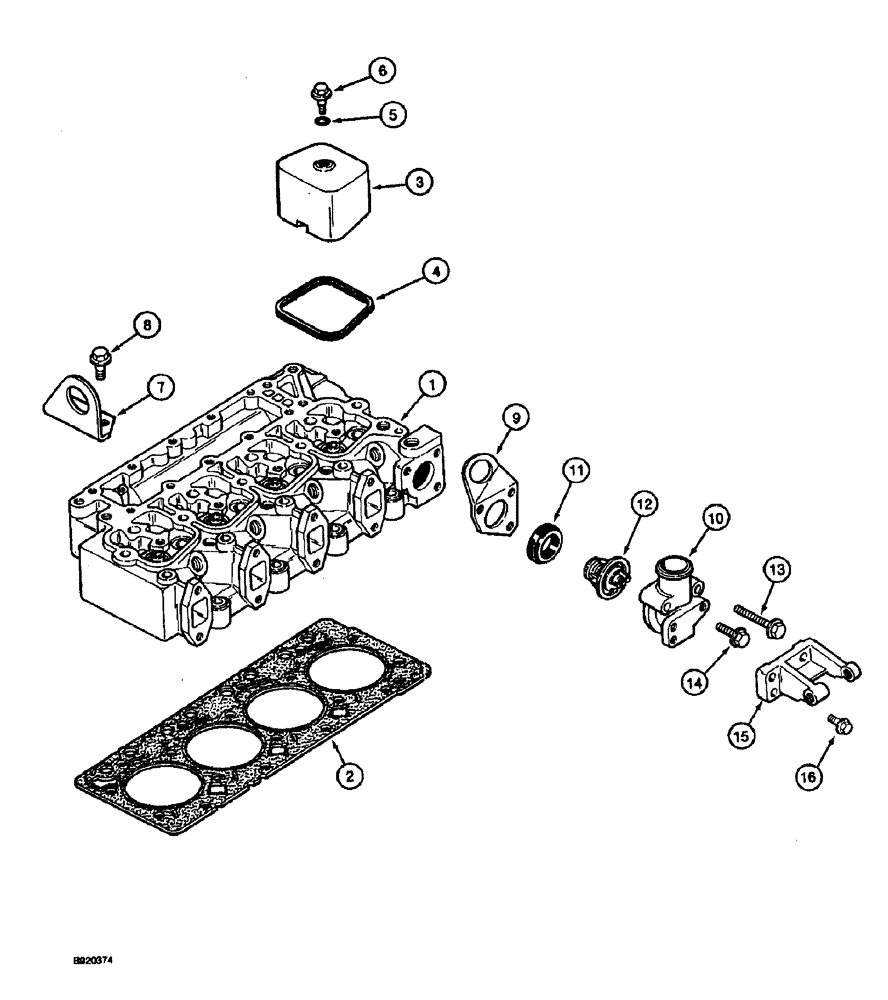

Запчасти Case 590 (2-30) - CYLINDER HEAD AND COVERS, 4T-390 ENGINE, THERMOSTAT AND (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, engine, see figure 2-32 and 2-34 for correct cylinder head assembly and component parts

1шт.

2

J921393

GASKET

- cylinder head, standard, replaces J918302 and A77754 gasket

1шт.

2

J921395

CYLINDER HEAD GASKET

- cylinder head, 0.25 mm thicker, replaces J917355 and J918303

1шт.

2

J921397

GASKET

- cylinder head, 0.5 mm thicker, replaces J915721 and J918304

1шт.

3

J902604

COVER

- rocker arm

4шт.

4

J902666

GASKET

SEAL - rocker arm cover

4шт.

5

J282133

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, replaces J910824

4шт.

6

J907049

BOLT,Hex

- hex flange, special

4шт.

7

J908118

BRACKET

- lifting, rear, see page 2-15 for mounting to exhaust manifold

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

9

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

10

J914409

HOUSING

- thermostat

1шт.

A77736

THERMOSTAT

KIT - water thermostat, Includes: Ref. 11 and 12, and housing

1шт.

11

J923331

GASKET

- thermostat housing, replaces J920020

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT - water, and housing

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm, Thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat and housing

1шт.

15

J923387

SUPPORT

- alternator mounting, replaces J910713, thermostat and housing

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm,Tthermostat and housing

3шт.
