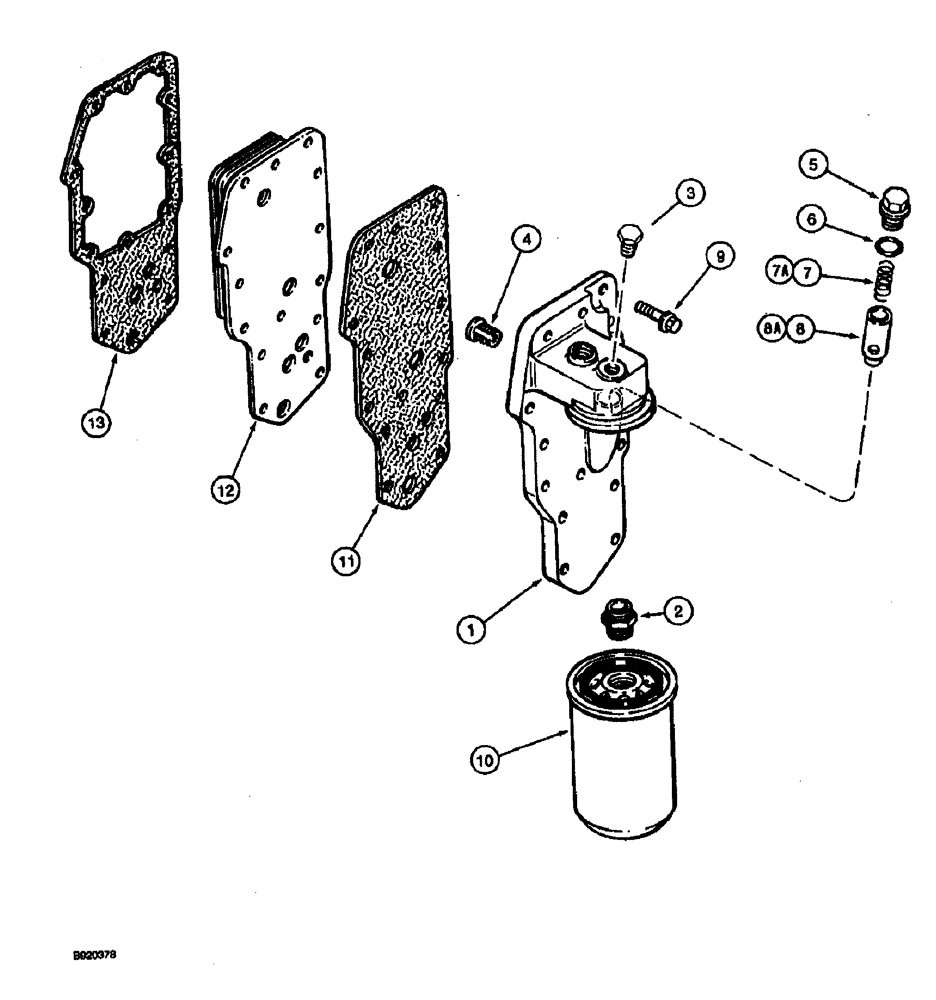

Запчасти Case 590 (2-26) - OIL FILTER AND COOLER, 4T-390 ENGINE (02) - ENGINE

J915243

FILTER COVER

HEAD ASSEMBLY - oil filter and cooler, prior to Engine Serial Number 44475085, no longer available, for service order J918954 head assembly, Includes: Ref. 1 and 2

1шт.

J918954

HEAD

ASSEMBLY - oil filter and cooler, Engine Serial Number 44475085 and after, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - oil filter and cooler

1шт.

2

J909355

ADAPTER

- filter head

1шт.

3

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

1шт.

4

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

5

J915787

PLUG

- pipe

1шт.

6

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.

7

J903261

SPRING

- compression, 55-13/16 mm free length, 17 coils, no longer used, must replace with J918427 spring, Ref. 7A, and J918428 plunger, Ref. 8A

1шт.

7a

J918427

SPRING

- compression, 54 mm free length, 16-1/2 coils

1шт.

8

J914084

VALVE

PLUNGER - regulator, pressure, one hole, no longer used, must replace with J918428 plunger, Ref. 8A, and J918427 spring, Ref. 7A

1шт.

8a

J918428

PLUNGER

- regulator, pressure, two hole

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

14шт.

10

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

FILTER - engine oil (cartridge)

1шт.

11

J918257

GASKET

- filter head

1шт.

12

J921557

COOLER

CORE - cooler, oil, replaces J918292

1шт.

13

J918256

GASKET

- cooler core

1шт.
