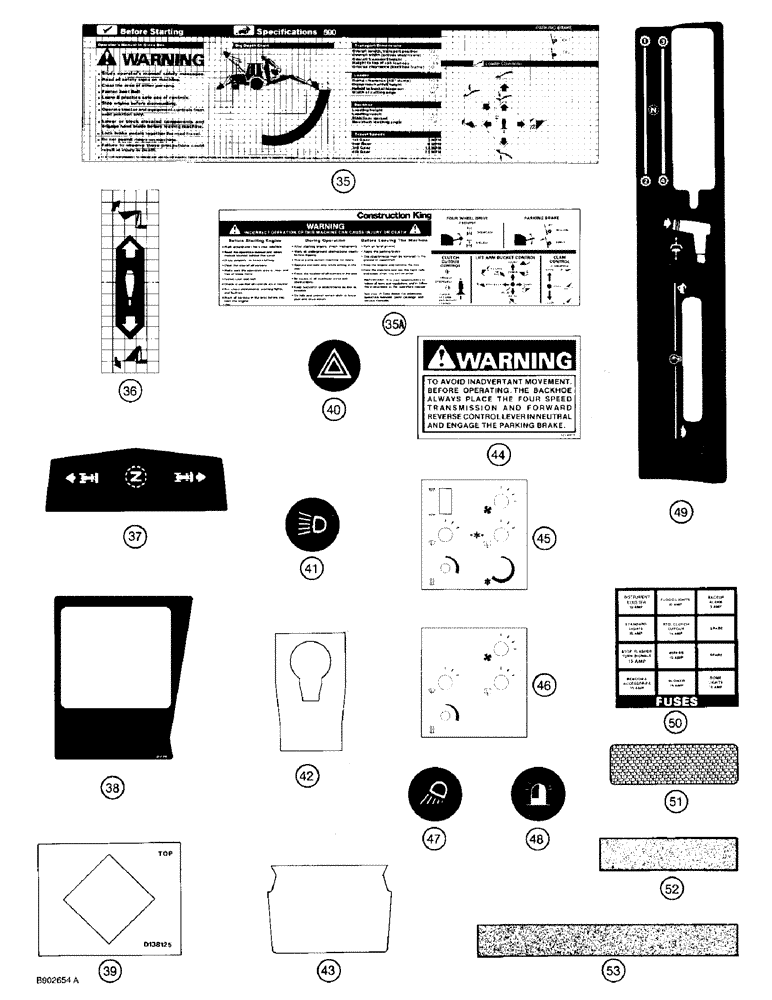

Запчасти Case 590 (9-150) - DECALS (09) - CHASSIS/ATTACHMENTS

35

D147743

DECAL

- Warning, before starting engine study operator's manual messages/dig depth specs/loader control pattern, front instrument panel, storage compartment, used with Ref. 36 and 59 on figure 9-152, no longer available, order D150832 decal, Ref. 35A

1шт.

35a

D150832

DECAL

- Warning, before starting engine study operator's manual messages/dig depth specs/loader control pattern, front instrument panel, storage compartment, also includes 4 wheel drive engagement and clam bucket control

1шт.

36

D147981

DECAL

- clam bucket control pattern, front instrument panel, storage compartment, if used

1шт.

37

D137615

DECAL

- shuttle shift lever control pattern, on steering column cover

1шт.

38

D137399

DECAL

- at loader control lever boot, front console, if used

1шт.

39

D138125

DECAL

- transparent green, under turn signal arrow symbols

2шт.

40

D141643

DECAL

- flasher lamp symbol, front console switch plate

1шт.

41

D137272

DECAL

- driving lamp symbol, front console switch plate

1шт.

42

R53911

DECAL

- left-hand cab console, upper, at cup holder, if used

1шт.

43

R53912

DECAL

- left-hand cab console, lower

1шт.

44

D150899

DECAL

- Warning, to avoid inadvertant movement before operating the backhoe (replaces 321-6958 decal)

1шт.

45

97300C2

DECAL

- instrument symbols, heater, air conditioner, blower, wipers, and dome lamp, cab control panel, models with air conditioning

1шт.

46

97301C2

DECAL

- instrument symbols, heater, blower, wipers, and dome lamp, cab control panel, models without air conditioning

1шт.

47

D137273

DECAL

- optional work lamp symbol, right-hand console switch plate

1шт.

48

D137279

DECAL

- rotating beacon symbol, right-hand console switch plate

1шт.

49

D140826

DECAL

- hand throttle control pattern, right-hand side console

1шт.

50

D148058

DECAL

- fuse location, fuse box cover

1шт.

51

D87870

DECAL

REFLECTOR - red

2шт.

52

D55216

PAD,2" x 9"

STRIP - anti-skid

6шт.

53

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID, Operators compartment

1шт.
